Plc Auto Blow Molding Machine For Ice Lolly Pipe / Fruit Jelly Container
|Place of Origin:||Hebei, China|
|Model Number:||SQ-4, 6, 8|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Angle frame with outside wooden case|
|Delivery Time:||45 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||30 sets/month|
|Name:||Ice Lolly Pipe Blow Molding Machine, Fruit Jelly Container Blow Molding Machine||Heating Power:||7.5kW|
|Die Head Heating Power:||1kW||Plastic Processed:||PE/PP/EVA|
|No. Of Molds:||4/6/8/12||Certification:||CE ISO9001|
plc auto blow molding machine,
jelly container auto blow molding machine,
plc large blow molding machine

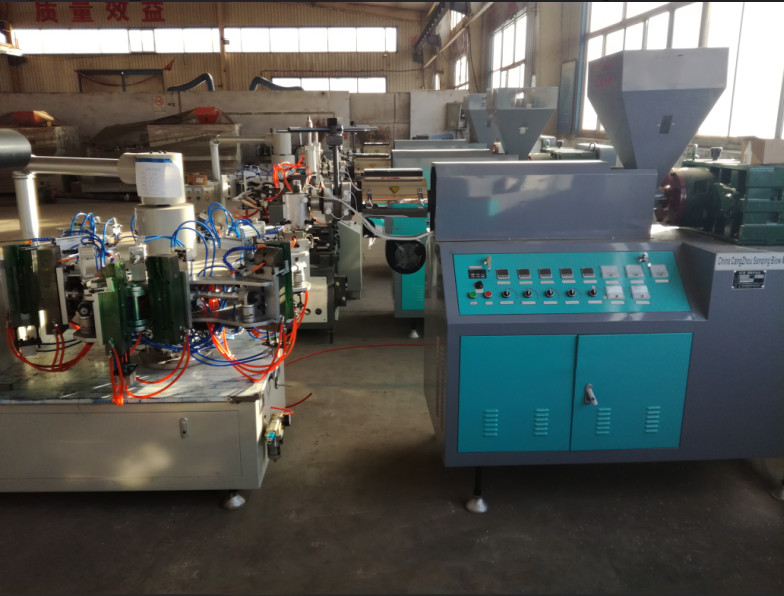

Ice Lolly Pipe Blow Molding Machine, Fruit Jelly Container Blow Molding Machine
As a company focus on the blow molding machine for more than two decades, this type of rotary machine is one of our traditional products.
This type of machine has been tested in the market throughout the years, and it has gained good feedbacks from almost all of our customers.
As for the machine is one of our most traditional product, we're honored to say that we provide the best rotary blow molding machine in the world. And our machines are able to be used for ten years. Please contact us for further information.
|Max. Bottle Containment||800ml|
|Productive capacity||3000 PCS/hour (ice pops )|
|Allowed Mould width||125mm|
|Allowed Mould Thickness||118mm|
|Blowing Air pressure||0.4-0.7Mpa|
|Average Running Power||7kw|
|Extruder Screw Diameter||55mm|
|Size of Main Frame(L.W.H)||3300×1200×1500mm|
This 6molds blow molding machine is PLC control , easy operate. The PLC can English languge.
- connected style: the blower and extruder is connected to be a whole machine;
- separate style: the blower and extruder is separate to be two separate machines;
- PLC style: the blower and extruder is conneceted and controlled by PLC touch screen.
