Product Name

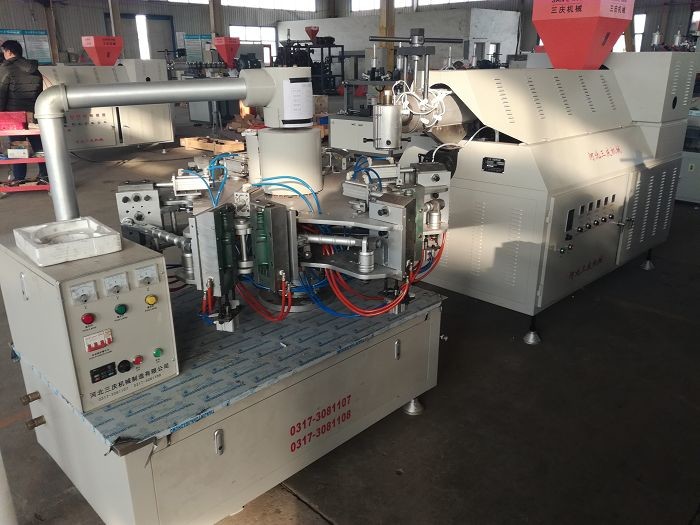

Rotational Fruit Jelly Bottles Blowing Machine, Blow Molding Machine for Ice lolly
Our rotational machine is the fastest machine to produce LDPE products, because our machines are using 4 molds, 6 molds, 8 molds, 10 molds, 12 molds to produce at the same time. The production capacity of 6 molds machine could reach 3000 pieces per hour. 10 moulds machine could reach 5000 pcs per hour.
10 moulds machine are deisgned for produce ice lolly tubes and some LDPE products.
We provide different level of price to cater customer demand, we have connected type(extruder and blower), separate type(extruder and blower not connected), full automatic type, semi-automatic type of machines. We also have devices to de-flashing the waste part of bottle.
Main Components:
1. Gear Box
2. Frequency Control Inveter
3. Pneumatic Power
4. Temperature Controller
5. Moulds
6. Proximity Switch
7. Air Cylinders
8. Motors for extruder and Rotator
9. Screw from extruder
|
Model Parameters |
4 work station | 6 work station | 8 work station |
| Max. Volume of Bottle(ml) | 1000 | 1500 | 1500 |
| Max. Dia. Of Bottle(cm) | 7 | 10 | 10 |
| Productive capacity(pcs/hour) | 500-7000 | 1000-8000 | 1500-8000 |
| Mould Size (L, W, H) (mm) | 118x120x350 | 118x120x350 | 118x120x350 |
| Motor Power(KW) | 0.75 | 1.1 | 1.5 |
| Air Consumption(m3/Min) | 0.4 | ||
| Product Weight(KG/Hour) | 400 | 800 | 1000 |
| Dimension(L, W, H)(mm) | 1400x1000x1400 | 1600x1200x1500 | 1900x1700x1400 |
| Applicable Raw Material | PE, PP, PVC | ||
| Speed regulating method | Frequency control of motor speed | ||
