Product Name
Fruit Shape Jelly Tube Making Machine, Blow Molding Machine For Ice Lolly
1: This machine adopts screw extruding blow molding process
2: It is controlled by PLC (computer), high precision.
3: SQ-4 4 molds blow moulding machine: save energy, high production capacity, easy to operate
4: It achieved CE certificate

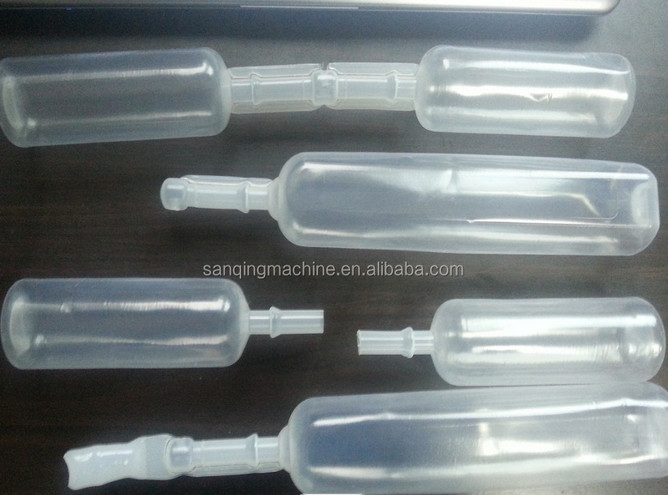

5: It can produce LDPE soft package products,like:ice pop tube, jelly,toothpick container, pipette, transfer dropper etc.
it also can make HDPE bottle , milk bottle ,yoghurt bottle, medicine bottle, pesticide bottle.
6: We also can share some videos with you.
Our Rotary blow molding machine could produce with very high speed output, each hour can reach 3000 pieces of lolly tubes. 5000 pieces of pipette droppers. 1000 pieces above of the milk yogurt juice bottles;
| Max. Bottle Containment | 800ml |
| Productive capacity | 3000 PCS/hour (ice pops ) |
| Allowed Mould width | 125mm |
| Allowed Mould Thickness | 118mm |
| Blowing Air pressure | 0.4-0.7Mpa |
| Rated Power | 15kw |
| Average Running Power | 7kw |
| Extruder Screw Diameter | 55mm |
| Plasticizing Capacity | 40KG/Hour |
| Size of Main Frame(L.W.H) | 3300×1200×1500mm |
| Weight | 1500kg |

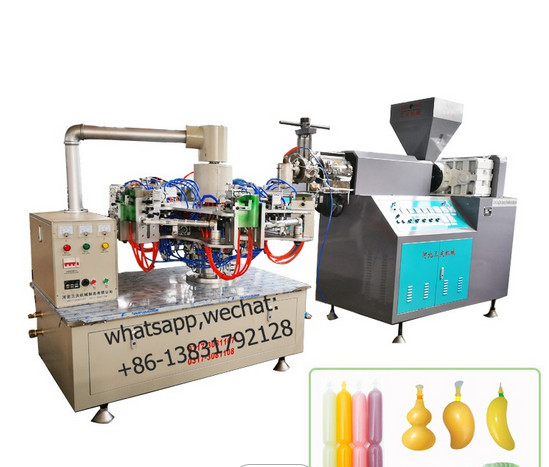

This 6molds blow molding machine is PLC control , easy operate. The PLC can English languge.

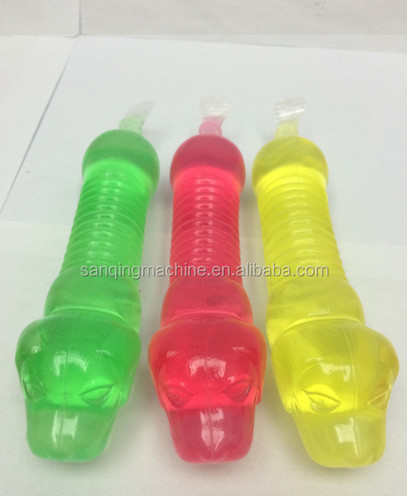

It can produce ice pop tube , ice lolly, jelly soft bottle. The PLC machine produce ice pops can full automatic.
After Sales Service: buyer should pay for all fees for flight, accommodation and etc, seller could come to buyers’ factory to install and adjust machine. Engine cost is USD80/Day.
Warrenty: We warranty the quality of this machine for 12 months, if there is any problem with the machine, or any main parts are broken, we will repair it or replace new for free.
We have three styles of rotary blow molding machine:
