6 Cavities Double Stations 5 Liter Blow Moulding Machine Automatic

6 Cavities Double Stations 5 Liter Blow Moulding Machine Automatic

Product Details:

Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO9001
Model Number: SQ-11

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Supply Ability: 10 sets/month
Get Best Price Contact Now

Detail Information

Product Name: Sanqing 6 Cavities Double Stations Blow Molding Machine Spru. Diameter: 110mm
Automation: Automatic Certification: CE, ISO9001
Voltage: 380V Dimension: 3400*2100*2200mm
High Light:

double stations 5 liter blow moulding machine

,

automatic 5 liter blow moulding machine

,

automatic 6 cavity blow moulding machine

Product Description

Product Name
Sanqing 6 Cavities Double Stations Blow Molding Machine

Product Description

This machine is suitable to produce bottles max. 5 Liters. Double stations single die head. It is equipped with auto deflashing
devices. the extra material could be cut automatically. Cusotmers could choose to add with parison controller, which could
control the thickness very well. Each hour, it could produce 200-300 pcs bottles.

The machine is controlled by a PLC system, the operator could set up parameters by the LCD monitor.

Besides, customers could choose to add a view strip for the bottles.



Specification
SPECIFICATIONS FOR BLOW MOLDING MACHINE
System
Item
Unit
Basic Parameters
Basic
Plastic fit for

PE/PP
Max hollow product volume
L
5
No. of Die head
SET
1
Size(LxWxH)
M
3.5*2.1*2.2
Weight
TON
5
No. of Working Station
Set
2
Molds
Clamping Force
KN
120
Template Distance
MM
220--620
Template Stroke

400
Max template size(WxH)
MM
480*500
Mould thickness
MM
225—300
Extrusion System
screw diameter
MM
75
Clading layer
MM
45
Clading layer
MM
45
Screw L/D ratio
L/D
25:1
(HDPE)Plasticizing capacity
KG/H
70
Screw heating zone
ZONE
4
Screw heating power
KW
16
Extrusion motor's power
KW
22
Die head
Die head heating zone
zone
3
Die head heating power
KW
9
Sprue-die dia.(max)
mm
180
Oil-pump motor power
KW
11
air pressure
Mpa
0.6--0.8
Average power
KW
35
Compressed air dosage
m³/min
1.5--2.5
Cooling water dosage
L/min
3--5

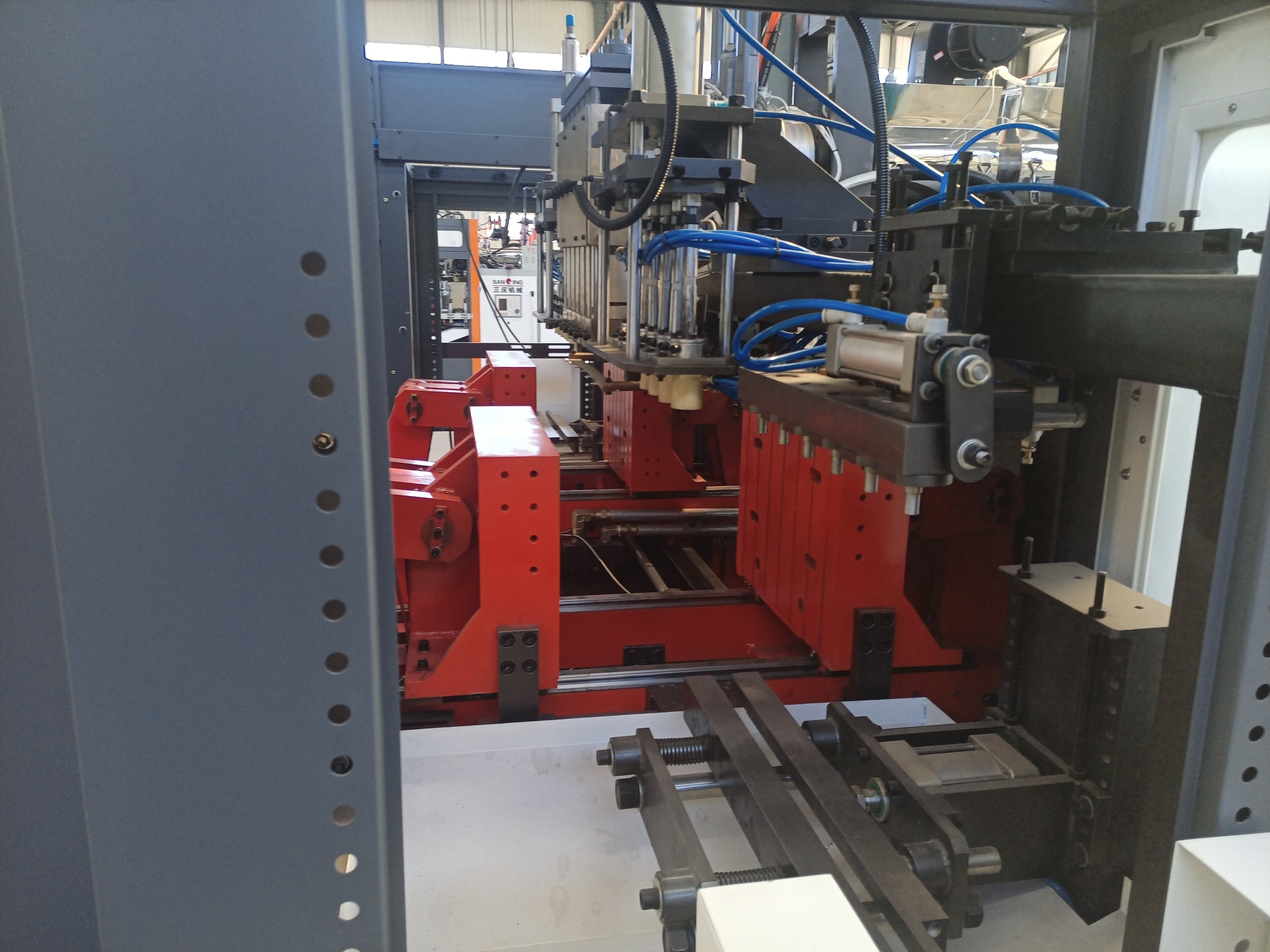

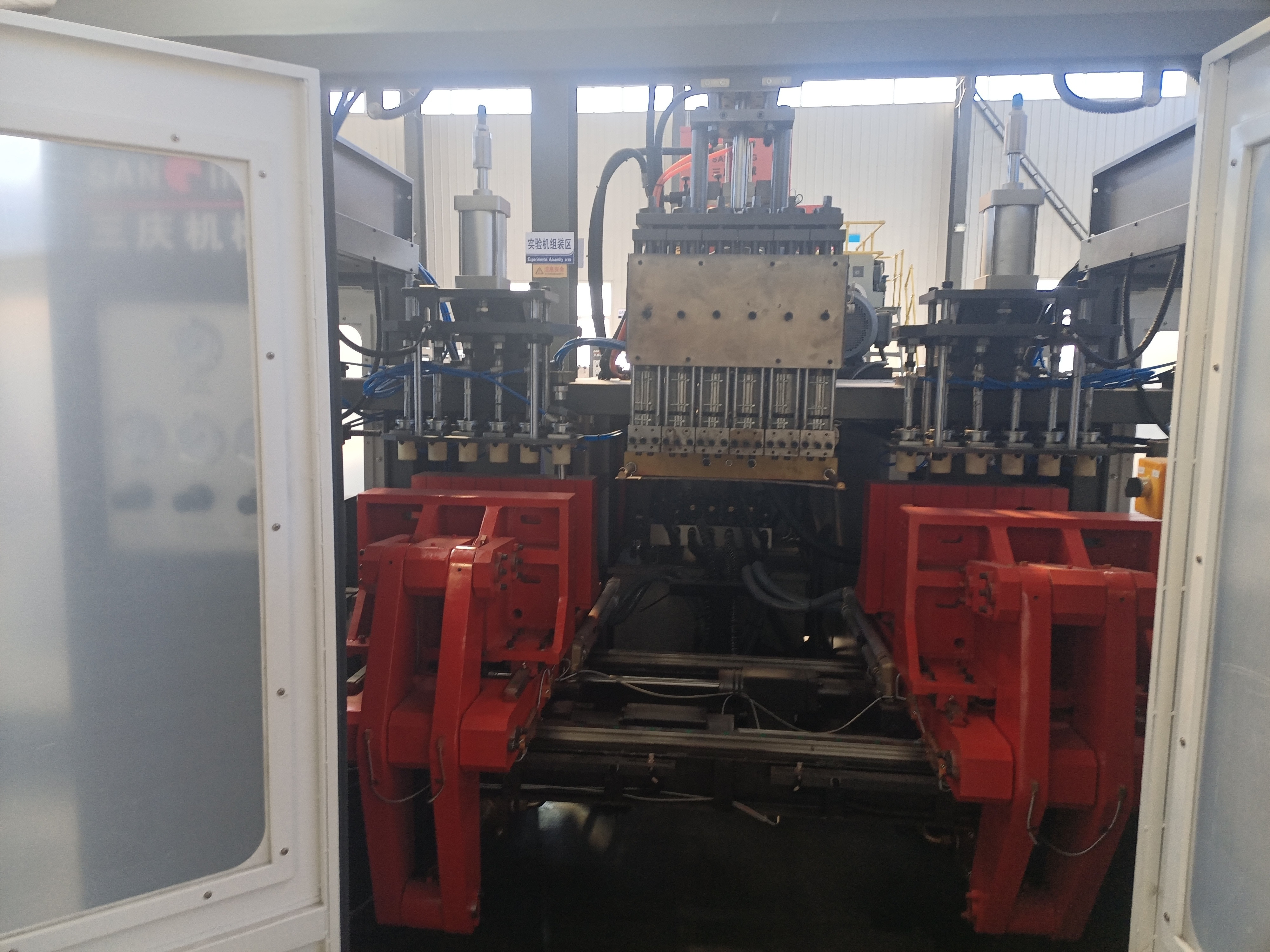

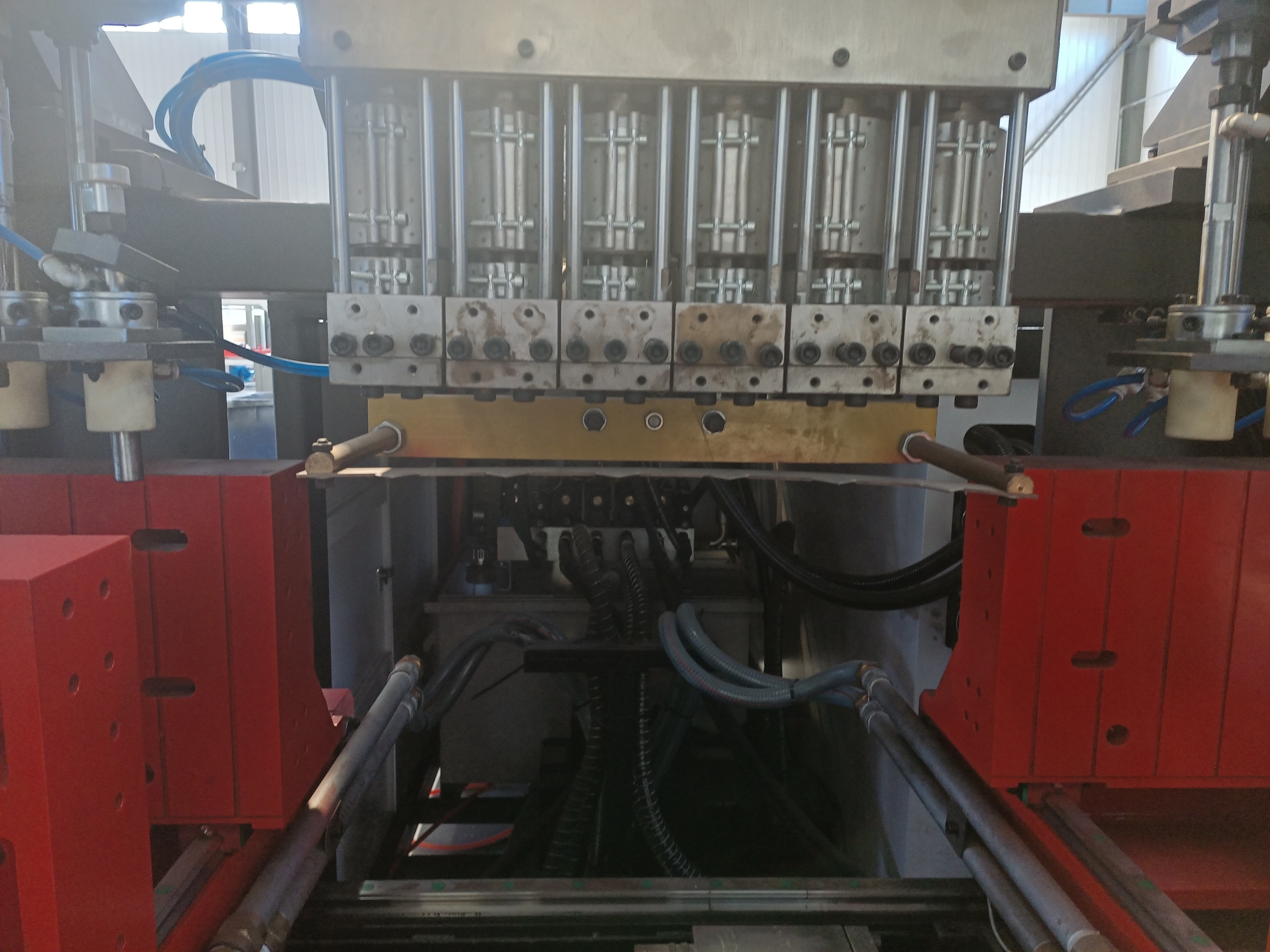

Details Images

6 Cavities Double Stations 5 Liter Blow Moulding Machine Automatic 0
