TPU Automatic Bottle 5 Liter Blow Moulding Machine 70kg/H 3.5*2.1*2.2m

1 set
MOQ
TPU Automatic Bottle 5 Liter Blow Moulding Machine 70kg/H 3.5*2.1*2.2m
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: PE/PP/TPU Automatic Hydraulic Blow Molding Machine, Bottle Making Machine
Condition: New
Warranty: 1 Year
Automation: Automatic
Voltage: 380V
Dimension: 3400*2100*2200mm
High Light:

TPU 5 Liter Blow Moulding Machine

,

automatic blowing machine 3.5*2.1*2.2m

,

Automatic Bottle Blowing Machine 70kg/h

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO9001
Model Number: SQ-11
Payment & Shipping Terms
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Supply Ability: 10 sets/month
Product Description
Product Name
PE/PP/TPU Automatic Hydraulic Blow Molding Machine, Bottle Making Machine

Product Description

1: Hydraulic blow molding machine can make cutting mouth bottle and shooting mouth bottle.
2: It is suitable to make the plastic engine oil bottle, laundry bottle,wine bottle,plastic bucket,plastic tool box and HDPE milk bottle etc, also TPU products is OK.
3: Full automatic : full automatic cutting top and bottom . no need people.
4: PLC control , high precision.
5: Can 2,3 or 4 bottle in one mold, high production capacity
6: Double working stations, more stable
7: The plastic child bike spareparts also can be made by hydraulic blow molding machine
8: The max.volume is 5L, double working stations

Extrusion blow molding machine technical feature:

The electronic control system: Japan's Mitsubishi PLC computer and human-machine interface (English or Chinese) control, color touch-screen operation. All the process set to change, retrieval, monitoring, troubleshooting and other functions are implemented on the touch screen, no point of contact with the working principle, components and durable.

The hydraulic system: proportional pressure control, with imported brands Yuken hydraulic components, stable and reliable.

The plasticizing system: efficient plastics mixing screw, to ensure plasticizing full uniform.

The speed control system: alloy steel and hard gear reducer, speed stable, low noise, durable.

The opening and closing mold, mold transfer system: beam arm, three position, center locking clamping mechanism, to ensure long-term use. Clamping force balance, no deformation, the use of body translation mode (ball linear guide), high precision, low resistance, fast.




Specification
SPECIFICATIONS FOR BLOW MOLDING MACHINE
System
Item
Unit
Basic Parameters
Basic
Plastic fit for

PE/PP
Max hollow product volume
L
5
No. of Die head
SET
1
Size(LxWxH)
M
3.5*2.1*2.2
Weight
TON
5
No. of Working Station
Set
2
Molds
Clamping Force
KN
120
Template Distance
MM
220--620
Template Stroke

400
Max template size(WxH)
MM
480*500
Mould thickness
MM
225—300
Extrusion System
screw diameter
MM
75
Clading layer
MM
45
Clading layer
MM
45
Screw L/D ratio
L/D
25:1
(HDPE)Plasticizing capacity
KG/H
70
Screw heating zone
ZONE
4
Screw heating power
KW
16
Extrusion motor's power
KW
22
Die head
Die head heating zone
zone
3
Die head heating power
KW
9
Sprue-die dia.(max)
mm
180
Oil-pump motor power
KW
11
air pressure
Mpa
0.6--0.8
Average power
KW
35
Compressed air dosage
m³/min
1.5--2.5
Cooling water dosage
L/min
3--5

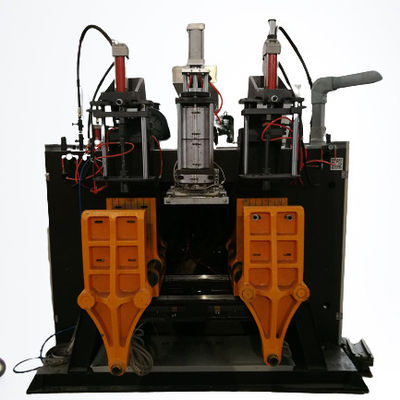

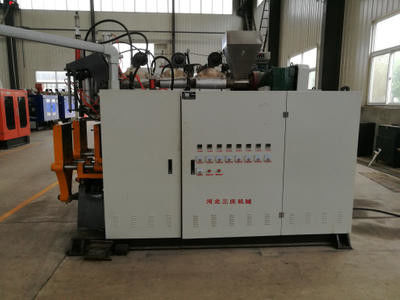

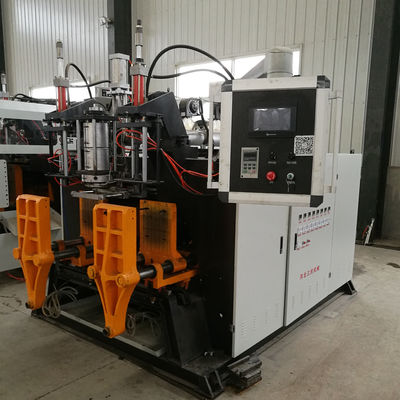

Details Images

TPU Automatic Bottle 5 Liter Blow Moulding Machine 70kg/H 3.5*2.1*2.2m 0
