ISO9001 25L Double Station Blow Molding Machine 30kW 240kN
Product Details:
| Place of Origin: | Hebei, China |
| Brand Name: | Sanqing |
| Certification: | CE ISO9001 |
| Model Number: | SQYY-11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Angle frame with outside wooden case |
| Delivery Time: | 45 days |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | SQ 25L Hydraulic Hollow Blow Molding Machine, Bottle Making Machine, Bottle Blowing Machine | Screw Diameter: | 80mm |
|---|---|---|---|
| Plastic Processed: | PP/PE | Motor Power: | 30kW |
| Voltage: | 380V Or Customized | Clamping Force: | 240kN |
| High Light: | 25L double station blow molding machine,bottle blowing machine 30kW,bottle blowing machine 240kN |
||
Product Description

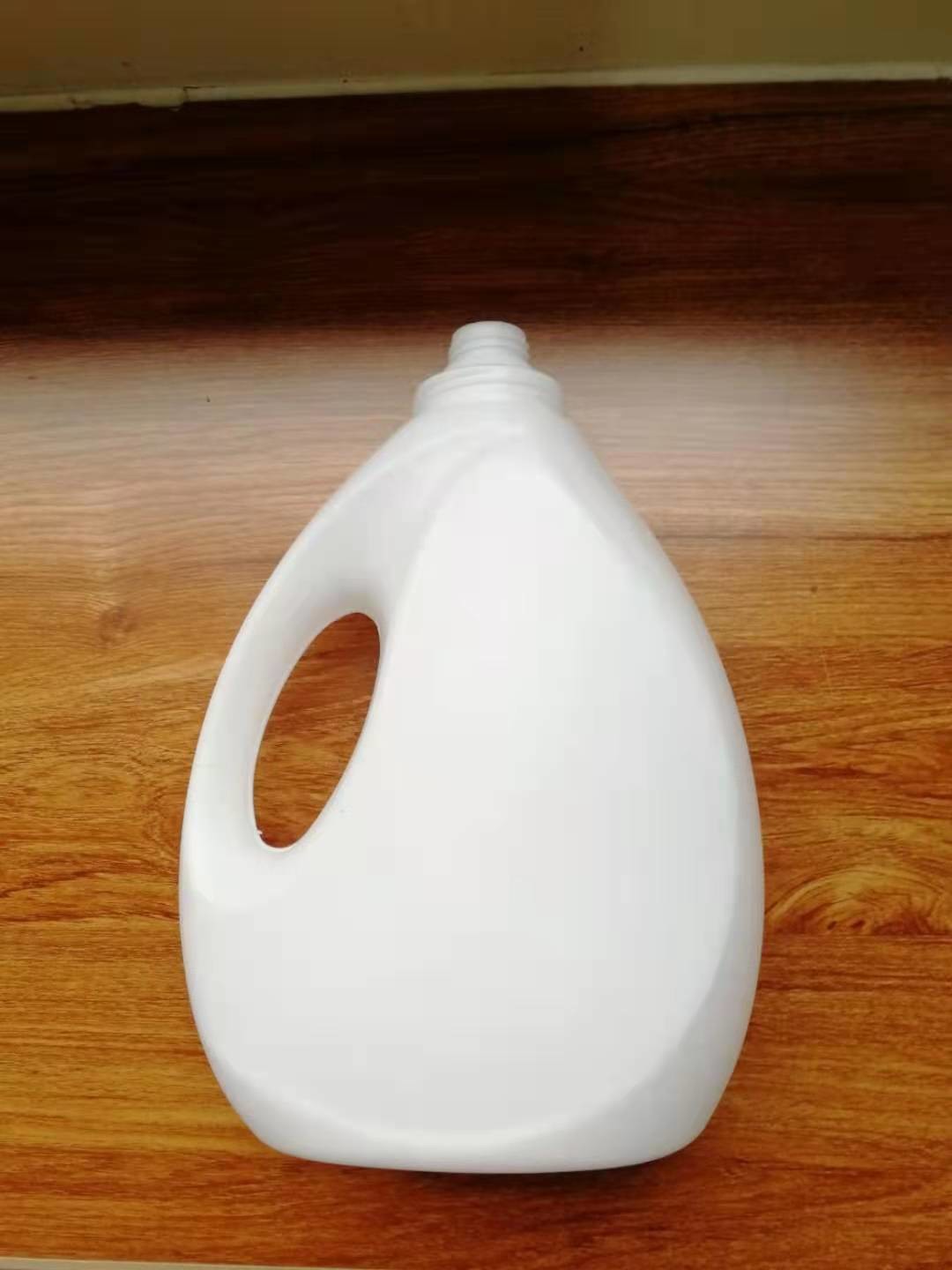

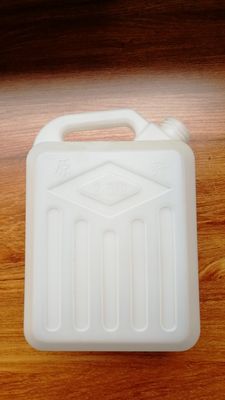

This machine is a single die head double - station hydraulic die - closing, pneumatic die - moving blowing machine. Suitable for blowing 5-15l PE/PP wine can, machine oil can, baby carriage parts, special-shaped parts, etc. This machine can be equipped with wall thickness controller and storage die head, so that the equipment fast material pressing speed, uniform wall thickness, high efficiency and energy saving.
PLC and human-computer interface, touch screen operation, easy and fast. Double helical flow passage, first in first out, accumulate die heads; material combined double directions, the material strength increased, removed combined line completely, ensure the final product dimension and quality.
Multiple points parison control system could satisfy the requirement of different kinds of products.
