Name
4 Molds Rotator for Rotary Blow Molding Machine

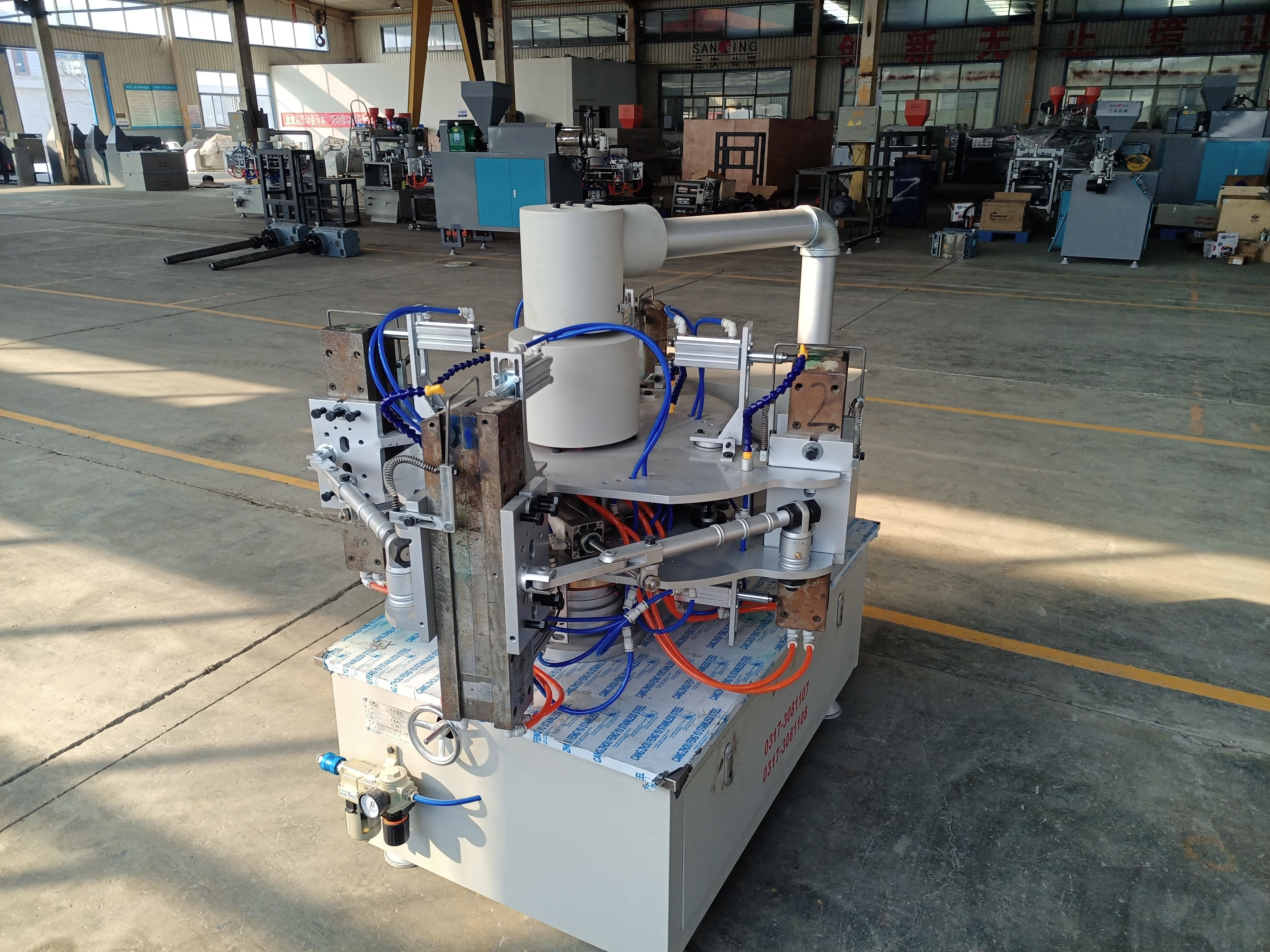

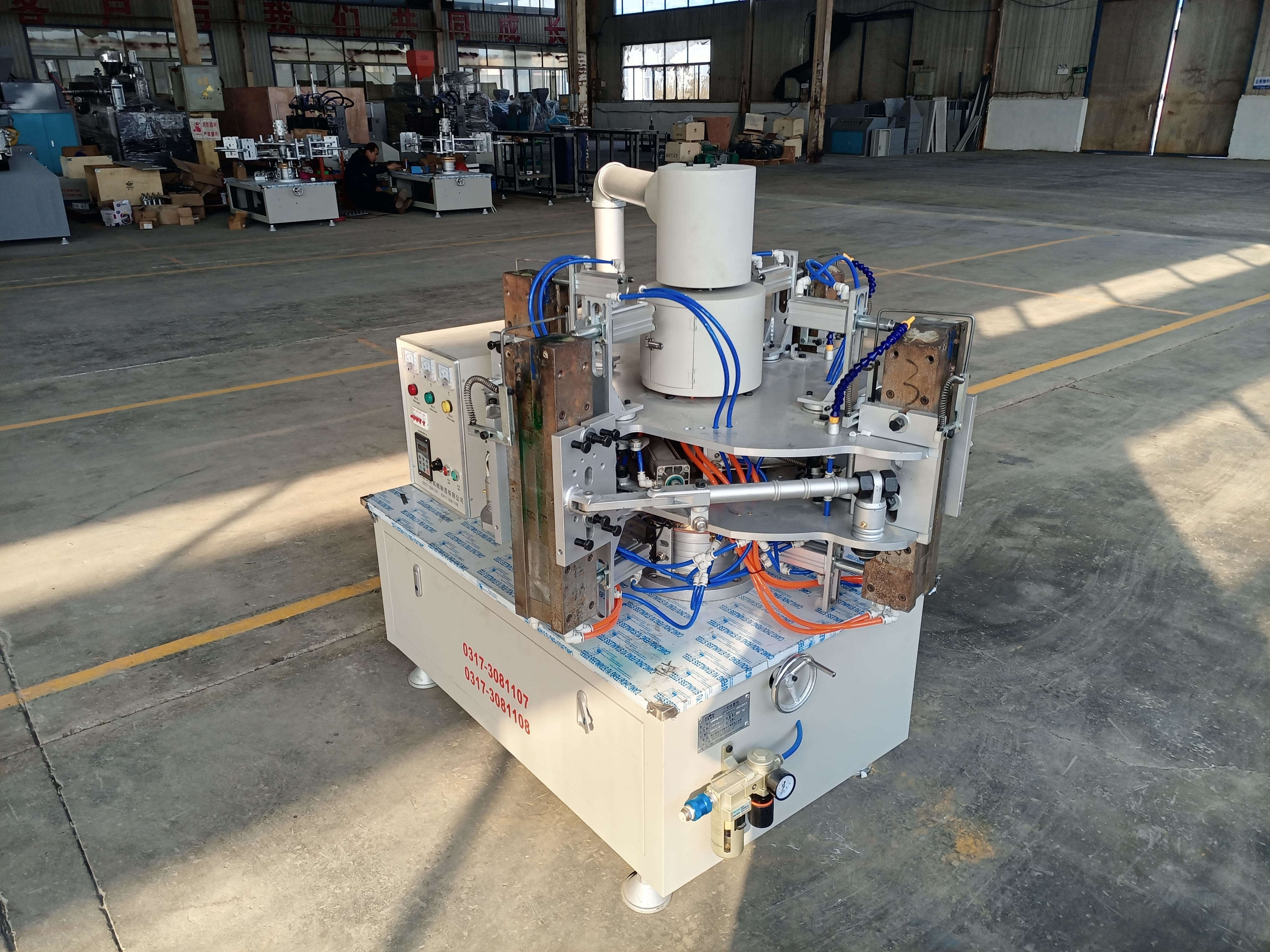

This is the rotator alone from the blow molding machine, which is the part to blow bottles.
Characteristics:
1. This type of machine could blow straws about 50cm long, which is suitable for decorated soft drink bottles. Link: https://youtube.com/shorts/WEf3Ic65Htk?feature=share
2. Our machine adapts most famous brand parts, like Zhejiang zhoushan screw, HOLIP frequency converter, OMRON or DEXILI parts and etc.
3. Sanqing’s Lathe machines are company-owned. All the parts are produced by our company in the house. The machine’s precise capability could reach 0.01-0.02mm. This character ensured the parts are with high precision and the machine could run very smoothly.
4. High capacity, this machine can run continuously 24 hours a day.
5. It will be better to work with the cutting bottle mouth machine when you produce HDPE bottles.
Main Technical Parameters:
| Model | 4 stations combine model 45/55 | 6 station combine model 55/65 | 8 station combine model 65/75 |
| Max bottle volume | 1000 | 1000 | 1000 |
| Max bottle diameter | 7 | 8 | 9 |
| Mould size mm | 120*120*300 | 120*120*300 | 120*120*300 |
| Screw diameter | 45/55 | 55/65 | 65/75 |
| Screw L/D ratio | 25:1 | ||
| Motor power | 5.5/7.5 | 7.5/11 | 11/15 |
| Heating power | 3 | 5 | 8 |
| Air consumption | 0.4 | ||
| Plasticizing capacity | 25/40 | 40/55 | 55/75 |
| Weight | 1500 | 2000 | 2500 |
| Size mm | 3400*1600*1740 | 3600*1700*1800 | 3800*1800*1900 |
| Applicable raw material | PE/PP/PVC | ||
| Speed regulation method | Frequency control of motor speed | ||
| Theoretical output | 1000-6000 | ||
