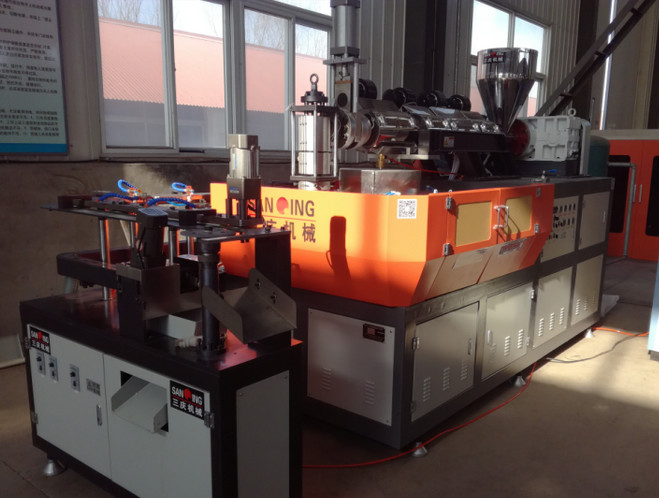

Full auto 6molds rotary blow molding machine .
| Max.Volume of bottle | 1000ml |
| production/hour | 2500pcs/hour(175ML bottle) |
| Allowable mould width | 125mm |
| Allowable mould | 118mm |
| Air pressure | 0.4-0.7Mpa |
| motor power | 18.5kw |
| Size of equipment(L×W×H) | 5000×2000×2500mm |
| Weight | 2000kg |

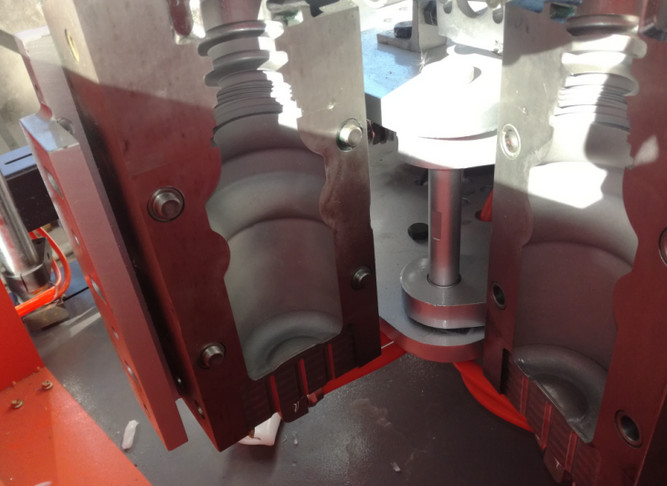

1, molds: 6molds
2, extruder syle : 75mm(motor 18.5KW)
3, speed: 0-13r/min
4, production capicity :according the sample
5, size:5000*2000*2500(L*W*H)
6, weight: 2000kg
7, power: 3N+PN-50HZ,380V/220V
8, wroking state: normal working condition,permite 24 hours continuours work
9, air consuption: 0.4-0.6
10, air souce: 0.4-0.7Mpa ,clean dry compressed air
11, cooling warter consumption: 1.0-1.5/m³,
12, total power: 25kw(18KW/regular production power consumption)
