4 Cavities Double Station Blow Molding Machine Automatic For Bottle

1 set
MOQ
4 Cavities Double Station Blow Molding Machine Automatic For Bottle
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 2 Cavities Double Station Blow Molding Machine
Condition: New
Weight: 3500kg
Power: 15kW
Warranty: 1 Year
Voltage: 380V 50Hz 3PH Or Customized
High Light:

4cavities automatic bottle blow molding machine

,

4cavities double station blow molding machine

,

automatic double station blow molding machine

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO
Model Number: SQ-11
Payment & Shipping Terms
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets/month
Product Description



Name

2 Cavities Double Station Blow Molding Machine



Product Description

Production capacity 2000 pcs to 2500 pcs(ocean balls) per hour



Average working Power: (15KW/H)

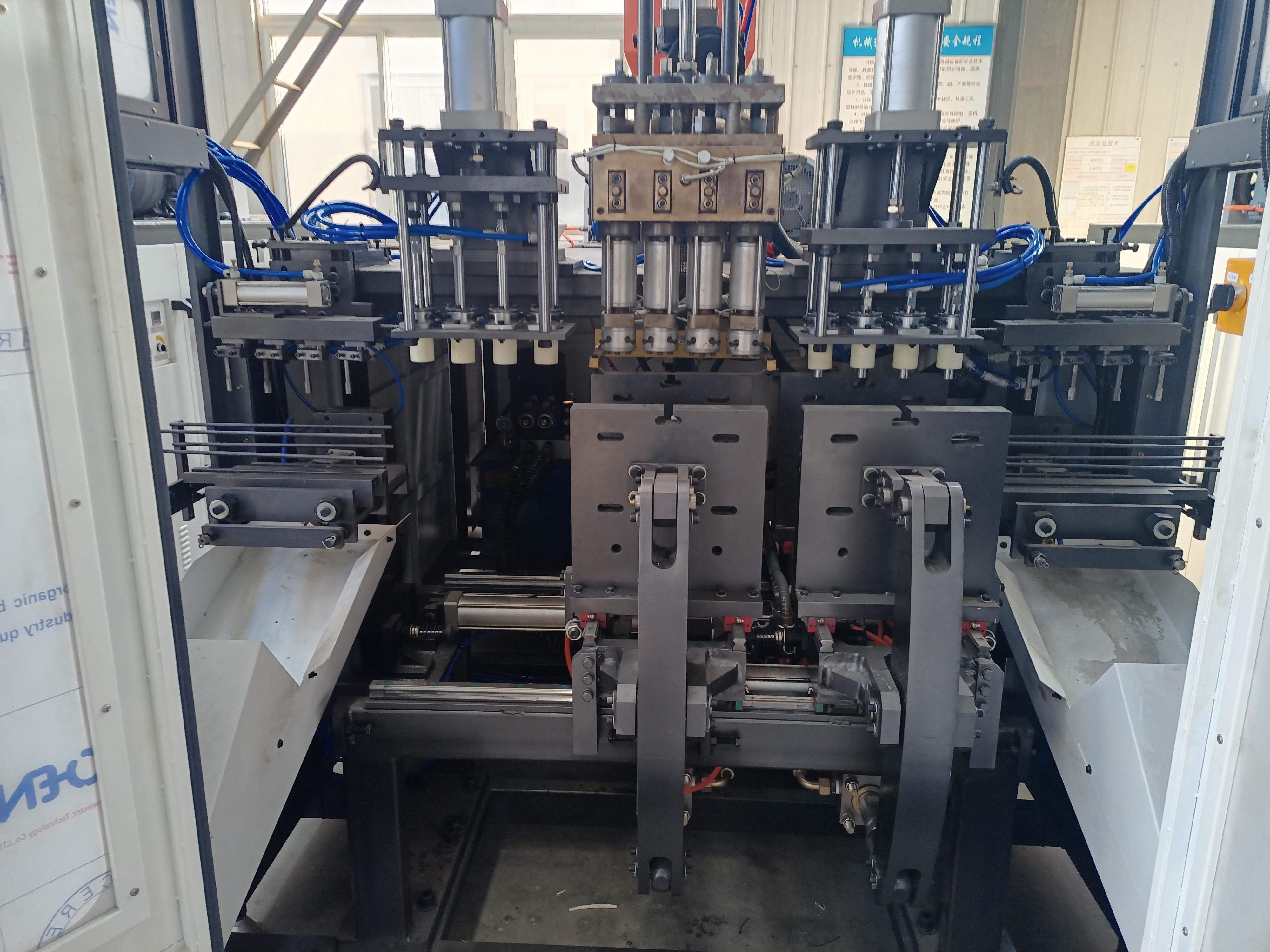

This Machine is a Hydraulic system to close molds and a pneumatic system to move molds. It also has an unattached electric cabinet, PLC computer control, easy to operate. This machine also finished the product and Stripped automatically, no need people.

1,Screw Diameter) : 65mm

2, (L/D ratio) : 25:1

3, (Motor Power) : 15kw

4, (Screw Speed) :20-60r/min

5,(Max. Plasticizing capacity) : 60kg/h

6, (No. of die head) :2

7, (Distance of die head center) :110mm

8, (Max. Clamping force) :35KN

9, (Working Pressure) :0.6-0.8Mpa

10, (Max. bottle volume) :3000ml

11, (Weight):3500kg

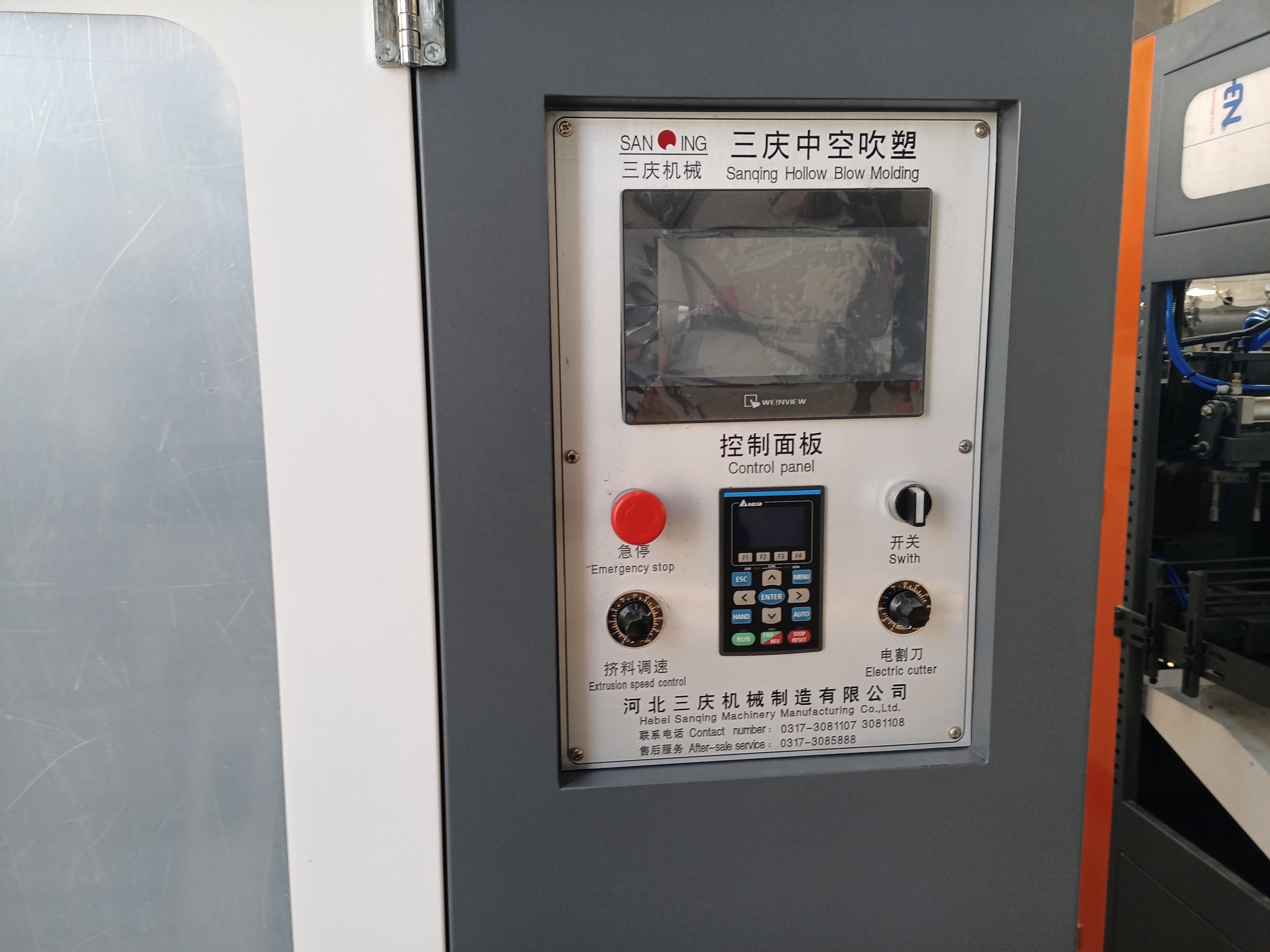

12, (Way of control):(PLC computer control)

13, (Way of control speed):(Frequency control)

14,(Size):L*W*H=2.5M*2.1M*1.7M)

15,(Average Power): (15KW/H)

Full Automatic Seaball Blowing Machine:



soft LDPE pool  toy plastic ball pits balls  making machine blow moulding machine

4 Cavities Double Station Blow Molding Machine Automatic For Bottle 1
