ISO 8MPa Plastic Hdpe Bottle Blowing Machine PE Blow Molding 35KN

1 set
ISO 8MPa Plastic Hdpe Bottle Blowing Machine PE Blow Molding 35KN
Features Gallery Product Description Request A Quote
Product Name: Plastic LDPE Sea Ball Ocean Full Automatic Blow Molding Machine
Plastic Processed: PP/HDPE, PE
Clamping Force: 40kN
Output: 60kg/h
Voltage: 380V/220V
Power: 18kW
High Light:

ISO hdpe bottle blowing machine


8MPa plastic mold making machine


pe blow molding machine 35KN

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO
Model Number: SQ05
Payment & Shipping Terms
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Supply Ability: 5 sets/month
Product Description

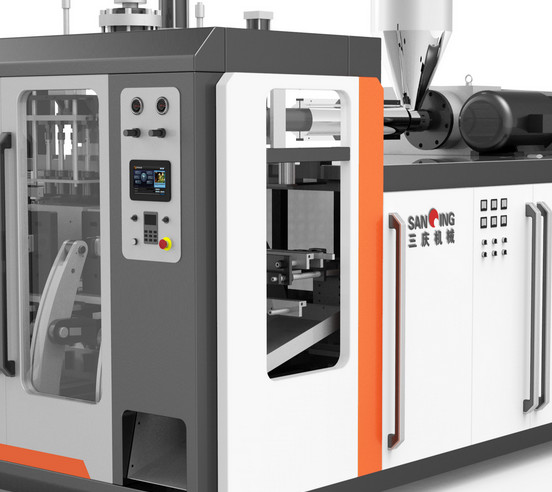

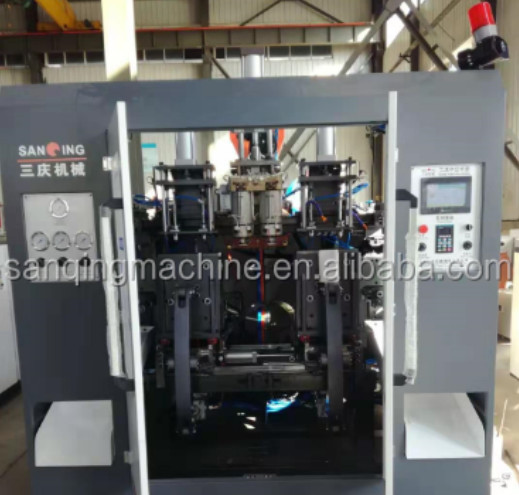

Plastic LDPE Sea Ball Ocean Full Automatic Blow Molding Machine


This Machine is Hydraulic system to close molds and pneumatic system to move molds. It also has unattached electric cabinet ,PLC computer control, easy to operate. This machine also finished the product and Stripping automatically, no need people .

1,Screw Diameter) : 75mm

2, (L/D ratio) : 25:1

3, (Motor Power) : 18.5kw

4, (Screw Speed) : 20-60r/min

5,(Max. Plasticizing capacity) : 60kg/h

6, (No. of die head) : 2

7, (Distance of die head center) : 130mm

8, (Max. Clamping force) : 35KN

9, (Working Pressure) : 0.6-0.8Mpa

10, (Max. bottle volume) : 3000ml

11, (Weight): 3500kg

12, (Way of control): (PLC computer control)

13, (Way of control speed): (Frequency control)

            14,(Size): L*W*H=3.8M*2.1M*2.2M)

            15,(Average Power): (18KW/H)



item value
Condition New
Video outgoing-inspection Provided
Machinery Test Report Not Available
Marketing Type New Product 2021
Warranty of core components 1 Year
Core Components Gearbox, Frequency Control Inverter, Temperature Controller, Pneumatic Power, Moulds, Proximity Switch, Air Cylinders, Motors for Extruder, Screw from Extruder

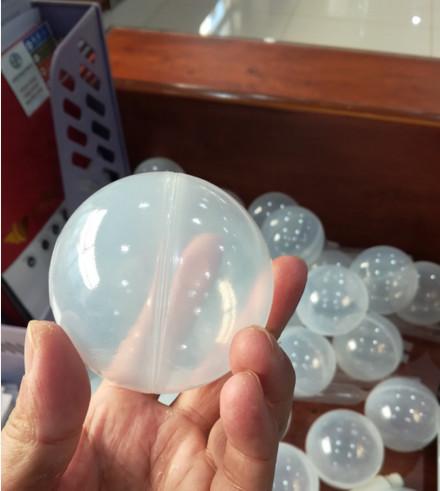

Application ocean ball
Plastic Processed PE
Place of Origin China
Brand Name Sanqing
Year New
Voltage 380V/50HZ
Dimension(L*W*H) 3430*2300*2650mm
Certification CE ISO
Clamping Force (kN) 35
Screw L/D Ratio 25
Screw diameter (mm) 65mm
Output (kg/h) 60kg/h
Automation Automatic
Screw Heating Power(kW) 11kW
Extruder Motor Power(kW) 15kW
Mold Platen Size(Width)(mm) 34mm
Mold Platen Size(Height)(mm) 32.6mm
Air Pressure(MPa) 8MPa
Air Consumption(m³/min) 0.6m³/min
Die Head Heating Power(kW) 11kW
Accumulator Capacity(L) 0L
Power (kW) 30
Weight (T) 4
Key Selling Points Automatic
Warranty 1 Year
  Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support
After Warranty Service Video technical support, Online support
Applicable Industries Manufacturing Plant, Toys Manufacturing
Local Service Location Egypt, Turkey
Showroom Location Egypt
Mode SQ05
