Name
Baby Plastic Ball Pit Balls, Toy Soft Ldpe Ocean Ball For Pool Automatic Extrusion Blow Moulding Machine
Product Description
Production capicity 2000 pcs to 2500 pcs per hour

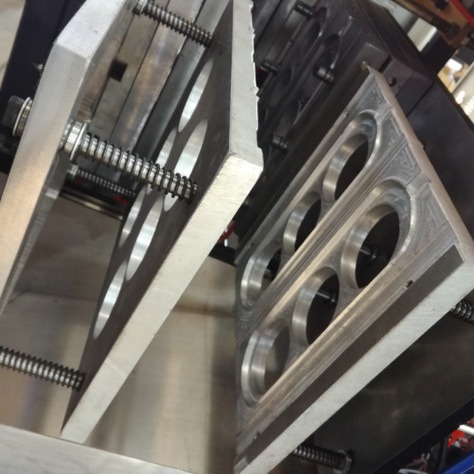

Full automatic Double heads double workstation : 6 to 8 cavity

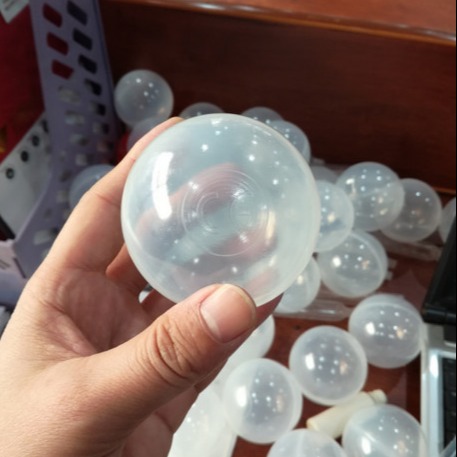

The ball sizes from 50 to 80mm,the weight from 3 to 12grams.
Average working Power: (15KW/H),24hours reliable running.

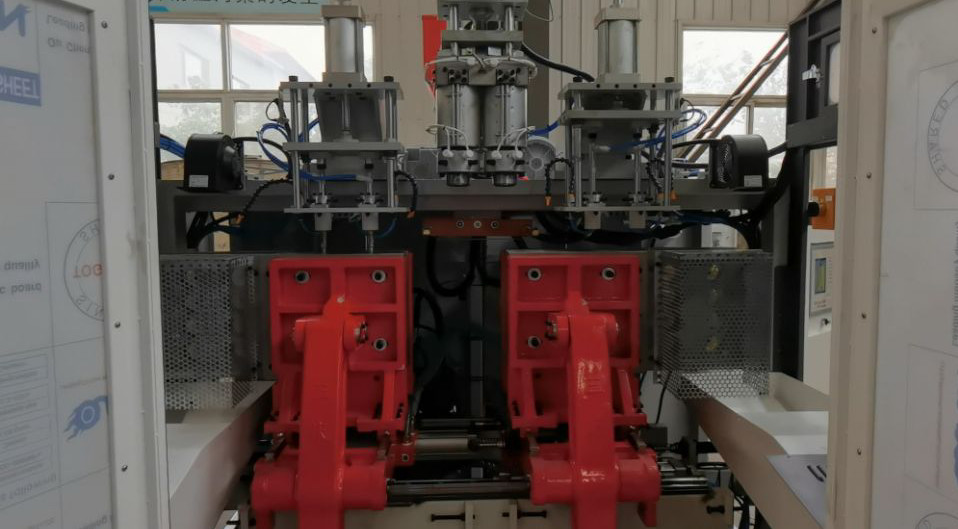

This Machine is Hydraulic system to close molds and pneumatic system to move molds. It also has unattached electric cabinet ,PLC computer control, easy to operate. This machine also finished the product and Stripping automatically, no need people .
1, Screw Diameter) : 65mm
2, (L/D ratio) : 25:1
3, (Motor Power) : 15kw
4, (Screw Speed) :20-60r/min
5, (Max. Plasticizing capacity) : 60kg/h
6, (No. of die head) :2
7, (Distance of die head center) : 110mm
8, (Max. Clamping force) :35KN
9, (Working Pressure) : 0.6-0.8Mpa
10, (Max. bottle volume) : 3000ml
11, (Weight): 3500kg
12, (Way of control): PLC computer control)
13, (Way of control speed): (Frequency control)
14, (Size):L*W*H=2.5M*2.1M*1.7M)
15, (Average Power): (15KW/H)
|
Item
|
Parameters
|
|
Max. Product Volume
|
3L
|
|
Die Heads
|
1 or 2 die heads
|
|
Air Consumption
|
0.5-0.6m3/Min
|
|
Speed Control By
|
PLC system
|
|
Mold Board Width
|
34 CM
|
|
Mold Board Height
|
32.6CM
|
|
Mold Board Distance
|
35 CM
|
|
Power Consumption
|
25 KW
|
Our engineers are available to service machinery overseas. We will provide technical support for your installation and operation. We can also send engineers to your country, if you need, for installing, debugging and operation of the machine. We warranty the quality of this machine for 12 months, if there is any problem with the machine, or any main parts are broken, we will repair it or replace new for free
