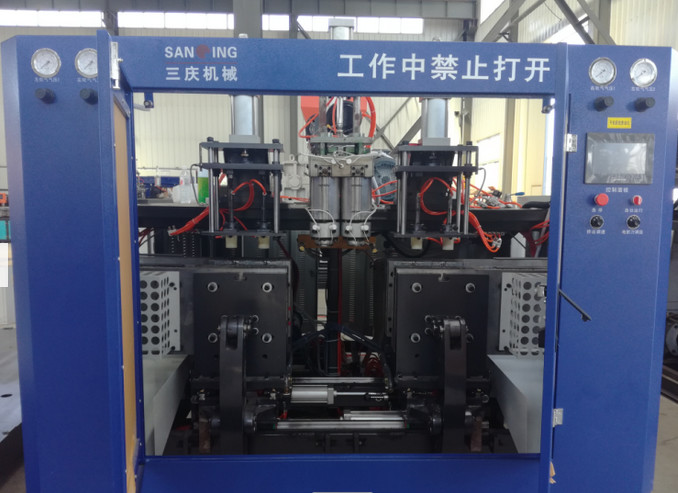

Automatic Plastic LDPE Ball Pits Balls Sea Ball Making Machine, Extrusion Blow Molding Machine
Production capicity 2000 pcs to 2500 pcs per hour
Double heads double workstation : 6 TO 8 cavity

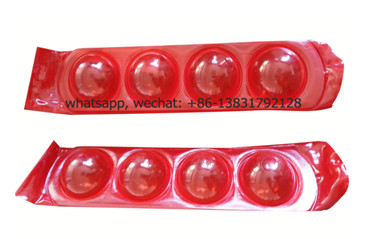

The ball sizes from 50mm to 80mm,the weight from 3grams to 12grams.
Average working Power: (15KW/H)
This Machine is Hydraulic system to close molds and pneumatic system to move molds. It also has unattached electric cabinet ,PLC computer control, easy to operate. This machine also finished the product and Stripping automatically, no need people .
1,Screw Diameter) : 65mm
2, (L/D ratio) : 25:1
3, (Motor Power) : 15kw
4, (Screw Speed) :20-60r/min
5,(Max. Plasticizing capacity) : 60kg/h
6, (No. of die head) :2
7, (Distance of die head center) :110mm
8, (Max. Clamping force) :35KN
9, (Working Pressure) :0.6-0.8Mpa
10, (Max. bottle volume) :3000ml
11, (Weight):3500kg
12, (Way of control):(PLC computer control)
13, (Way of control speed):(Frequency control)
14,(Size):L*W*H=2.5M*2.1M*1.7M)
15,(Average Power): (15KW/H)
Semi-automatic Seaball Blowing Machine(Cheaper):
We pack machines by steel frame and closed by wood frame. It is very strong packing, the machine will not be broken.
