700PCS/HR Automatic Bottle Blowing Machine
Product Details:
| Place of Origin: | Hebei, China |
| Brand Name: | Sanqing |
| Certification: | CE ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Angle frame with outside wooden case |
| Delivery Time: | 45 days |
| Supply Ability: | 50 sets/month |
|
Detail Information |
|||
| Name: | High Speed 3-25 Liter Bottle Blowing Machine With Servo Motor Save Energy | Plastic Processed: | PP, PE, HDPE |
|---|---|---|---|
| Application: | Bottle, Pipes, Jerry Cans, Tubes, Droppers, Etc | Warranty: | 1 Year |
| Hollow Part Volume: | 3-25L | Output: | 100kg/h |
| Power: | 105kW | Weight: | 13t |
| High Light: | 700PCS/HR Automatic Bottle Blowing Machine,5 Liter Blow Moulding Machine 100kg/h,5 Liter Blow Moulding Machine 105kW |
||
Product Description
Product Description

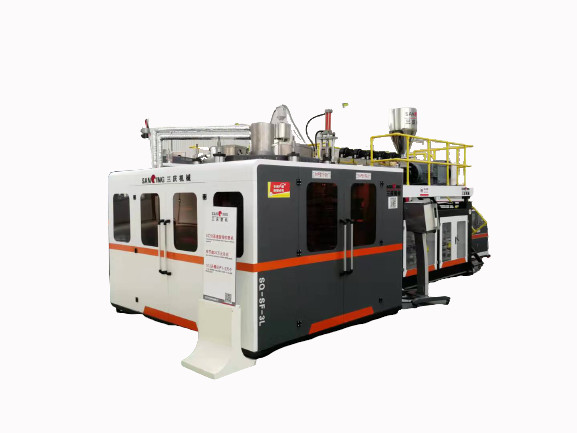

HIGH SPEED BOTTLE BLOWING MACHINE
Our company manufactures new stye rotary blow molding machine for 3L bottles. This machine is high efficiency, it could equal to 3 traditional blow molding machines production capacity. However, the energy consumption is only equal to 30% of the traditional hydraulic powered machine. The contribution is from the servo motor that this machine adopted, which could help save electricity in order to reduce cost of the production.

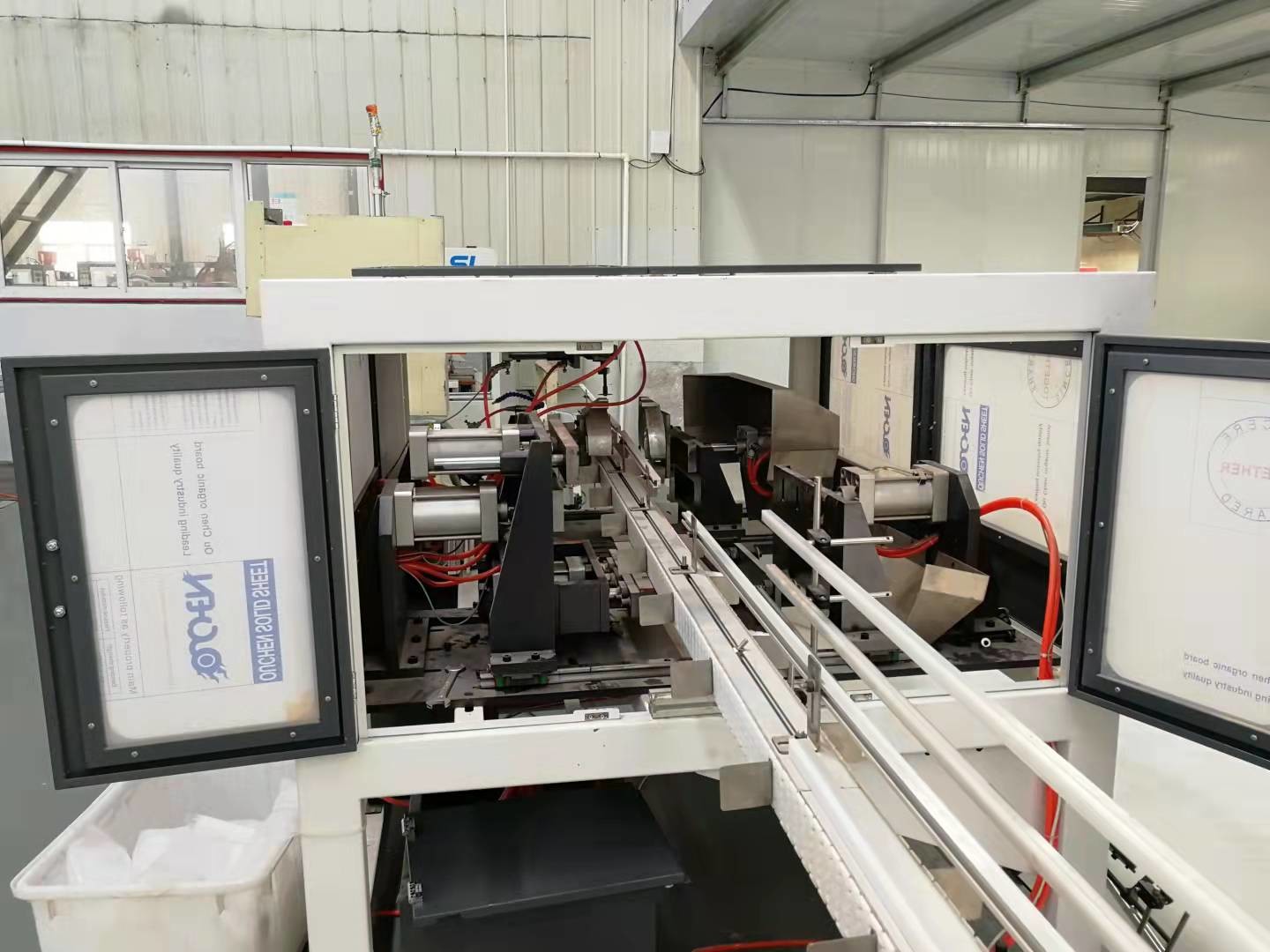

Besides, the machine could complete with final product, conveyor will transfer products and deflash products to get a final product.
|
SPECIFICATIONS FOR BLOW MOLDING MACHINE
|
|||
|
MAX. PRODUCT VOLUME
|
3L
|
PRODUCTION CAPACITY
|
700 PCS/HR
|
|
SCREW DIA.
|
110 MM
|
SCREW POWER
|
35KW
|
|
SCREW POWER
|
22 KW
|
SCREW HEATING POWER
|
18 KW
|
|
HEATING ZONE
|
5
|
OUTPUT OF MATERIAL
|
90 KG/HR
|
|
MAX. MOLD SIZE
|
320X340
|
DIE HEATING POWER
|
7.5 KW
|
|
AIR VOLUME
|
1.0M3/MIN
|
MACHINE WEIGHT
|
9 TONS
|
|
CLAMPING FORCE
|
50 KN
|
WATER CONSUMPTION
|
80 L/MIN
|
Main Features
1) High production speed, per hour 700 pcs 3 liter bottles.
2) Save energy, it could save 30% compare to normal machine.
3) Servo motor adopted in this machine, great contribution to energy saving aspects.
Certifications
Machine Parts
Name: Clamping Moulds
Brand: Sanqing
Original: China.
The clamping moulds mechanism are powered by servo motor, it saves energy when the postion with no action.
Main Features
Name: Die Head
Brand: Sanqing
Original: China
Sanqing designed die could could extrude material smooth and with average thickness.
Main Features
Name: Guide Rail Gear
Brand: Sanqing
Original: China
Round guide gear could make sure stable operation under high speed rotating speed.
