500mL Automatic Bottle Blowing Machine 700 PCS/HR 4500×1200×1700mm

1 set
MOQ
500mL Automatic Bottle Blowing Machine 700 PCS/HR 4500×1200×1700mm
Features Gallery Product Description Request A Quote
Features
Specifications
Name: SQ-6/8 Molds New Automatic Blow Molding Machine, Suitable For 500mL Bottle Blow Molding Machine
Suitable Bottle: 1-500mL
Power: 22kW
Weight: 2.5t
Screw L/D Ratio: 25
Keywords: High Speed Automatic
High Light:

500mL Automatic Bottle Blowing Machine

,

blowing machine automatic 700 PCS/HR

,

blowing machine automatic 4500×1200×1700mm

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO
Model Number: SQ-6/8
Payment & Shipping Terms
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets/month
Product Description
Product Name
SQ-6/8 Molds New Automatic Blow Molding Machine, Suitable For 500mL Bottle Blow Molding Machine

Product Description

HDPE bottle Machine-Automatic blowing machine

This is full automatic hdpe bottle blowing machine, it could achieve auto cutting up bubble and below waste automatically.

Specification
SPECIFICATIONS FOR BLOW MOLDING MACHINE
Max. Bottle Containment
800ml
PRODUCTION CAPACITY
700 PCS/HR
Working Stations
6 stations
SCREW POWER
35KW
Productive capacity
1200 PCS per Hr (500ml bottle)
SCREW HEATING POWER
18 KW
Allowed Mould width
125mm
OUTPUT OF MATERIAL
90 KG/HR
Allowed Mould Thickness
118mm
DIE HEATING POWER
7.5 KW
Blowing Air pressure
0.4-0.7Mpa
MACHINE WEIGHT
9 TONS
Rated Power
25kw
WATER CONSUMPTION
80 L/MIN
Extruder Screw Diameter
75mm

Plasticizing Capacity
60KG/Hour

Size of Main Frame(L.W.H)
4500×1200×1700mm



Connected Type Blow Molding Machine

Connected Style means the blower and extruder is one machine.


PLC Type Rotary Blowing Machine

This type of blowing machine equipped with PLC control system. The temperature controller and inverter system are build in PLC system, which could be directly controlled by touch screen. The functions is same between connected type and PLC type.


Die Head and Filter
The die head could extrude material parison, inside installed with die core and die cup. Each type of bottle needs to use different types of the die core and cup.

So, please order the suitable die core and cup for different types of product.
Control Buttons on Extruder
The temperature could be controlled by the temperature controller.

The ammeter could monitor if the heating parts are working properly.

The inverter could help to adjust extrude the material speed.

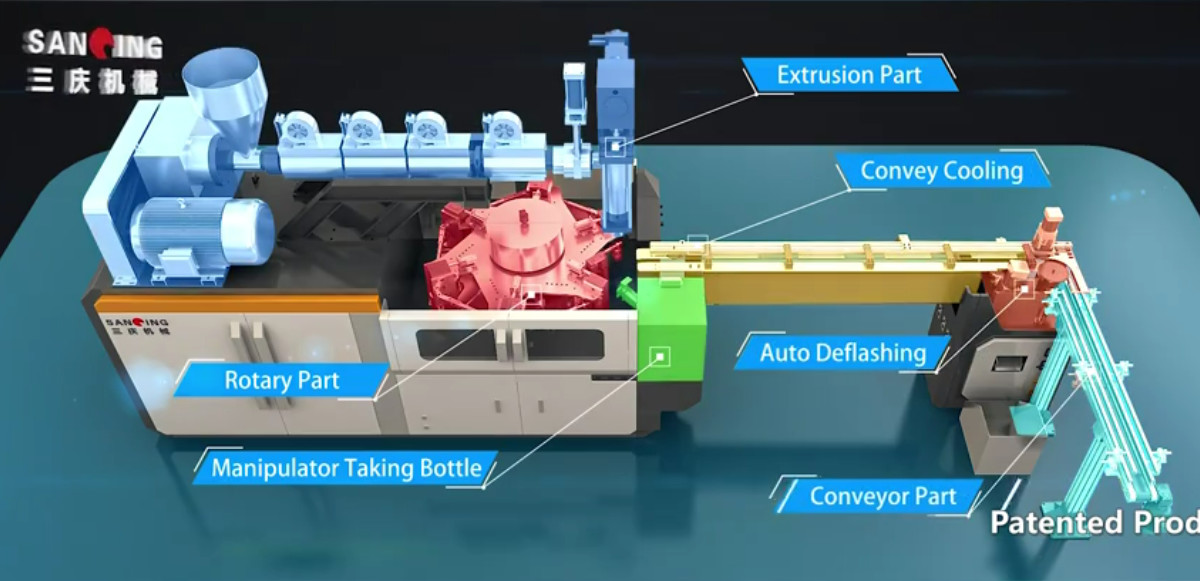

Rotary Part of Machine

Rotary part of machine could be worked with different sizes of extruders.
The rotary stations could be 4, 6, 8. The 6 stations is the most hot sale type of machine, because it works well speed for ice lolly products. If you need produce HDPE type bottles, such as milk or yogurt bottles, you could choose 8 molds to be more high production capacity.
  • Products Produced by Blowing Machine

The ice lolly tube product could be customized by each customer, normally it has 45ml, 80ml, 90ml.

It could be marked with customer requested LOGO, ingredients or production period.

The shape could also be varied based on customer requirement.


Main Features
This type of machine is suitable to produce HDPE type bottles with cutting neck. For example milk bottles, yogurt bottles, etc.
The most biggest advantage of this machine is achieved full automatic operation. The bottles could be trimmed automatically after
delivery out from conveyor.
For this type of machine, we could produce 4 molds, 6 molds, 8 molds, customer could choose based on the requirement.
Speed: 500ml bottles: about 1500 PCS per hour;This type of machine is suitable to produce HDPE type bottles with cutting neck. For example milk bottles, yogurt bottles, etc.
The most biggest advantage of this machine is achieved full automatic operation. The bottles could be trimmed automatically after
delivery out from conveyor.
For this type of machine, we could produce 4 molds, 6 molds, 8 molds, customer could choose based on the requirement.
Speed: 500ml bottles: about 1500 PCS per hour;

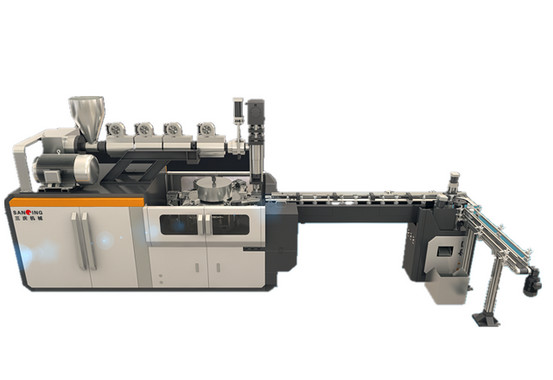

500mL Automatic Bottle Blowing Machine 700 PCS/HR 4500×1200×1700mm 0

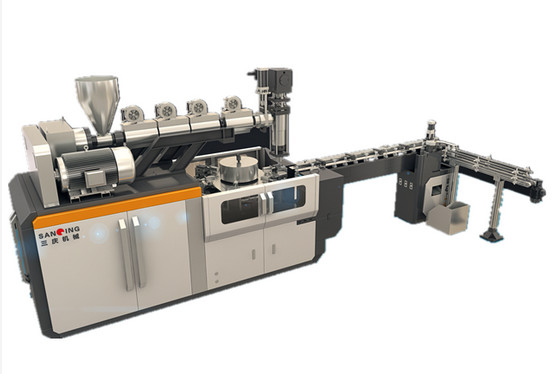

500mL Automatic Bottle Blowing Machine 700 PCS/HR 4500×1200×1700mm 1
