TPU Shoes Air Cushion Automatic Bottle Blowing Machine 50kg/H

1 set
MOQ
TPU Shoes Air Cushion Automatic Bottle Blowing Machine 50kg/H
Features Gallery Product Description Request A Quote
Features
Specifications
Name: TPU Transparent Air Cushion For Sports Shoes Special Blow Molding Machine
Plastic Processed: TPU
Application: Air Cushion
Warranty: 1 Year
Screw Diameter: 75mm
Output: 50kg/h
Power: 22kW
Weight: 5t
High Light:

TPU Automatic Bottle Blowing Machine

,

shoes Air Cushion Blow Molding Machine

,

Blow Molding Machine 50kg/h

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO9001
Payment & Shipping Terms
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Supply Ability: 50 sets/month
Product Description
Product Name
TPU Transparent Air Cushion for Sports Shoes Special Blow Molding Machine


Product Description



Main Features
This machine is full automatic multi-die heads blow molding machine with hydraulic closing moulds and pneumatic move moulds.This machine is suitable to produce sauce bottle,seabll,detergent bottle,milk bottle and medinine bottle etc.This machine is controlled by PLC system,with characters as high stability,less resistance,high precision and full antomatic etc.Also unattended operation can be achieved.



Specification
SPECIFICATIONS FOR BLOW MOLDING MACHINE
Max. Product Size
10cm
Screw Dia.
65mm
Theoretical Production Capacity
800-1000 pcs/h
Screw Length/Dia. Rate
25:1
Die Heads
2
Plasticizing Rate
50kg/H
Air Consumption
0.5-0.6m³min
Motor Power
11kw
Raw Material
PE/PP
Heating Power
11kw
Weight
1300 kg
Main Machine Size
3400x2100x2200mm
Speed Regulating Method
PLC control

Mold Board Width
34mm

Mold Board Distance
35mm

Mold Board Height
32.6mm

Oil Pump Motor
5.5kw



Details Images

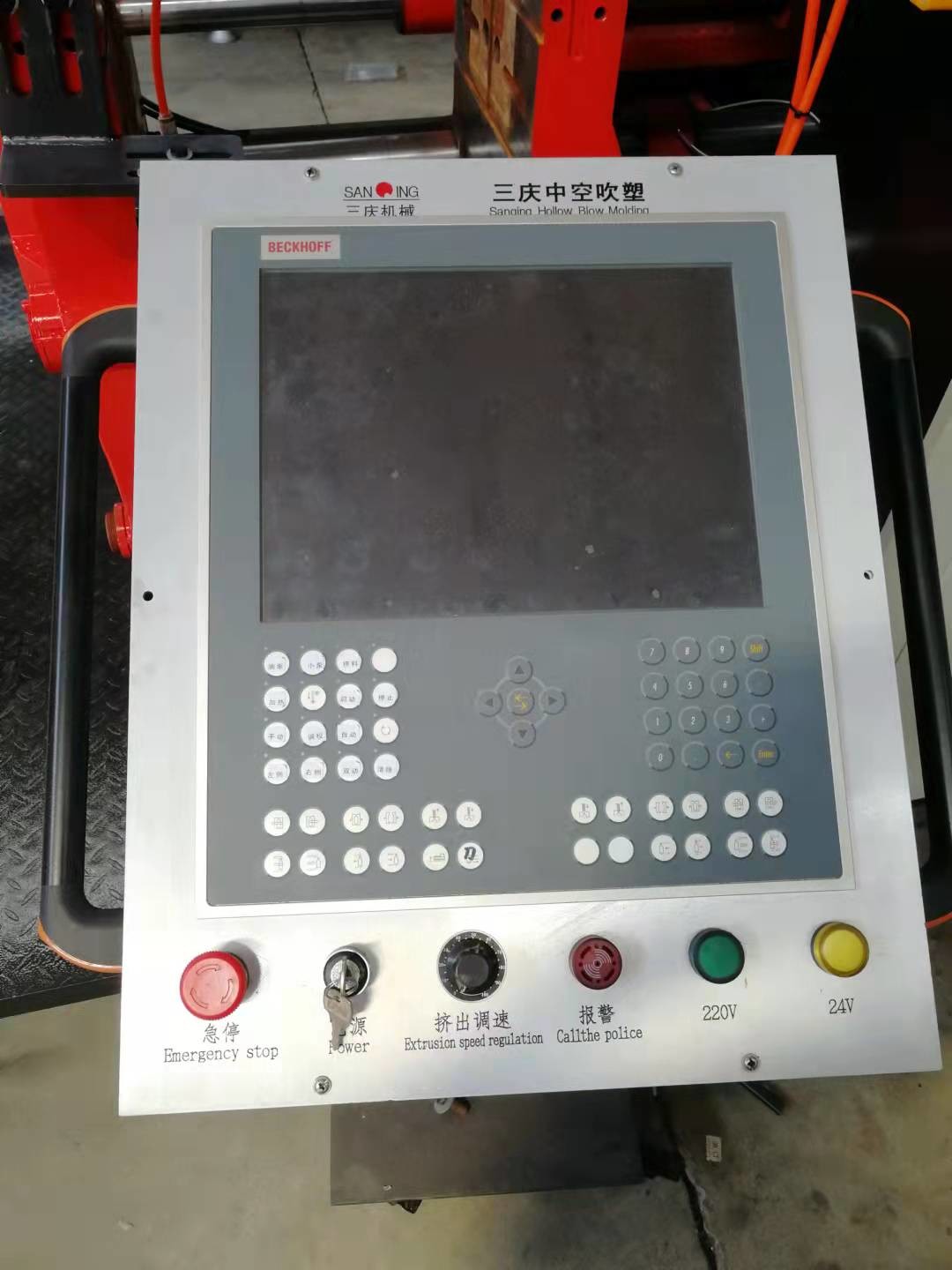

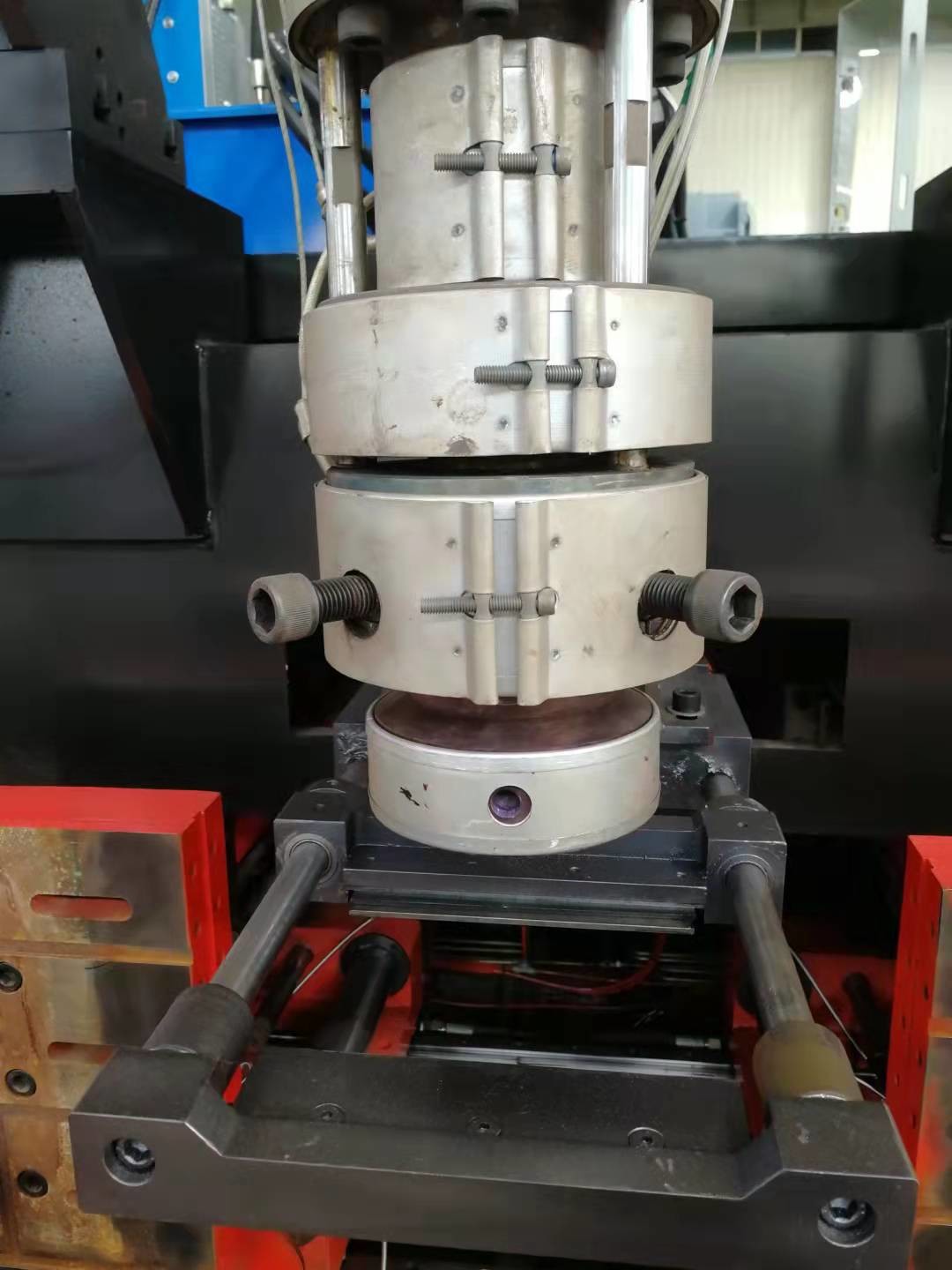

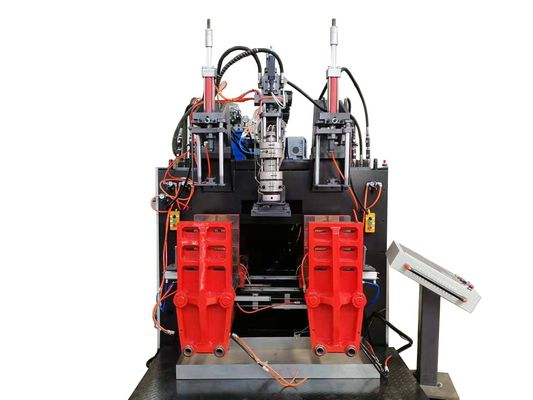

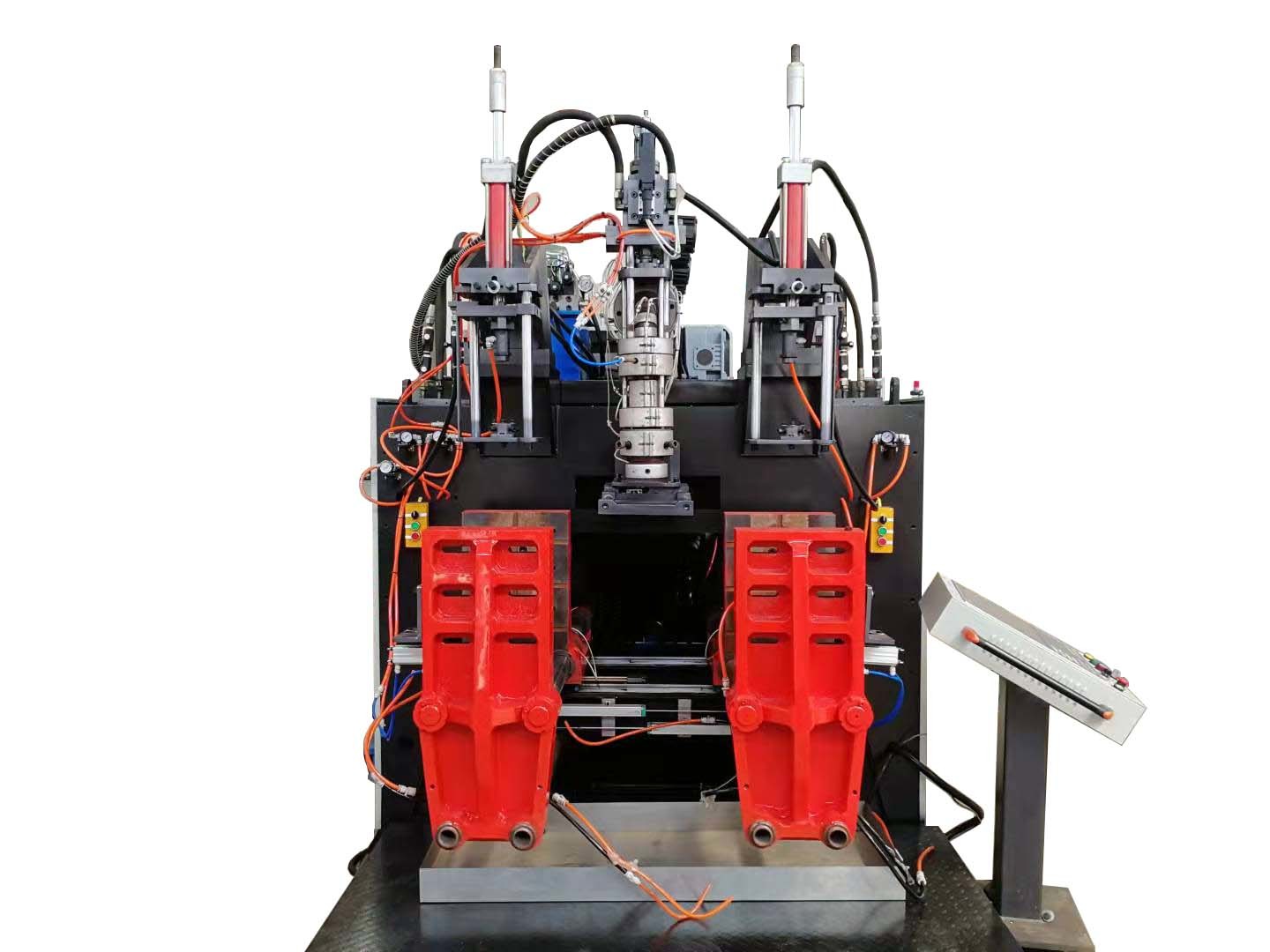

TPU Shoes Air Cushion Automatic Bottle Blowing Machine 50kg/H 0
TPU Shoes Air Cushion Automatic Bottle Blowing Machine 50kg/H 1
TPU Shoes Air Cushion Automatic Bottle Blowing Machine 50kg/H 2
TPU Shoes Air Cushion Automatic Bottle Blowing Machine 50kg/H 3
