8 Cavity Plastic Ball Making Machine

1 set
8 Cavity Plastic Ball Making Machine
Features Gallery Product Description Request A Quote

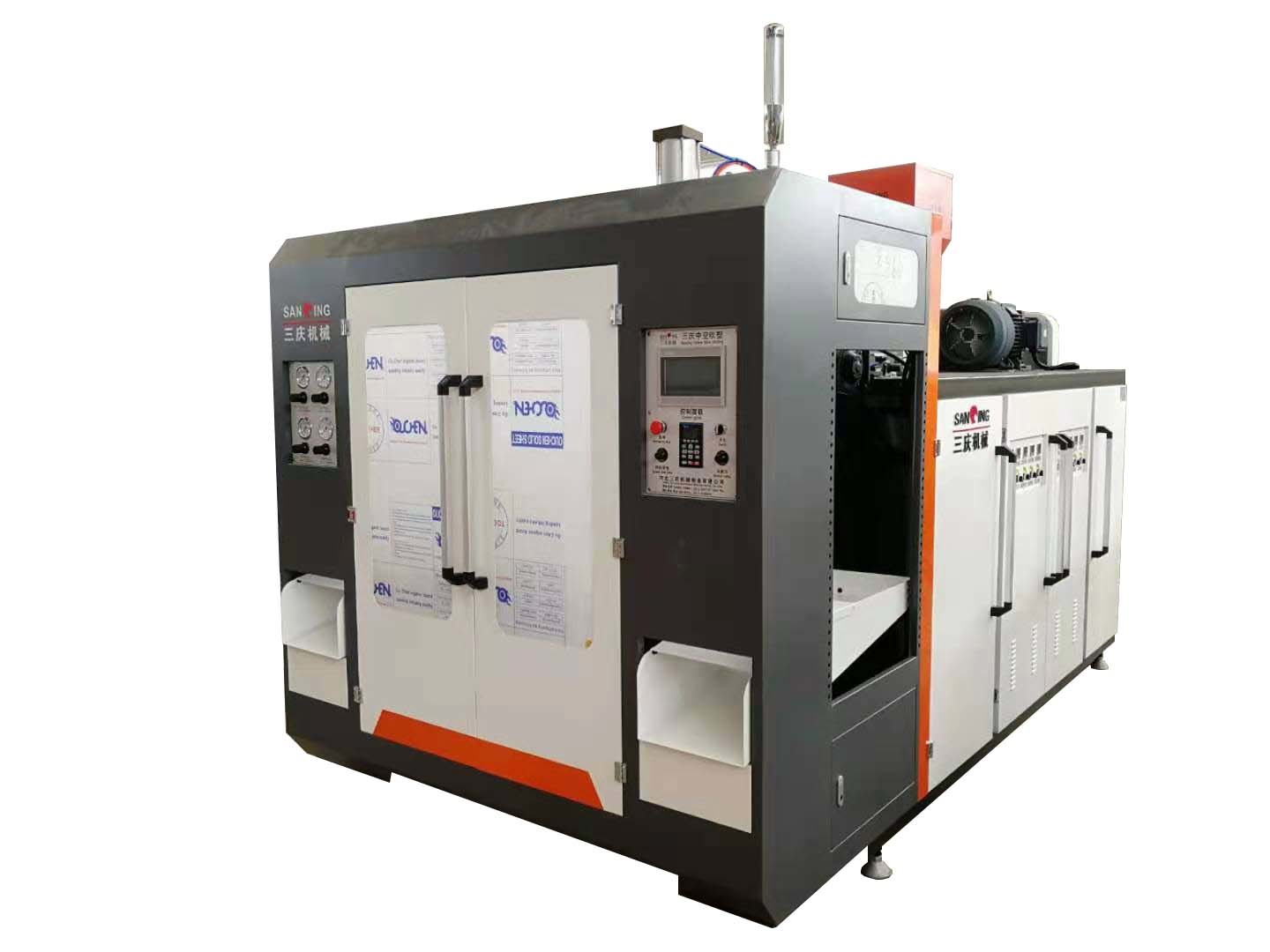

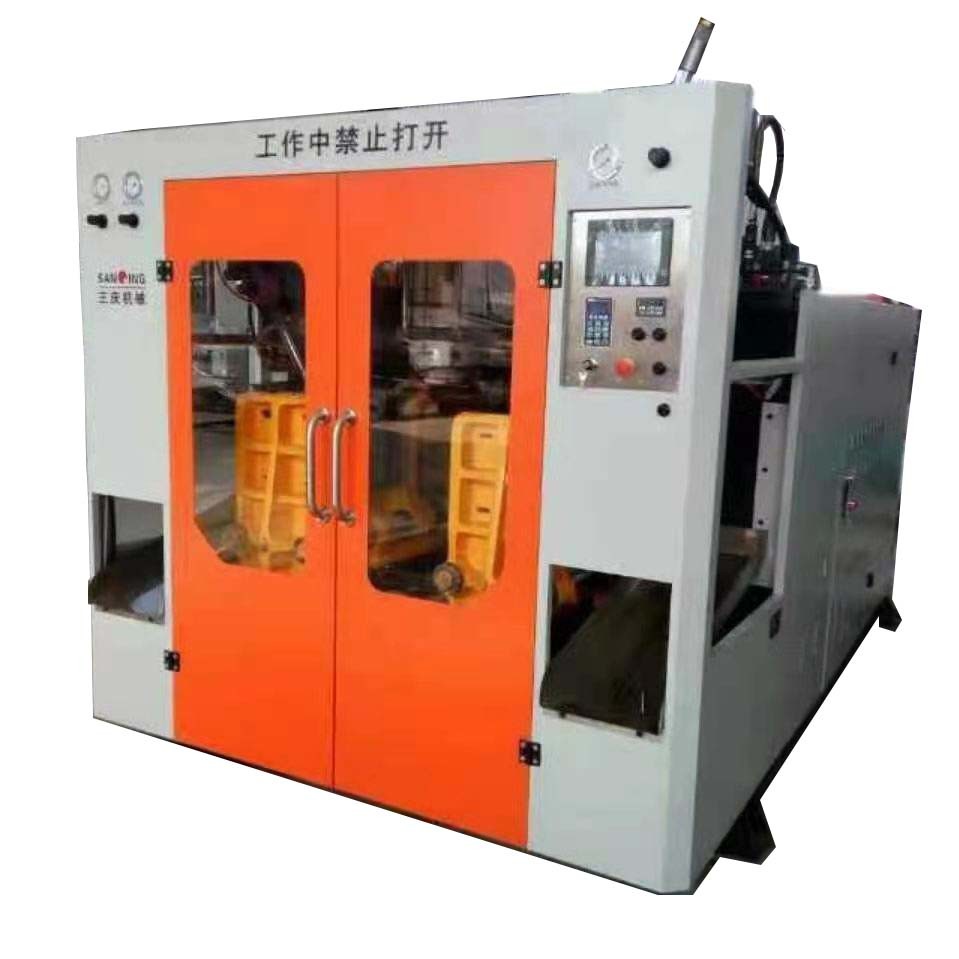

Product Name: Automatic Blow Moulding Machine For Making Plastic Sea Balls, Ball Pit Ball, Pool Ball Toys
Application: Pit Ball
Dimension: 3.43*2.2*2.45m
Power: 15kW
Warranty: 12 Months
Weight: 3500kg
High Light:

8 cavity plastic ball making machine


3000ml Automatic Blow Moulding Machine


plastic ball making machine 15kW

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO
Model Number: SQ05
Payment & Shipping Terms
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets/month
Product Description


Automatic Blow Moulding Machine For Making Plastic Sea Balls, Ball Pit Ball, Pool Ball Toys


Product Description

Production capicity 2000 pcs to 2500 pcs per hour

Full automatic Double heads double workstation : 6 TO 8 cavity

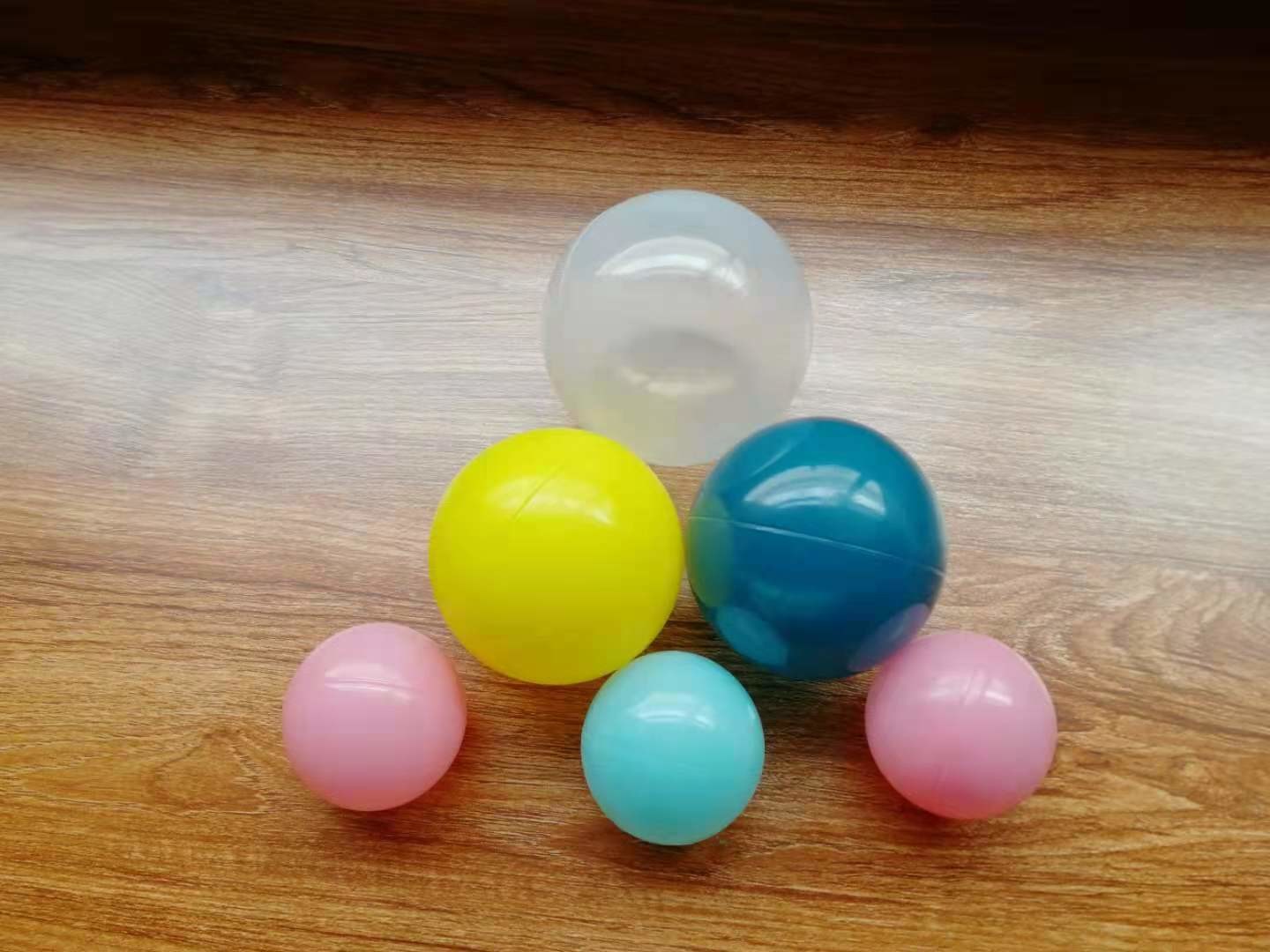

The ball sizes from 50 to 80mm,the weight from 3 to 12grams.

Average working Power: (15KW/H)



This Machine is Hydraulic system to close molds and pneumatic system to move molds. It also has unattached electric cabinet ,PLC computer control, easy to operate. This machine also finished the product and Stripping automatically, no need people .

1,Screw Diameter) : 65mm

2, (L/D ratio) : 25:1

3, (Motor Power) : 15kw

4, (Screw Speed) : 20-60r/min

5,(Max. Plasticizing capacity) : 60kg/h

6, (No. of die head) : 2

7, (Distance of die head center) : 110mm

8, (Max. Clamping force) :35KN

9, (Working Pressure) : 0.6-0.8Mpa

10, (Max. bottle volume) : 3000ml

11, (Weight): 3500kg

12, (Way of control): (PLC computer control)

13, (Way of control speed): (Frequency control)

            14,(Size): L*W*H=2.5M*2.1M*1.7M)

            15,(Average Power): (15KW/H)


This machine is professional ocean ball blow molding machine, with the unique blow molding machine with semi-hydraulic power, could save power and reduce electricity cost. Automatic production process could also save labour. This machine could be the most economic machine throughout the world. Please contact us for further details.


Our Services

Our engineers are available to service machinery overseas. We will provide technical support for your installation and operation. We can also send engineers to your country, if you need, for installing, debugging and operation of the machine. We warranty the quality of this machine for 12 months, if there is any problem with the machine, or any main parts are broken, we will repair it or replace new for free
