PE 10 Molds 1 Litre Blow Moulding Machine 2000kg 9000*1600*2000mm

1 set
MOQ
PE 10 Molds 1 Litre Blow Moulding Machine 2000kg 9000*1600*2000mm
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Automatic 10 Molds Rotary Ice Lolly Pipes Blow Molding Machine
Plastic Processed: PP
Speed: 5000pcs/h
Application: Bottle, Pipes
Dimension: 9000*1600*2000mm
Weight: 2000kg
High Light:

10 Molds 1 Litre Blow Moulding Machine

,

PE blow molding machine 2000kg

,

PE blow molding machine 9000*1600*2000mm

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO9001
Model Number: SQ-6
Payment & Shipping Terms
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets/month
Product Description
Name

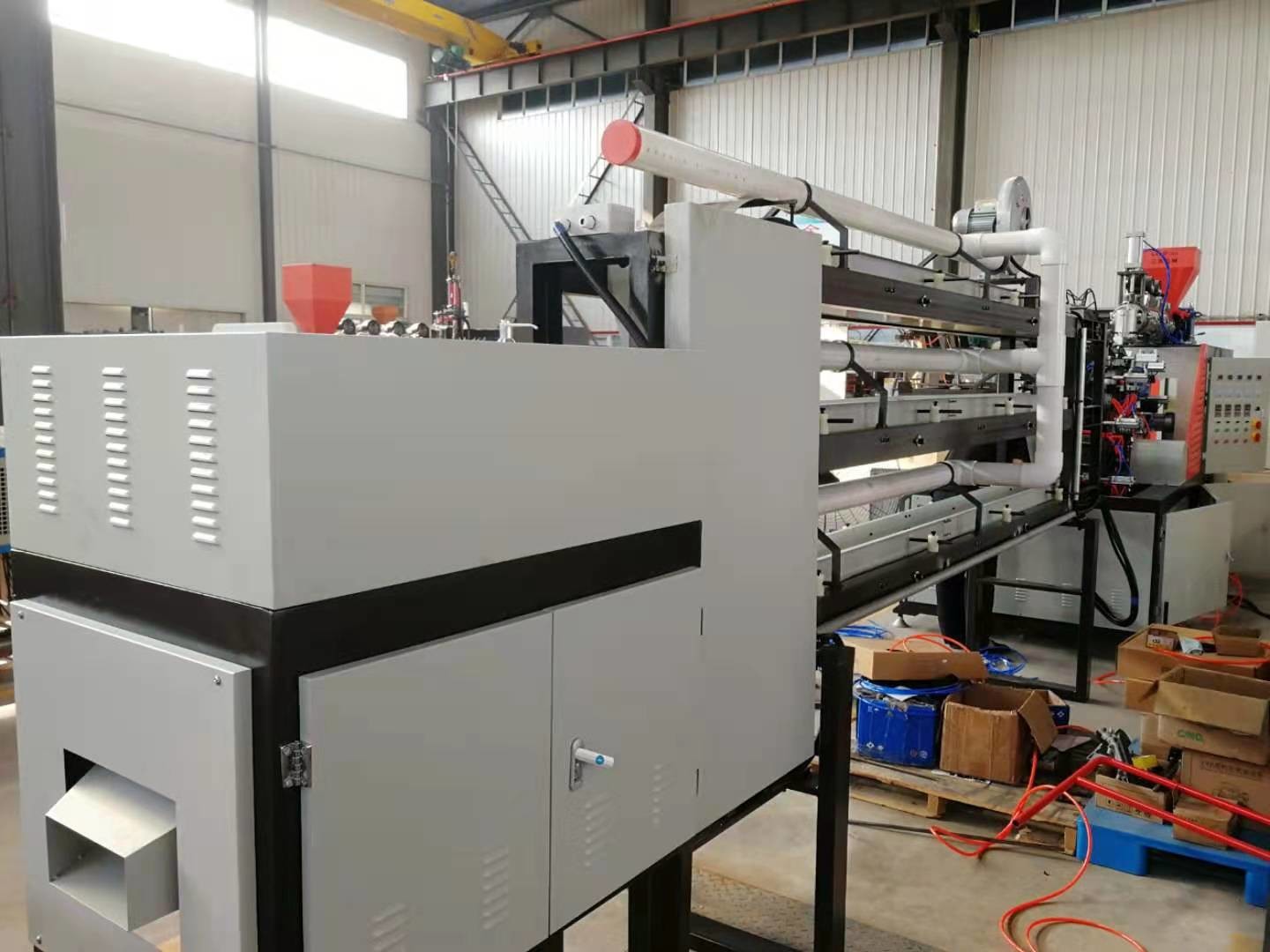

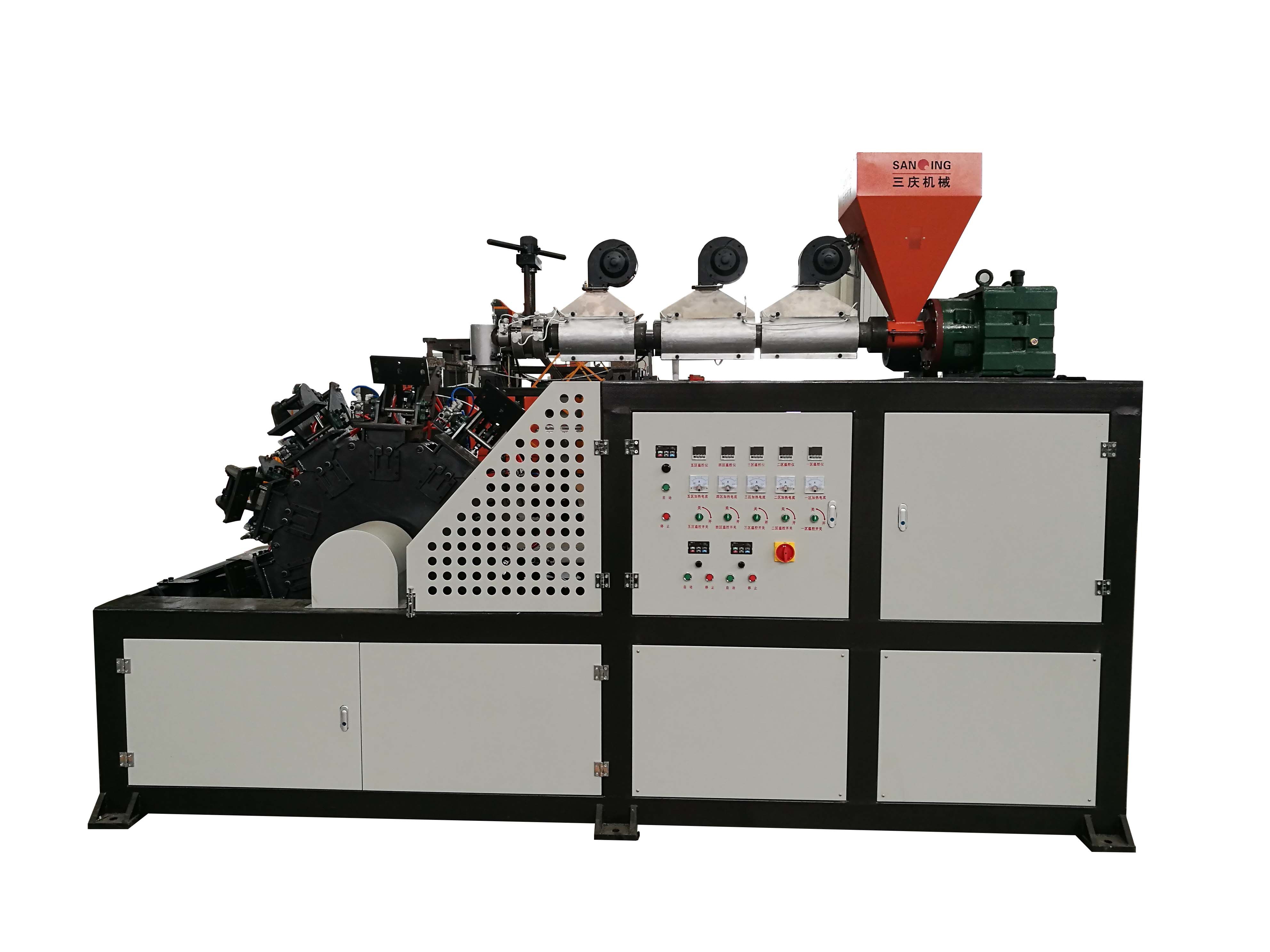

Automatic 10 Molds Rotary Ice Lolly Pipes Blow Molding Machine

Product Description

full automatic ice pop bottle production line suitable for big manufacturer

In case customer needs different weight of product, our machine have device to adjust weight follow customer requirement.

Our rotational machine is the fastest machine to produce LDPE products, because our machines are using 4 molds, 6 molds, 8 molds, 10 molds, 12 molds to produce at the same time. The production capacity of 6 molds machine could reach 3000 pieces per hour. 10 moulds machine could reach 5000 pcs per hour.

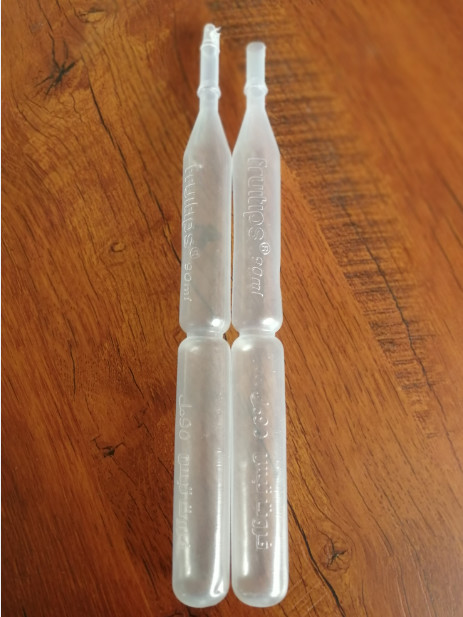

10 moulds machine are deisgned for produce ice lolly tubes and some LDPE products.



We provide different level of price to cater customer demand, we have connected type(extruder and blower), separate type(extruder and blower not connected), full automatic type, semi-automatic type of machines. We also have devices to de-flashing the waste part of bottle.



Main Components:

1. Gear Box

2. Frequency Control Inveter

3. Pneumatic Power

4. Temperature Controller

5. Moulds

6. Proximity Switch

7. Air Cylinders

8. Motors for extruder and Rotator

9. Screw from extruder



Parameter



Model

Parameters

4 work station 6 work station 8 work station
Max. Volume of Bottle(ml) 1000 1500 1500
Max. Dia. Of Bottle(cm) 7 10 10
Productive capacity(pcs/hour) 500-7000 1000-8000 1500-8000
Mould Size (L, W, H) (mm) 118x120x350 118x120x350 118x120x350
Motor Power(KW) 0.75 1.1 1.5
Air Consumption(m3/Min) 0.4
Product Weight(KG/Hour) 400 800 1000
Dimension(L, W, H)(mm) 1400x1000x1400 1600x1200x1500 1900x1700x1400
Applicable Raw Material PE, PP, PVC
Speed regulating method Frequency control of motor speed
