10kW 1 Litre Blow Moulding Machine

1 set

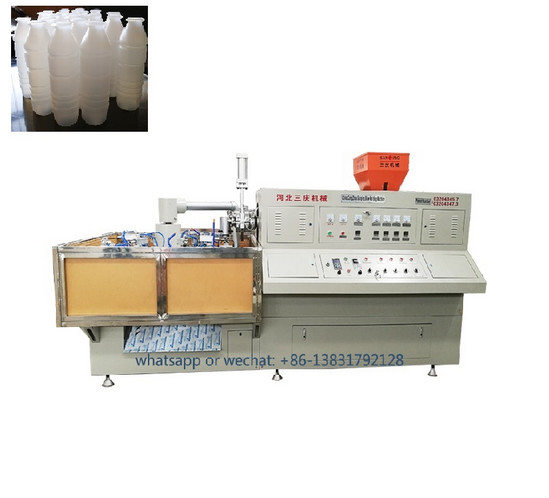

10kW 1 Litre Blow Moulding Machine
Features Gallery Product Description Request A Quote
Product Name: Rotary Blow Molding Machine For Fruit Jelly (Mango, Grape, Strawberry, Etc.)
Application: Bottle
Voltage: 220V/380V Or Customized
Power: 10kW
Weight: 1.3t
Model: SQ-6
High Light:

10kW 1 Litre Blow Moulding Machine


rotary blow molding machine 0.6m3/min


rotary blow molding machine 40KG/H

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO9001
Model Number: SQ-6
Payment & Shipping Terms
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets/month
Product Description
Product Name
Rotary Blow Molding Machine for Fruit Jelly (Mango, Grape, Strawberry, etc.)
Product Description

This machine is pneumatic machine,full automatic. simple ,cheap price machine. produce below 1000ml plastic bottle.




Parameter for Closing mold machine
Blow molding machine
NO. of die head 1
NO. of working stations 2
Air consumption 0.5-0.6m³/min
Raw material PE/PP
Weight 500 kg
Speed regulating method Frequency control
Max. volume 1000ml





Parameter for Extruder
Screw Diameter 55
Screw L/D ratio 25:1
Plasticizing capacity 40KG/H
Motor Power 7.5kw
Heating Power 6KW

Generally Power during working


Weight 800kg
