2 Station 3 Layer 5 Liter Blow Moulding Water Bottle Machine Plasticizing 70kg/H

1 set
MOQ
2 Station 3 Layer 5 Liter Blow Moulding Water Bottle Machine Plasticizing 70kg/H
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 5L Three Layers Double Station Blow Molding Machine For Jerry Can, Bucket And Hip Flask
Screw Diameter: 65mm
Condition: New
Warranty: 1 Year
Automation: Automatic
Certification: CE, ISO9001
Voltage: 380V
Dimension: 3400*2100*2200mm
High Light:

3 layer 5 Liter Blow Moulding Machine

,

2 station 5 Liter Blow Moulding Machine

,

Blow Molding Machine 70kg/h

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO9001
Model Number: SQ-11
Payment & Shipping Terms
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Supply Ability: 10 sets/month
Product Description
Product Name

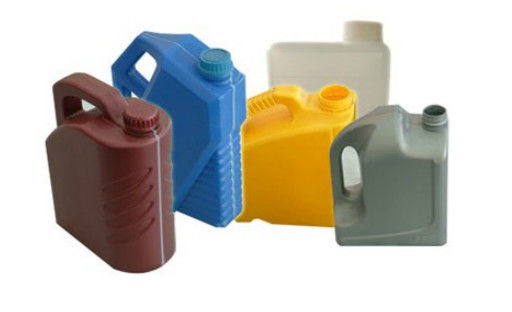

5L Three Layers Double Station Blow Molding Machine for Jerry Can, Bucket and Hip Flask

Product Description

This machine is suitable to produce bottles max. 5 Liters. Double stations single die head. It is equipped with auto deflashing
devices. the extra material could be cutted automatically. Cusotmer could choose to add with parison controller, which could
control the thickness very well. Each hour, it could produce 200-300 pcs bottles.

The machine is controlled by PLC system, operator could setup parameters by the LCD monitor.

Besides, customer could choose to add view strip for the bottles.



Specification
SPECIFICATIONS FOR BLOW MOLDING MACHINE
System
Item
Unit
Basic Parameters
Basic
Plastic fit for

PE/PP
Max hollow product volume
L
5
No. of Die head
SET
1
Size(LxWxH)
M
3.5*2.1*2.2
Weight
TON
5
No. of Working Station
Set
2
Molds
Clamping Force
KN
120
Template Distance
MM
220--620
Template Stroke

400
Max template size(WxH)
MM
480*500
Mould thickness
MM
225—300
Extrusion System
screw diameter
MM
75
Clading layer
MM
45
Clading layer
MM
45
Screw L/D ratio
L/D
25:1
(HDPE)Plasticizing capacity
KG/H
70
Screw heating zone
ZONE
4
Screw heating power
KW
16
Extrusion motor's power
KW
22
Die head
Die head heating zone
zone
3
Die head heating power
KW
9
Sprue-die dia.(max)
mm
180
Oil-pump motor power
KW
11
air pressure
Mpa
0.6--0.8
Average power
KW
35
Compressed air dosage
m³/min
1.5--2.5
Cooling water dosage
L/min
3--5

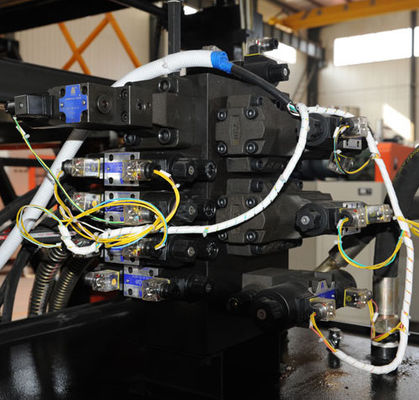

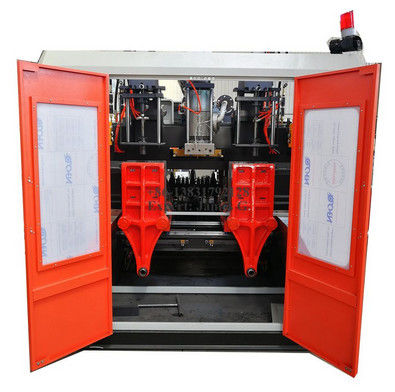

Details Images

2 Station 3 Layer 5 Liter Blow Moulding Water Bottle Machine Plasticizing 70kg/H 02 Station 3 Layer 5 Liter Blow Moulding Water Bottle Machine Plasticizing 70kg/H 1
