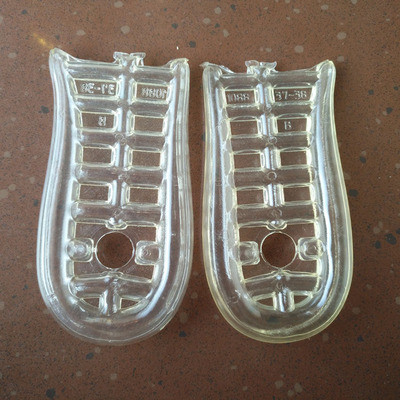

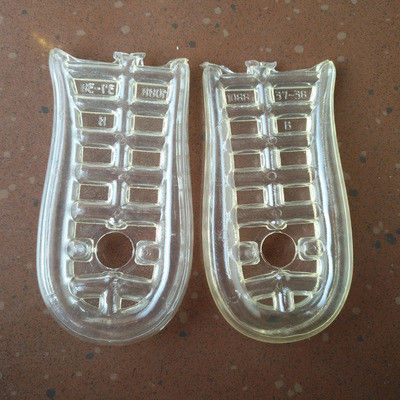

Hydraulic Shoe Insole Making Machine 68kN PE Blow Molding PLC Control

1 set
MOQ
Hydraulic Shoe Insole Making Machine 68kN PE Blow Molding PLC Control
Features Gallery Product Description Request A Quote
Features
Specifications
Name: PE/PP/TPU Automatic Hydraulic Blow Molding Machine
Dimension: 3400*1700*2100mm
Clamping Force: 68kN
Voltage: 380V Or Customized
Power: 22kW
Weight: 5t
High Light:

Hydraulic Shoe Insole Making Machine

,

68kN PE blow molding

,

PE blow molding PLC control

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO9001
Model Number: SQ-11
Payment & Shipping Terms
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Supply Ability: 10 sets/month
Product Description
Name

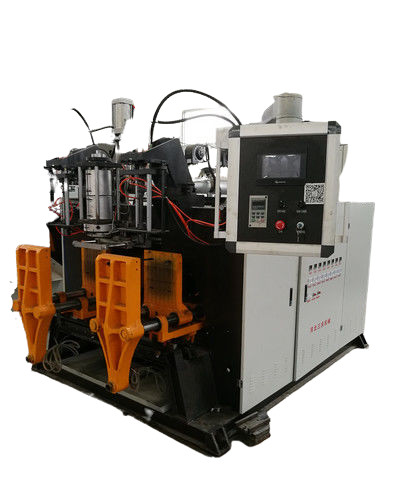

PE/PP/TPU Automatic Hydraulic Blow Molding Machine

Specification
SPECIFICATIONS FOR BLOW MOLDING MACHINE
Max. Product Size
10cm
Screw Dia.
65mm
Theoretical Production Capacity
800-1000 pcs/h
Screw Length/Dia. Rate
25:1
Die Heads
2
Plasticizing Rate
50kg/H
Air Consumption
0.5-0.6m³min
Motor Power
11kw
Raw Material
PE/PP
Heating Power
11kw
Weight
1300 kg
Main Machine Size
3400x2100x2200mm
Speed Regulating Method
PLC control

Mold Board Width
34mm

Mold Board Distance
35mm

Mold Board Height
32.6mm

Oil Pump Motor
5.5kw





Extrusion blow molding machine technical feature:

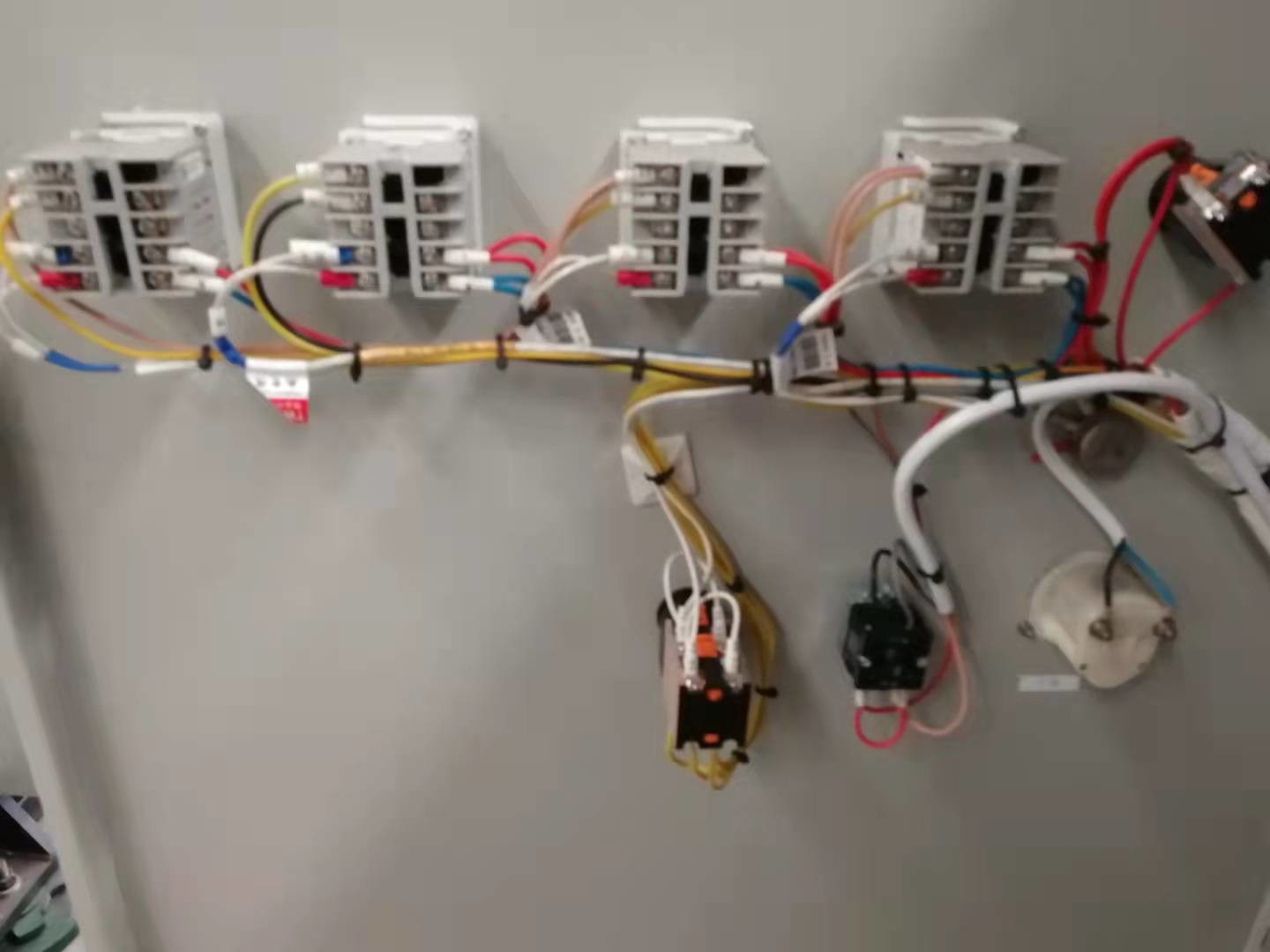

The electronic control system: Japan's Mitsubishi PLC computer and human-machine interface (English or Chinese) control, color touch-screen operation. All the process set to change, retrieval, monitoring, troubleshooting and other functions are implemented on the touch screen, no point of contact with the working principle, components and durable.



The hydraulic system: proportional pressure control, with imported brands Yuken hydraulic components, stable and reliable.



The plasticizing system: efficient plastics mixing screw, to ensure plasticizing full uniform.



The speed control system: alloy steel and hard gear reducer, speed stable, low noise, durable.



The opening and closing mold, mold transfer system: beam arm, three position, center locking clamping mechanism, to ensure long-term use. Clamping force balance, no deformation, the use of body translation mode (ball linear guide), high precision, low resistance, fast



Hydraulic Shoe Insole Making Machine 68kN PE Blow Molding PLC Control 0
