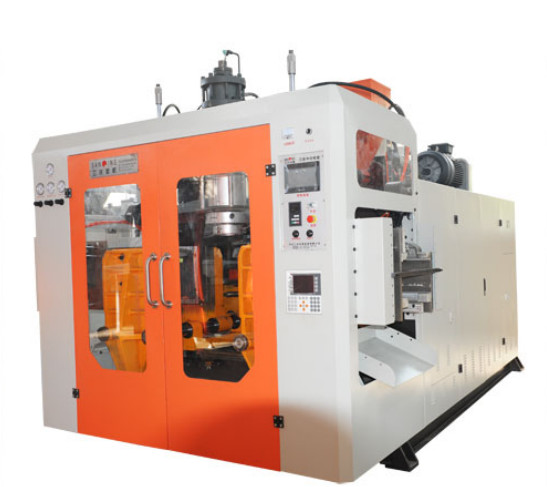

Tpu Air Cushion Extrusion Blow Moulding Machine Double Station
Product Details:
| Place of Origin: | Hebei, China |
| Brand Name: | Sanqing |
| Certification: | CE ISO9001 |
| Model Number: | SQ-9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Angle frame with outside wooden case |
| Delivery Time: | 45 days |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Name: | TPU Air Cushion Blow Molding Machine | Screw Diameter: | 75mm |
|---|---|---|---|
| Clamping Force: | 68kN | Dimension: | 3750*2100*2200mm |
| Voltage: | 380V | Blow Moulding Type: | Extrusion Blow Moulding |
| High Light: | tpu extrusion blow moulding machine,air cushion extrusion blow moulding machine,tpu double station blow molding machine |
||
Product Description
Name
TPU Air Cushion Blow Molding Machine
Product Description

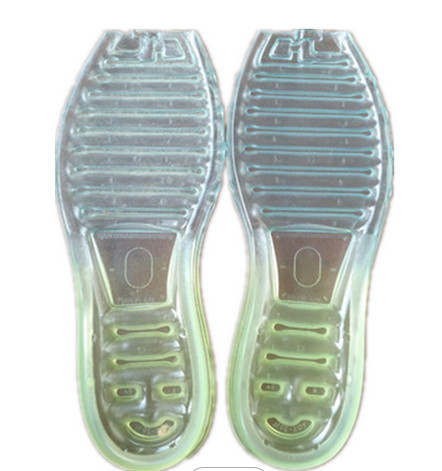

Special blow molding equipment for TPU air cushion of sports shoes and leisure shoes. This machine is specially used for the production of air cushion of shoes materials, including: forefoot, half foot, full foot, all kinds of TPU air cushion. Air cushion blow molding machine has been supplied to many shoe enterprises.
Specification
|
SPECIFICATIONS FOR BLOW MOLDING MACHINE
|
|||
|
Max. Product Size
|
10cm
|
Screw Dia.
|
65mm
|
|
Theoretical Production Capacity
|
800-1000 pcs/h
|
Screw Length/Dia. Rate
|
25:1
|
|
Die Heads
|
2
|
Plasticizing Rate
|
50kg/H
|
|
Air Consumption
|
0.5-0.6m³min
|
Motor Power
|
11kw
|
|
Raw Material
|
PE/PP
|
Heating Power
|
11kw
|
|
Weight
|
1300 kg
|
Main Machine Size
|
3400x2100x2200mm
|
|
Speed Regulating Method
|
PLC control
|
||
|
Mold Board Width
|
34mm
|
||
|
Mold Board Distance
|
35mm
|
||
|
Mold Board Height
|
32.6mm
|
||
|
Oil Pump Motor
|
5.5kw
|
||
Main Features

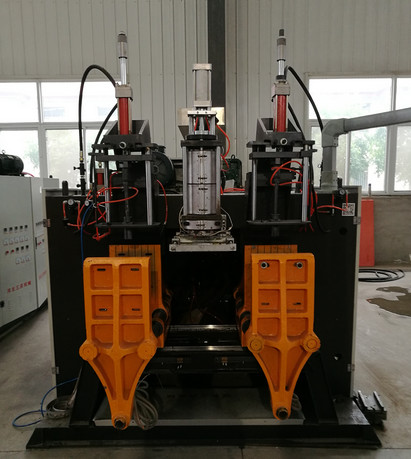

This machine is full automatic multi-die heads blow molding machine with hydraulic closing moulds and pneumatic move moulds.This machine is suitable to produce sauce bottle,seabll,detergent bottle,milk bottle and medinine bottle etc.This machine is controlled by PLC system,with characters as high stability,less resistance,high precision and full antomatic etc.Also unattended operation can be achieved.
This machine is full automatic multi-die heads blow molding machine with hydraulic closing moulds and pneumatic move moulds.This machine is suitable to produce sauce bottle,seabll,detergent bottle,milk bottle and medinine bottle etc.This machine is controlled by PLC system,with characters as high stability,less resistance,high precision and full antomatic etc.Also unattended operation can be achieved.
1: hydraulic blow molding machine can make cutting mouth bottle and shooting mouth bottle.
2: it suitable to make the plastic engine oil bottle, laundry bottle,wine bottle,plastic bucket,plastic tool box and HDPE milk bottle etc, also TPU products is OK.
3:full automatic : full automatic cutting top and bottom . no need people.
4:PLC control , high precision.
5: can 2,3 or 4 bottle in one mold, high production capacity
6: double working stations, more stable
7: the plastic child bike spareparts also can be made by hydraulic blow molding machine
8: the max.volume is 5L, double working stations
