3000mL 4kN Automatic Bottle Making Machine 1300kg PLC Control

1 set
MOQ
3000mL 4kN Automatic Bottle Making Machine 1300kg PLC Control
Features Gallery Product Description Request A Quote
Features
Specifications
Name: SQ-3L Automatlc Blow Molding Machine, Automatic Bottle Making Machine For Bottles Within 3L
Material: Stainless Steel
Hollow Part Volume: 3000mL
Warranty: 1 Year
Key Selling Point: High Productivity
Clamping Force: 4kN
Automatic: Yes
Weight: 1.3t
High Light:

4kN Automatic Bottle Making Machine

,

3000mL bottle making equipment

,

bottle making equipment 1300kg

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO9001
Payment & Shipping Terms
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Supply Ability: 50 sets/month
Product Description
Product Name
SQ-3L Automatic Blow Molding Machine, Automatic Bottle Making Machine for Bottles within 3L


Product Description



Main Features
This machine is full automatic multi-die heads blow molding machine with hydraulic closing moulds and pneumatic move moulds.This machine is suitable to produce sauce bottle,seabll,detergent bottle,milk bottle and medinine bottle etc.This machine is controlled by PLC system,with characters as high stability,less resistance,high precision and full antomatic etc.Also unattended operation can be achieved.



Specification
SPECIFICATIONS FOR BLOW MOLDING MACHINE
Max. Product Size
10cm
Screw Dia.
65mm
Theoretical Production Capacity
800-1000 pcs/h
Screw Length/Dia. Rate
25:1
Die Heads
2
Plasticizing Rate
50kg/H
Air Consumption
0.5-0.6m³min
Motor Power
11kw
Raw Material
PE/PP
Heating Power
11kw
Weight
1300 kg
Main Machine Size
3400x2100x2200mm
Speed Regulating Method
PLC control

Mold Board Width
34mm

Mold Board Distance
35mm

Mold Board Height
32.6mm

Oil Pump Motor
5.5kw

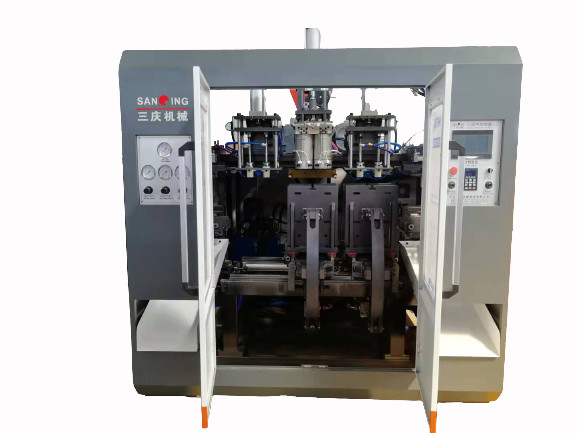

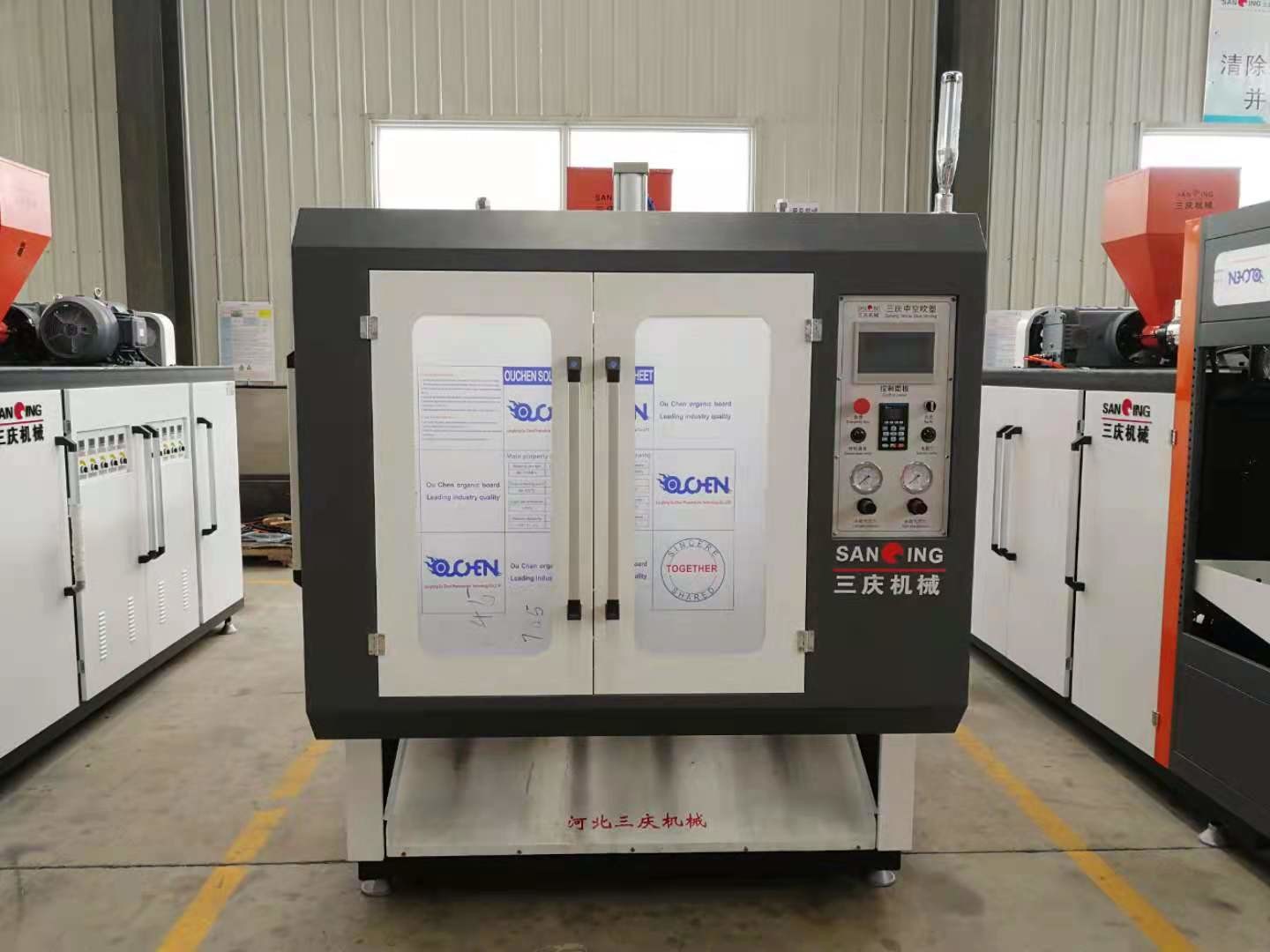

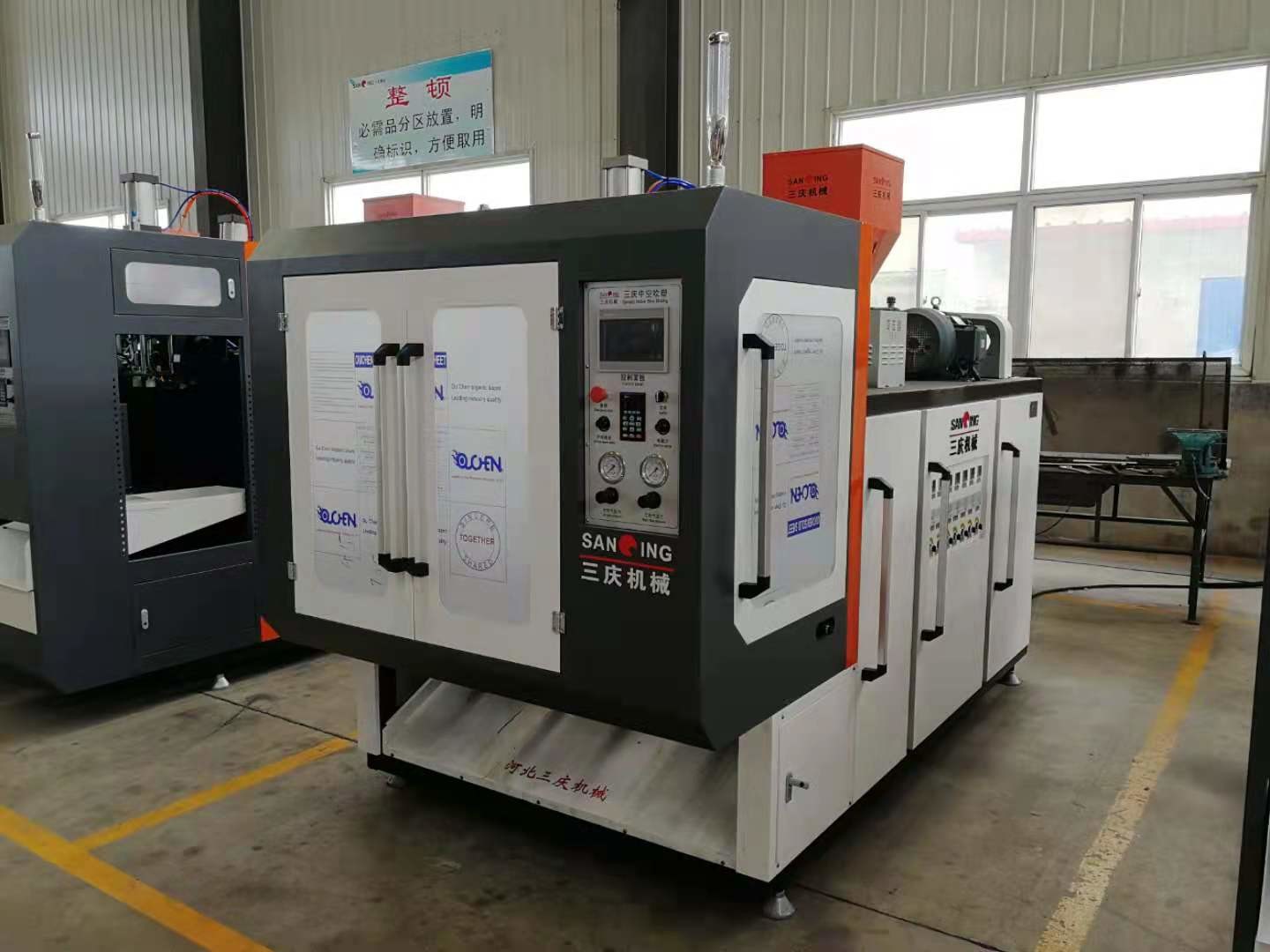

Details Images
3000mL 4kN Automatic Bottle Making Machine 1300kg PLC Control 0
3000mL 4kN Automatic Bottle Making Machine 1300kg PLC Control 1
3000mL 4kN Automatic Bottle Making Machine 1300kg PLC Control 2
3000mL 4kN Automatic Bottle Making Machine 1300kg PLC Control 3


Company Profie
3000mL 4kN Automatic Bottle Making Machine 1300kg PLC Control 4
3000mL 4kN Automatic Bottle Making Machine 1300kg PLC Control 5
3000mL 4kN Automatic Bottle Making Machine 1300kg PLC Control 6
3000mL 4kN Automatic Bottle Making Machine 1300kg PLC Control 7
3000mL 4kN Automatic Bottle Making Machine 1300kg PLC Control 8
3000mL 4kN Automatic Bottle Making Machine 1300kg PLC Control 9
