300PCS/HR Jar Blow Molding Machine 15CM Plastic Bucket Making 0.4m3/Min

300PCS/HR Jar Blow Molding Machine 15CM Plastic Bucket Making  0.4m3/Min
Features Gallery Product Description Request A Quote
Name: HDPE Plastic Bucket/Container Blow Molding Machine
Material: HDPE/PP
Screw Diameter: 65/75mm
Product Volume: 500ML- 3 Liter
Machine Weight: 3 Ton
Dimension: 4x2.2x2m
Motor Power: 11.5/18.5 KW
Production Capacity: 200-400 PCS/HR
Air Consumption: 0.4-0.6m3/min 8KG
Chiller: Air Cooling 5HP
Water Consumption: Can Be Recycle
Electricity: 380V 3 Phases 4 Wires
Heating Power: 12KW
High Light:

300PCS/HR Jar blow molding machine


plastic bucket making machine 0.4m3/min


15CM hdpe bottle making machine

Basic Infomation
Place of Origin: Cangzhou, China
Brand Name: Sanqing
Certification: CE
Model Number: SQ-11
Payment & Shipping Terms
Packaging Details: Wooden Case Package
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 50 Sets Per Month
Product Description

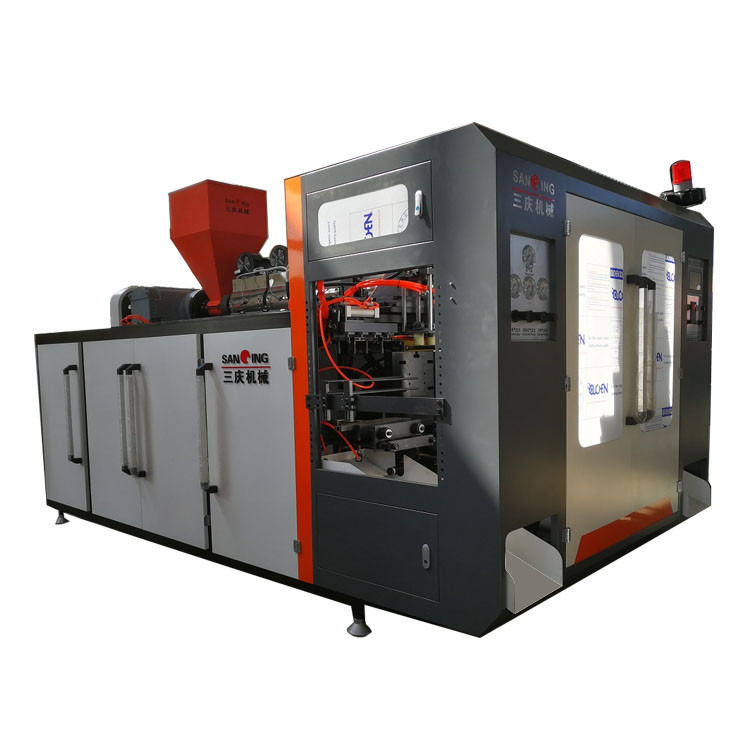

HDPE Plastic Bucket/Container Blow Molding Machine


          This type HDPE plastic bucket/container blow molding machine is suitable to produce 3 liter and small bottles under 3 liter, such as milk bottles, barrels, jars, water bottles, etc.

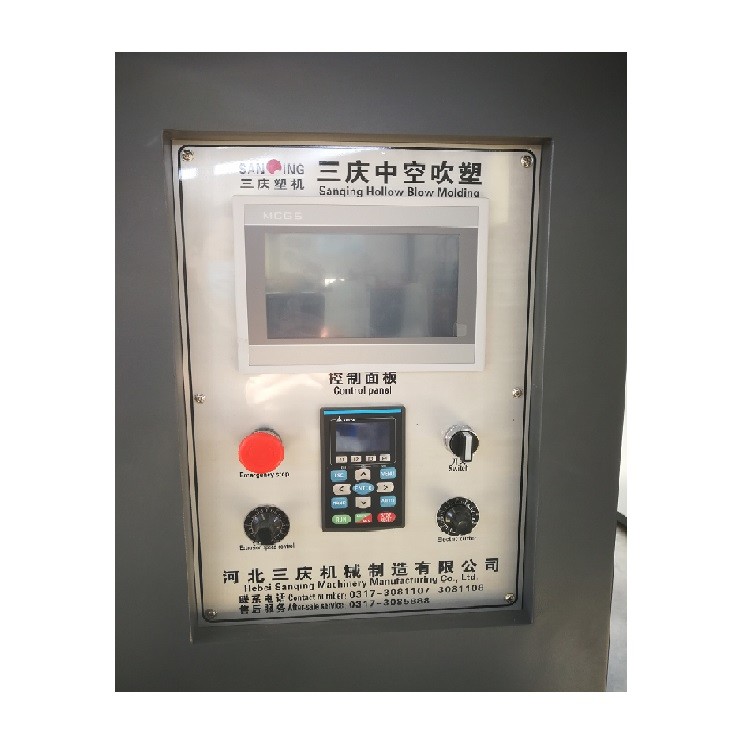

          The small bottle machine could produce hollow products with material HDPE/LDPE/PP. The machine could operate easily with PLC control system, once operator setup the parameters, the machine could work smoothly without people attention.

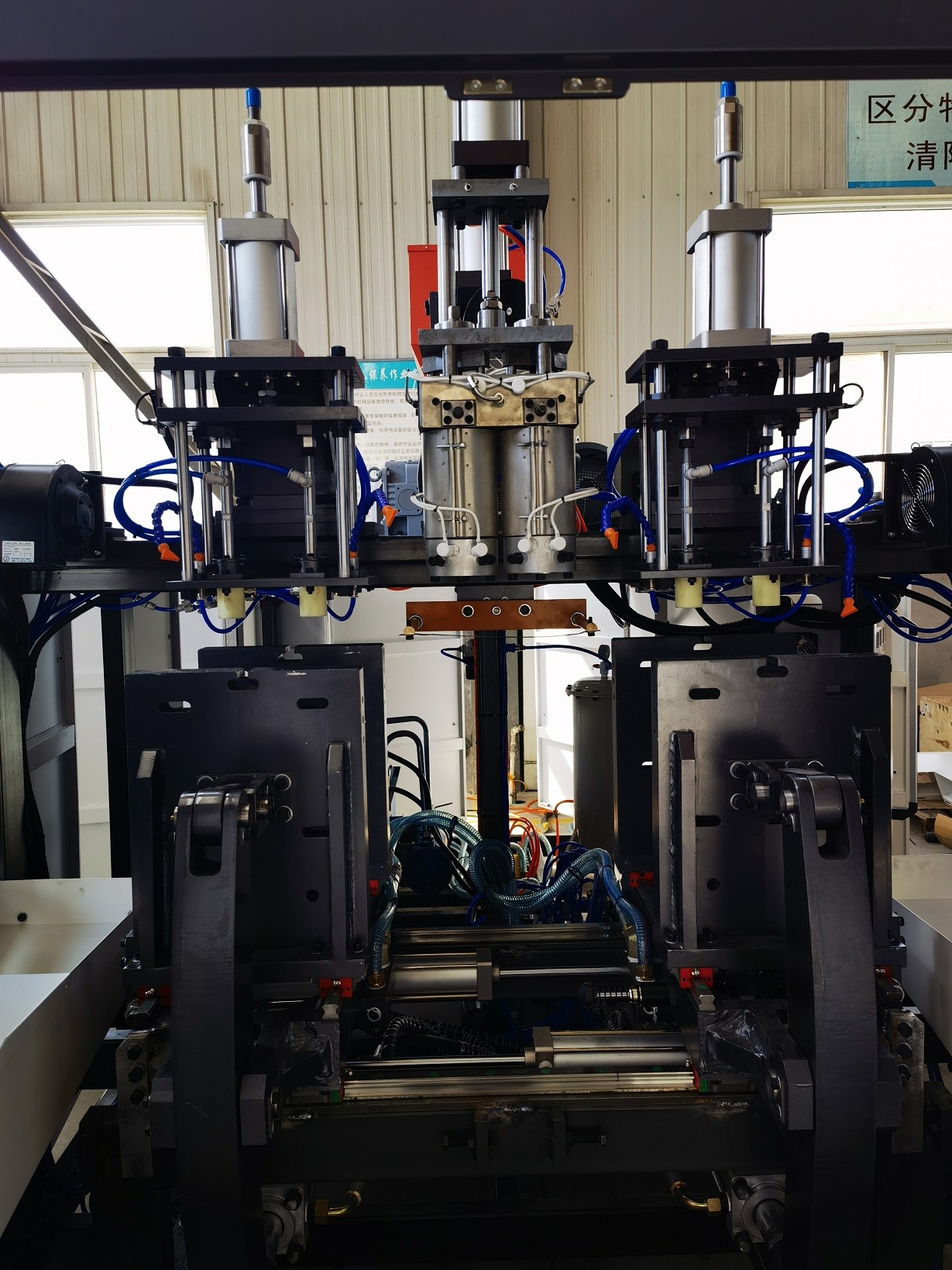

         The machine equipped with automatic cutting devices, the waste material could be cutted directly. The die heads could be 1,2,3, 4, so that the production capacity could be fourth times higher.


         The machine is double stations, die heads could be 1-4, so the molds should be reflected accordingly. The production capacity could be faster than only single die head. This machine also could install parison controller system, customer could control the wall thickness easily by parison controller.  For small bottles, the die head could be three or four, customer could choose the quantity based on their needs.


         This machine require 0.6m3/min 8KG air compressor, customer have to prepare the air compressor for machine operation. Chiller, crusher, auto loader is also needed for this kind of machine. Chiller help to cool the molds; crusher will break the waste material to be pieces and re-use again. Auto loader will help customer pump material to the hopper of the extruder.


         Cooling Water will be needed for the molds cooling process. Usually 5HP chiller is necessary for the blowing machine.




Name             Item
Max. Bottle Volume  3L
Max. Product Dia. 15CM
Production Capacity 400 PC/HR
Allowable Mold Width 230mm
Allowable Mold Thickness 110-230mm
Air Consumption 0.6m3/min
Weight 3 Ton
Dimension 4x2.2x2m
Raw Material HDPE/LDPE/PP
