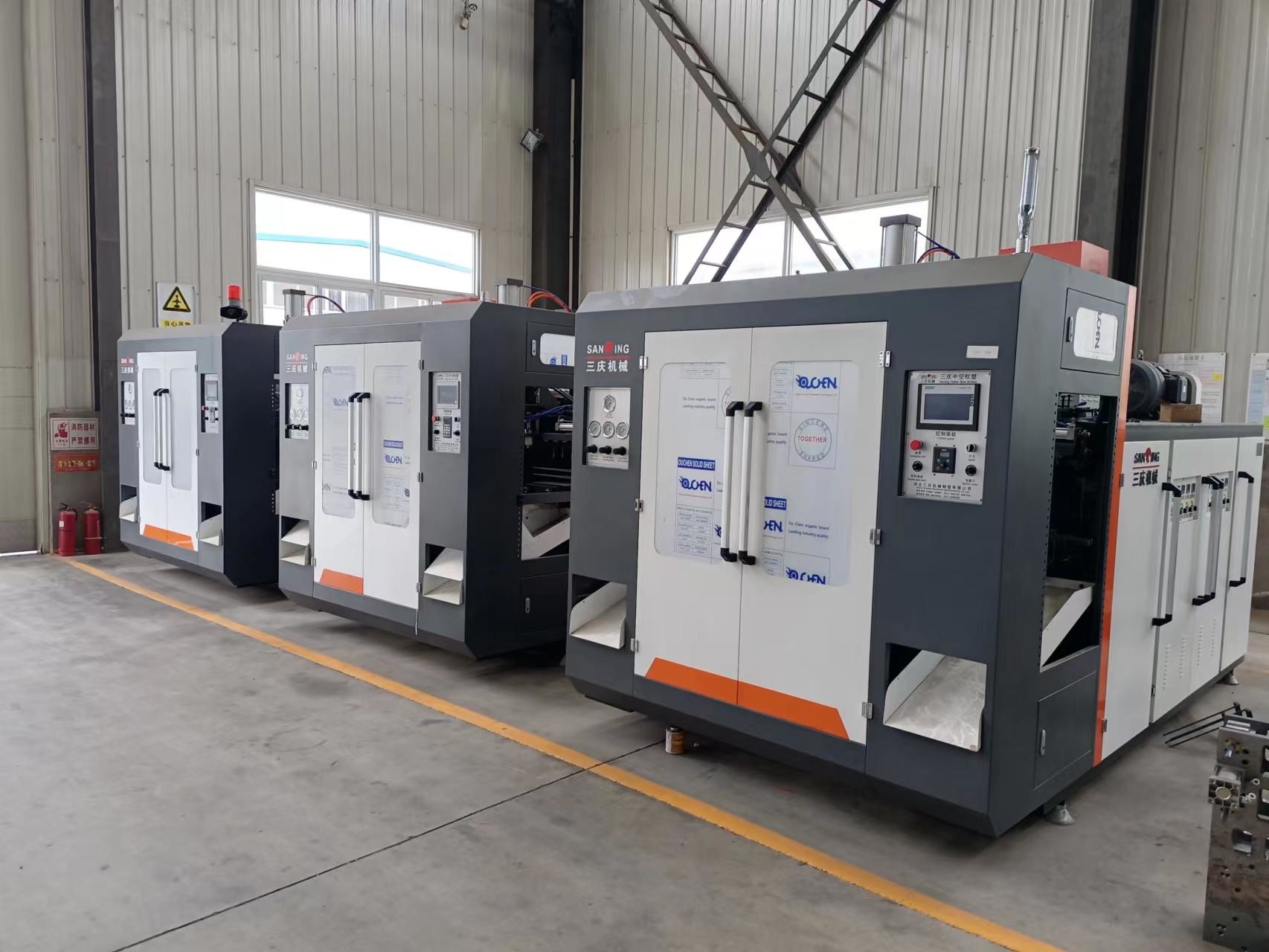

3l Milk Bottle Blow Moulding Machine Single Or Multi Cavities

3l Milk Bottle Blow Moulding Machine Single Or Multi Cavities

Product Details:

Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO
Model Number: SQ-11

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets/month
Get Best Price Contact Now

Detail Information

Name: 3L Milk Bottle Blow Molding Machine, Single Or Multi Cavities Bottle Making Machine Condition: Latest
Weight: Depends On Setup Power: 18kW
Application: Ocean Balls, Jerry Can Voltage: Customized
High Light:

3l milk bottle blow moulding machine

,

multicavities milk bottle blow moulding machine

,

3l milk bottle blow molding machine

Product Description

Name

3L Milk Bottle Blow Molding Machine, Single or Multi Cavities Bottle Making Machine



Product Description

This type of machine applies both hydraulic power and pneumatic power altogether, it provides a proven effect on saving electricities costs.

This machine could produce ocean ball, milk bottle, wet wipe canister, laundry detergent bottle, etc.

Average working Power: (15KW/H)



Based on the previous experiences, the full hydraulic machines are easily leaked, which would pollute the worksite. And even more, it is very energy consuming.

This Machine is a Hydraulic system to close molds and a pneumatic system to move molds.

Therefore it would save about 30% of power compared to the traditional hydraulic machines.



1,Screw Diameter) : 75mm

2, (L/D ratio) : 25:1

3, (Motor Power) : 15kw

4, (Screw Speed) :20-60r/min

5,(Max. Plasticizing capacity) : 60kg/h

6, (No. of die head) :2

7, (Distance of die head center) :110mm

8, (Max. Clamping force) :35KN

9, (Working Pressure) :0.6-0.8Mpa

10, (Max. bottle volume) :3000ml

11, (Weight):3500kg

12, (Way of control):(PLC computer control)

13, (Way of control speed):(Frequency control)

14,(Size):L*W*H=2.5M*2.1M*1.7M)

15,(Average Power): (15KW/H)

Full Automatic Seaball Blowing Machine:



soft LDPE pool  toy plastic ball pits balls  making machine blow moulding machinesoft LDPE pool  toy plastic ball pits balls  making machine blow moulding machinesoft LDPE pool  toy plastic ball pits balls  making machine blow moulding machinesoft LDPE pool  toy plastic ball pits balls  making machine blow moulding machine
