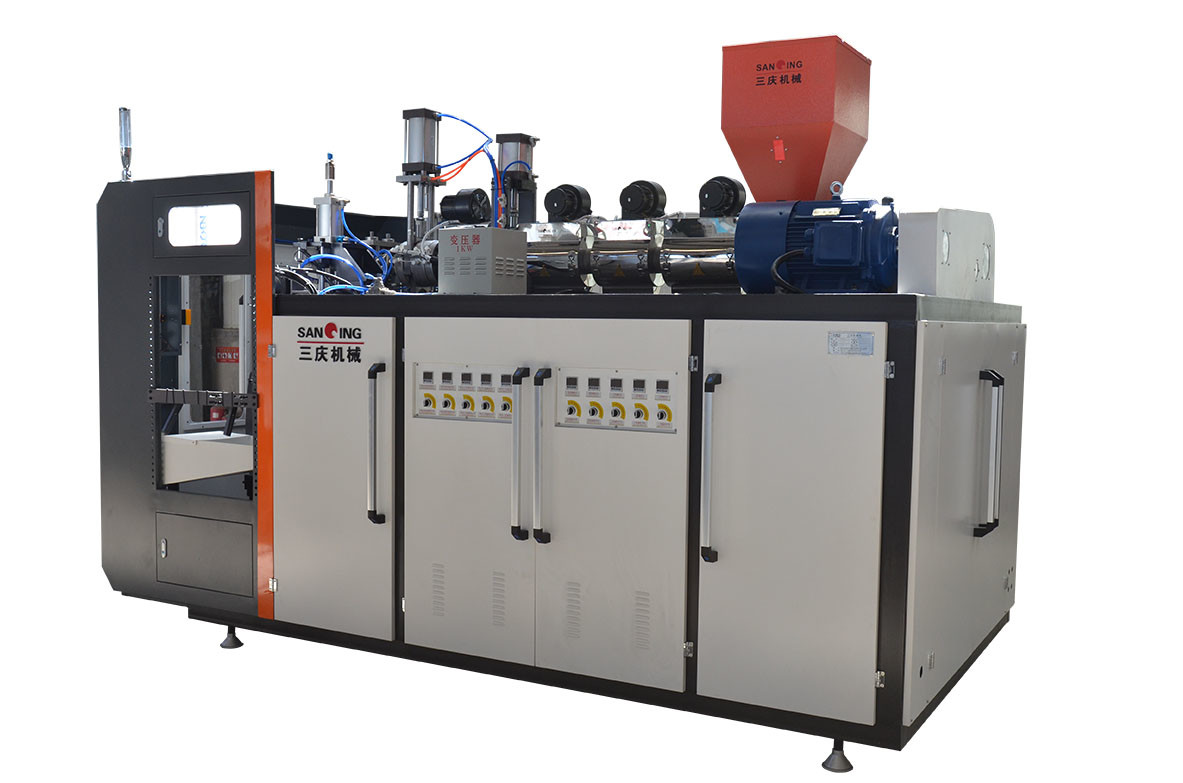

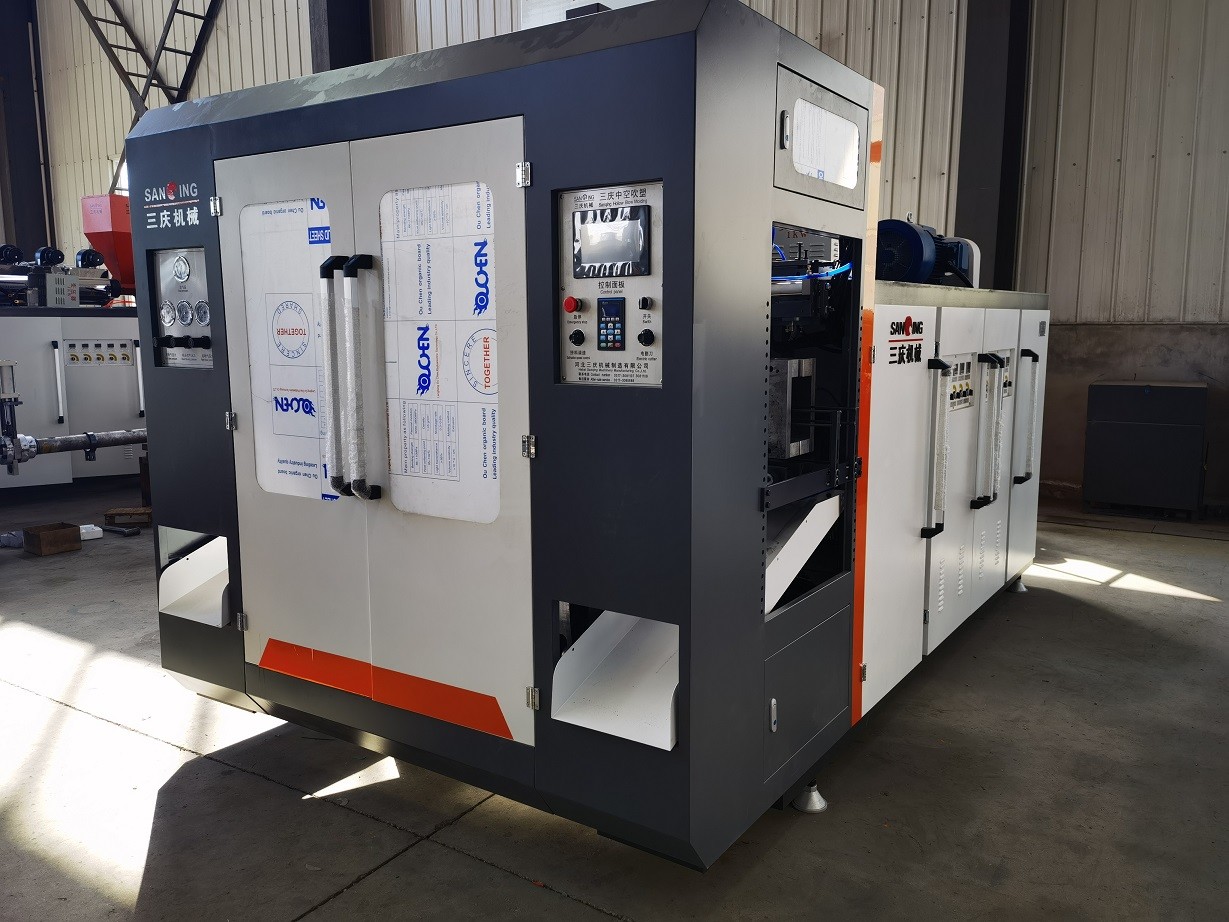

Sanqing Double Station 3000ml Hdpe Bottle Manufacturing Machine 400 PC/HR
|Place of Origin:||Cangzhou, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 SET|
|Packaging Details:||Wooden Case Package|
|Delivery Time:||45 Days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||50 Sets Per Month|
|Name:||3L HDPE LDPE Bottle Making Machine Price||Material:||HDPE/LDPE|
|Screw Diameter:||75mm||Product Volume:||1- 3 Liter|
|Machine Weight:||3 Ton||Dimension:||4x2.2x2m|
|Motor Power:||18.5 KW||Production Capacity:||200-400 PCS/HR|
|Air Consumption:||0.6m3/min 8KG|
3000ml hdpe bottle manufacturing machine,
hdpe bottle making machine 400 PC/HR,
Sanqing double station blow molding machine
3L HDPE LDPE Bottle Making Machine Price
This type 3L HDPE LDPE bottle making Machine is suitable to produce Max. 3 liter products, such as barrels, jars, water bottles, etc.
The 3L machine could work with HDPE/LDPE/PP material. The machine could operate easily with PLC control system, once operator setup the parameters, the machine could work smoothly.
The machine equipped with automatic de-flashing devices, the waste material could be cut off directly. The die heads could be 1 to 4, so that the production capacity could be fourth times higher.
The machine is double stations, die heads could be single, double, triple or quadruple. The production capacity could be faster than only single die head.
|Max. Bottle Volume||3L|
|Max. Product Dia.||15CM|
|Production Capacity||400 PC/HR|
|Allowable Mold Width||230mm|
|Allowable Mold Thickness||110-230mm|
