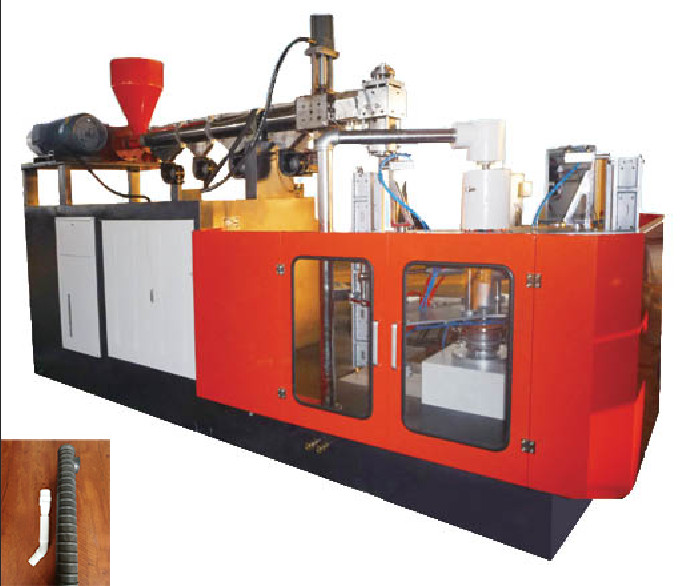

Dia 75mm Plastic Pipe Manufacturing Machine
Product Details:
| Place of Origin: | Hebei, China |
| Brand Name: | Sanqing |
| Certification: | CE ISO9001 |
| Model Number: | SQ-9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Angle frame with outside wooden case |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Name: | Blow Molding Machine For Long Pipes, High Quality Blow Molding Machine For PE Pipes | Output: | 70kg/h |
|---|---|---|---|
| Screw Diameter: | 75mm | Warranty: | 12 Months |
| Dimension: | 3400*1800*2300mm | Air Pressure: | 0.8MPa |
| High Light: | PE plastic pipe manufacturing machine,1500PCS/H pneumatic molding machine,dia 75mm plastic pipe manufacturing machine |
||
Product Description
Name
Blow Molding Machine for Long Pipes, High Quality Blow Molding Machine for PE Pipes
Product Description
1: extrusion blow molding system
2: PLC computer control, high precision
3: double working stations , high production capacity
4: max. PE pipe length is about 1M
5: wall thickness controller can uniform the pipe wall thickness
6: Screw diameter: 75mm
7: Screw L/D ratio: 25:1
8: CE certificate
9: production capacity : 800-1500PCS/H
10: molds cooler is good

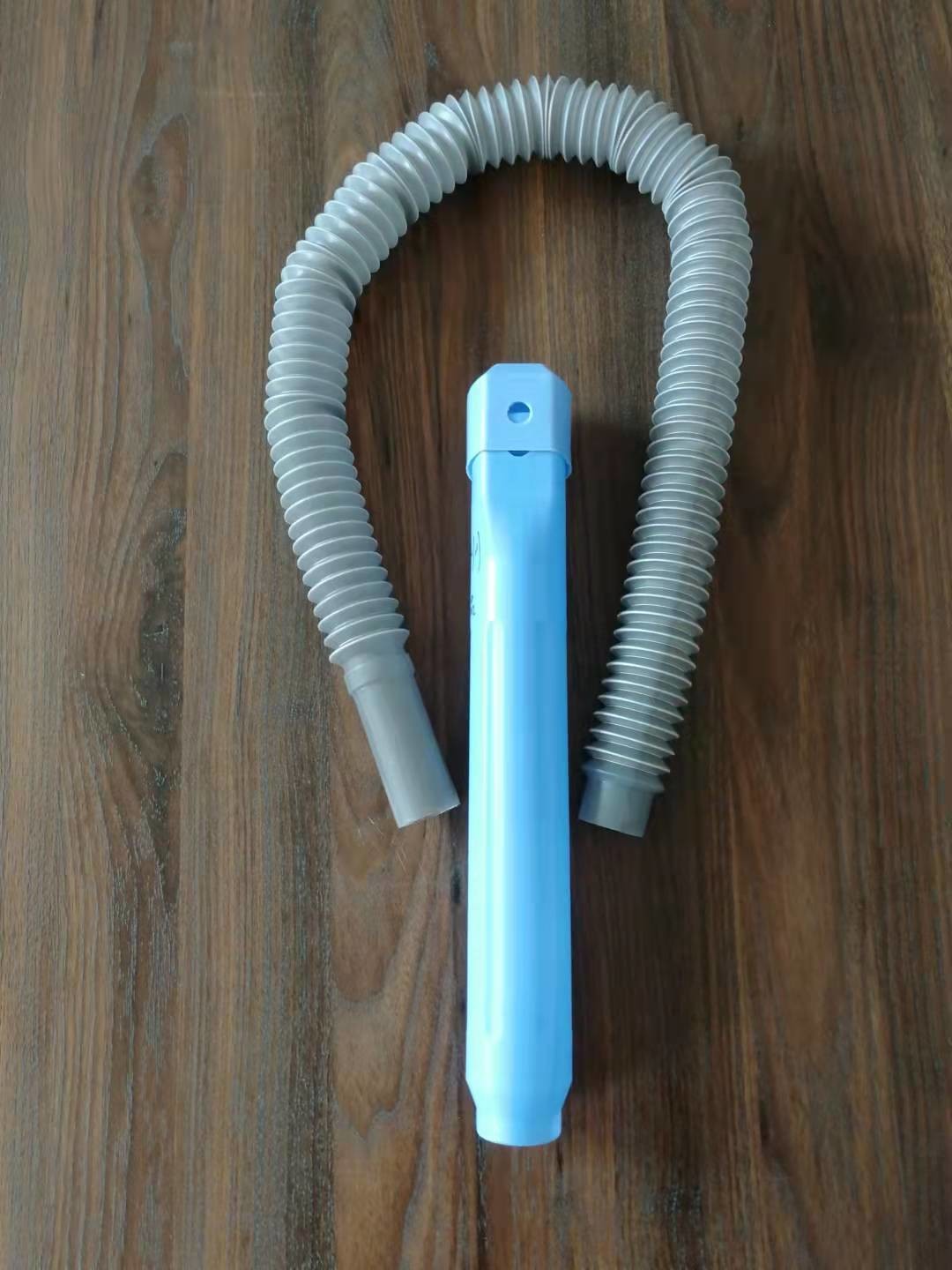

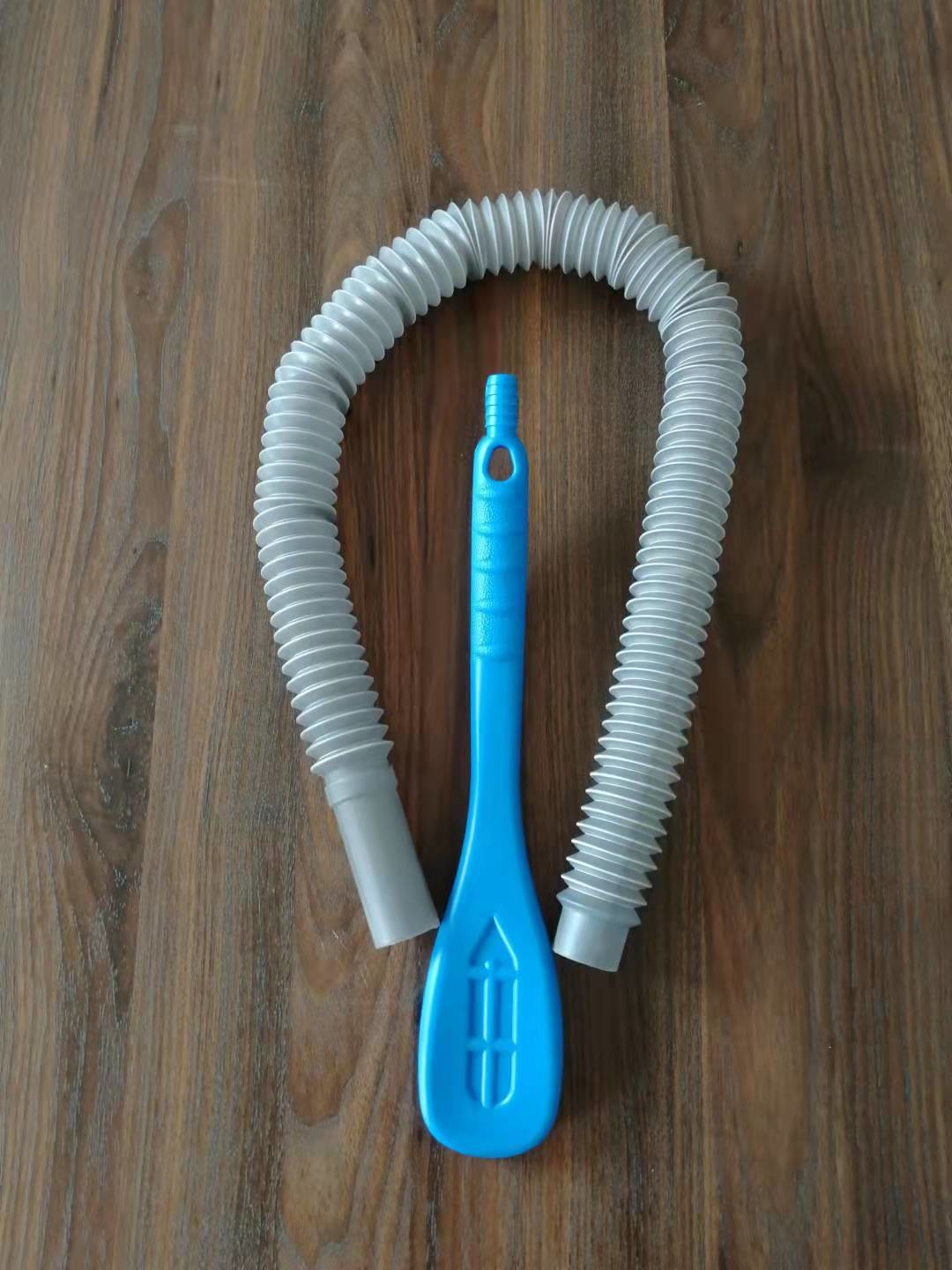

11: suitable to make : washing machine pipe, sewer tube, seeding machine tube etc.
Parameter
| ITEM | PARAMETER |
| the length of the product mm | 800-1100 |
| the quantity of the mould head | 1 |
| the quantity of the mould | 2 |
| production capacity | 700-800 |
| screw diameter mm | 65 |
| L/D screw L/D | 25:1 |
| the max quantity of extrusion HDPE kg/h | 55 |
| mould-locking type | pneumatic |
| the max mould dimension | 140×100×1200 |
| blowing pressure mpa | 0.4-0.6 |
| gas consumption m3/min | 0.3 |
| cooling pressure Mpa | 0.2-0.3 |
| the electric power of the extruder machine KW | 11 |
| The heating power of the extruder machine KW | 9.5 |
| L*W*H mm | 3400×1400×2200 |
| weight KG | 1400 |
| the suitable raw material | PE/PP |
