300 PCS/HR 5000ml PE Jerry Can Blow Molding Machine PLC Control
Product Details:
| Place of Origin: | Cangzhou, Hebei |
| Brand Name: | Sanqing |
| Certification: | CE |
| Model Number: | SQ-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | Wooden Case |
| Delivery Time: | 45 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 SET/Month |
|
Detail Information |
|||
| Title: | 5L Jerry Cans Blow Molding Machine | Motor Power: | 18.5 KW |
|---|---|---|---|
| Heating Power: | 15 KW | Max. Product Volume: | 5L |
| Screw Dia.: | 75mm | Hydraulic Motor Power: | 5.5 KW |
| Screw L/D Ratio: | 25:1 | Max. Product Dia.: | 18 CM |
| Mold Thickness: | 150-220 | Mold Board Distance: | 230 |
| Raw Material: | PE/PP | ||
| High Light: | 5000ml jerry can blow moulding machine,300 PCS/HR jerry cans blow molding machine,PE blow molding machine PLC control |
||
Product Description

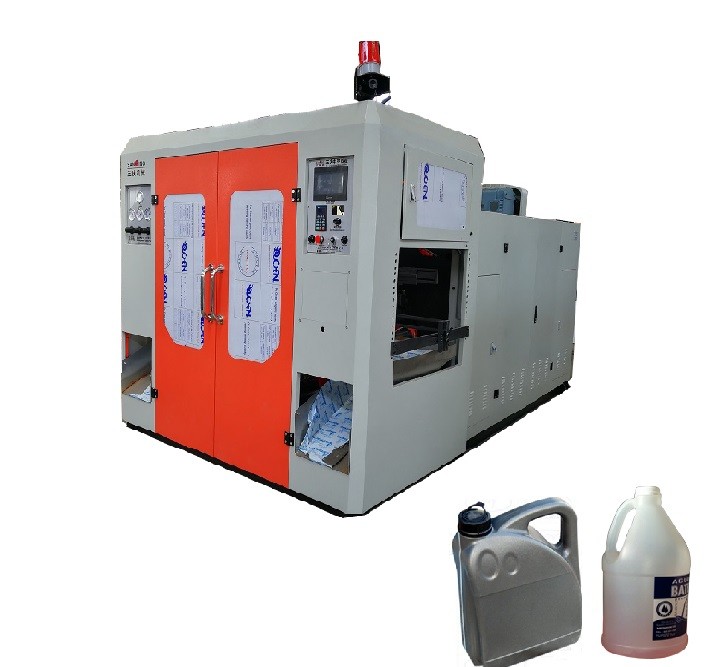

5L jerry cans blow molding machine
Equipment introduction:

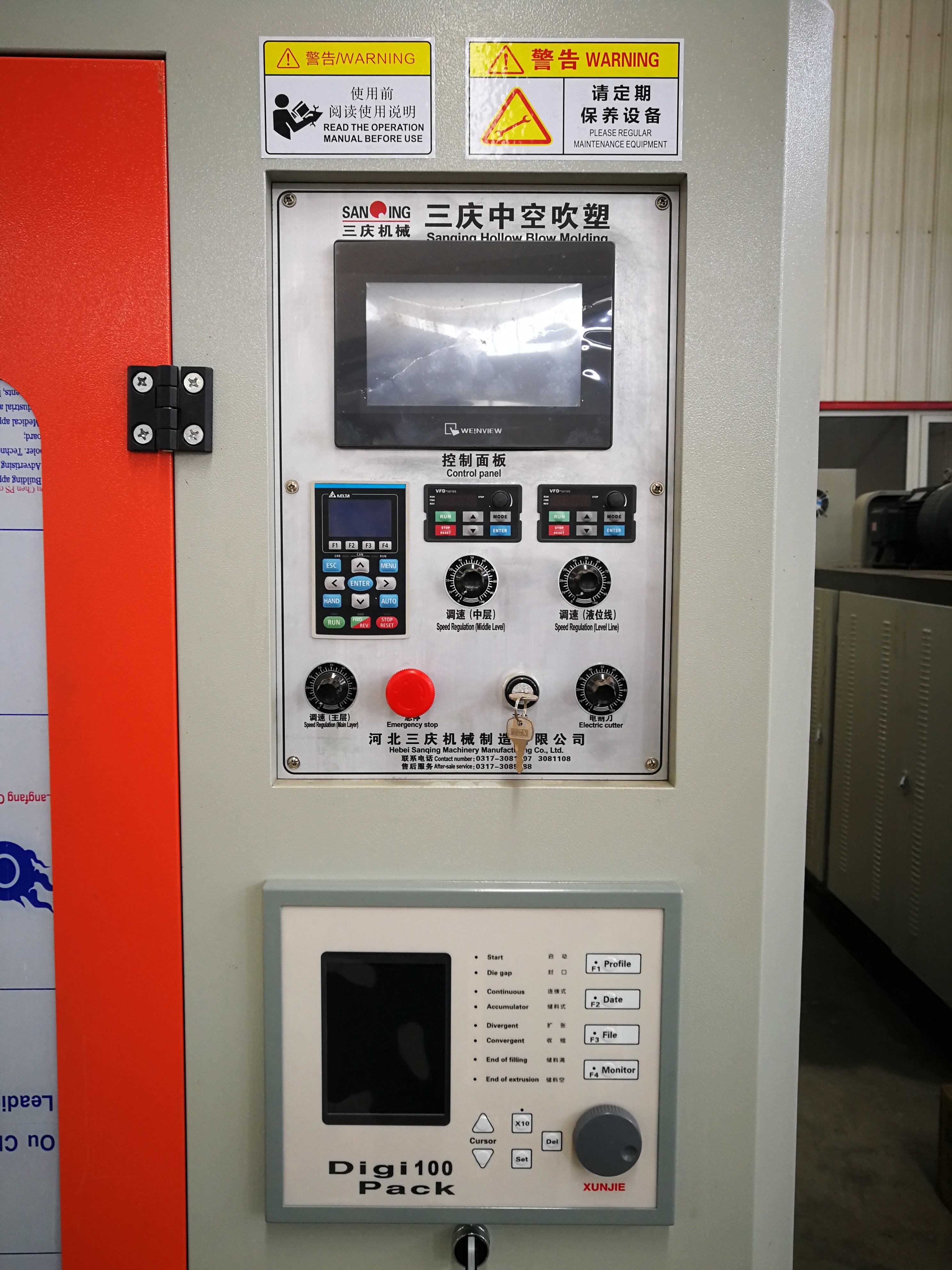

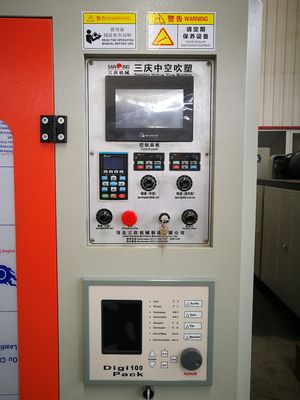

1: Our Machine is controlled by PLC system, the operation is stable.
2: The Machine could produce Max. 5L bottles.
3: If customer would like to arrange high output production, we are able to produce 2, 3, 4 cavities per mold, but the bottle diameter should be smaller.
4:The material suitable for this machine is HDPE/LDPE/PP.
Product features:

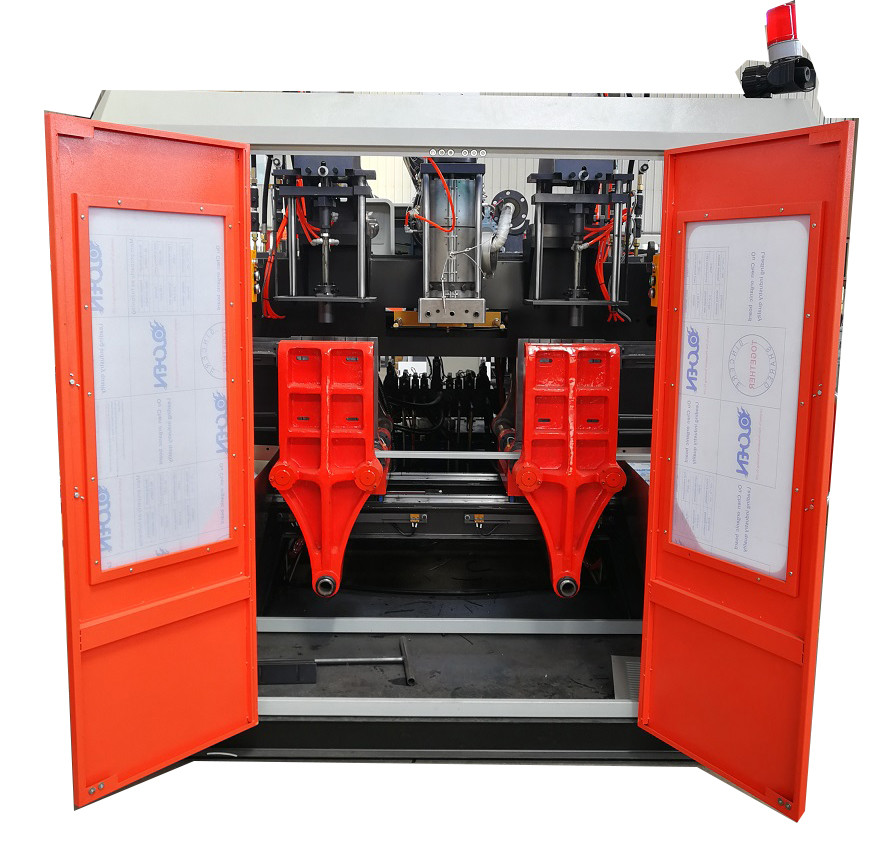

1, This machine is powered by hydraulic power, the big power of molds action is good for producing good products.
2, The machine is stable operation, the machine could operate without people attention.
3, The machine could equipped with parison controller, the thickness of the product could be controlled.
SPECIFICATIONS FOR 5 L Blow Molding Machine | |||
Product Range | Max. Product Volume | 5 L | |
Product Max. Dia. | 18 CM | ||
Thickness of Mould | 150-220 mm | ||
Width of Mould Board | 303 mm | ||
Distance of Mould Board | 230 mm | ||
Production Speed | 200-300 PCS/HR | ||
Applicable Raw Material | HDPE/LDPE/PP | ||
Distance of Mold | 160-500 mm | ||
Force of Closing Mold | 60 KN | ||
Machine Parameters | Screw Dia. | 75, 80, 90 mm | |
Screw Rod Length/Dia. Ratio | 25:1 | ||
Speed Control Method | PLC | ||
Energy Consumption | Heating Power | 15 KW | |
Hydraulic Pump Power | 4.5 KW | ||
Extruder Motor Power | 18.5 KW | ||
Air Consumption | 0.6 m3/Min. | ||
Machine Dimension and weight | Dimension | 1960x1180x1960mm | |
Weight | 4.5 Ton | ||
