15KW Rotary Blow Molding Machine

1 set
15KW Rotary Blow Molding Machine
Features Gallery Product Description Request A Quote
Name: 250ml, 500ml, 1L HDPE Milk Bottle, Yogurt Bottle Blow Machine, Blow Molding Machine
Screw Diameter: 55mm
Output: 40kg/h
Power: 15kW
Weight: 1.5t
Screw L/D Ratio: 25
High Light:

250ml Bottle Blowing Machine


Bottle Blowing Machine 40kg/h


15KW Rotary Blow Molding Machine

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO
Model Number: SQ-6
Payment & Shipping Terms
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets/month
Product Description
Product Name
250ml, 500ml, 1L HDPE Milk Bottle, Yogurt Bottle Making Machine, Blow Molding Machine
Product Description

HDPE bottle Machine-Automatic blowing machine

This is full automatic hdpe bottle blowing machine, it could achieve auto cutting up bubble and below waste automatically.
Ice lolly tube Blowing Machine is the rotary type machine. This type machine is pneumatic powered, it consist of two parts: extruder and blower; Extruder produce plastic parison and blower blow and finish the product. This machine is succesfully designed and operated more than 20 years and keep on upgrading. So far, our rotary machine is the best machine.
Product Max. Volume
800ML, 1000ML need to special ordered
Production Speed
For ice lolly More than 2500 PCS/HR
Rotary Working Stations
4, 6, 8, 10, 12
Product Weight
The weight can be adjusted
Air Pressure
0.4-0.6m3/Min 8KG
Extruder Screw Size
Extruder Heating Power
9 KW
Extruder Motor Power
7.5 KW
Rated Power
15 KW
1500 KG

Separate Style Blow Molding Machine

The blower and extruder is separate machine, it could be worked together.

Connected Type Blow Molding Machine

Connected Style means the blower and extruder is one machine.

PLC Type Rotary Blowing Machine

This type of blowing machine equipped with PLC control system. The temperature controller and inverter system are build in PLC system, which could be directly controlled by touch screen. The functions is same between connected type and PLC type.
Die Head and Filter
The die head could extrude material parison, inside installed with die core and die cup. Each type of bottle needs to use different types of the die core and cup.
So, please order the suitable die core and cup for different types of product.
Control Buttons on Extruder
The temperature could be controlled by the temperature controller.
The ammeter could monitor if the heating parts are working properly.
The inverter could help to adjust extrude the material speed.
Rotary Part of Machine
Rotary part of machine could be worked with different sizes of extruders.
The rotary stations could be 4, 6, 8. The 6 stations is the most hot sale type of machine, because it works well speed for ice lolly products. If you need produce HDPE type bottles, such as milk or yogurt bottles, you could choose 8 molds to be more high production capacity.

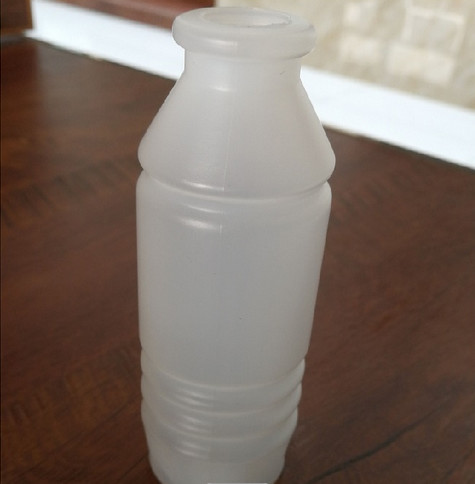

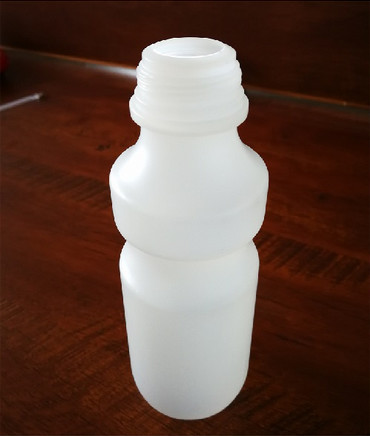

  • Products Produced by Blowing Machine

The ice lolly tube product could be customized by each customer, normally it has 45ml, 80ml, 90ml.
It could be marked with customer requested LOGO, ingredients or production period.
The shape could also be varied based on customer requirement.
Molds are produced follow customer requirement. Each pair of molds need to be ordered separately with machine.
Our company could produce molds also, after the machine produced, it will be tested immediately.
The molds are made of the high carbon mold steel, it could last for 10 years of working time.
Detailed Images
Different shapes of jelly or ice lolly could be produced based on customer requirement. We have accumulated many shapes of jelly shapes for the past 20 years, we could provide customer for selection. We also could modify the volume for the product.
15KW Rotary Blow Molding Machine 0
15KW Rotary Blow Molding Machine 1
