7.5KW 4 Station PP Small Plastic Blow Molding Machine 1000ml
|Place of Origin:||Hebei, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Angle frame with outside wooden case|
|Delivery Time:||45 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||50 sets/month|
|Name:||Small Plastic HDPE Bottle Making Machine Price Pakistan, Blow Molding Machine||Voltage:||220V/380V|
|Plastic Processed:||PP, PE||Warranty:||1 Year|
7.5KW small plastic blow molding machine,
4 station pp blow molding machine,
small plastic blow molding machine 1000ml
Small Plastic HDPE Bottle Making Machine Price Pakistan, Blow Molding Machine
6 molds machine. can use more than 10 years.

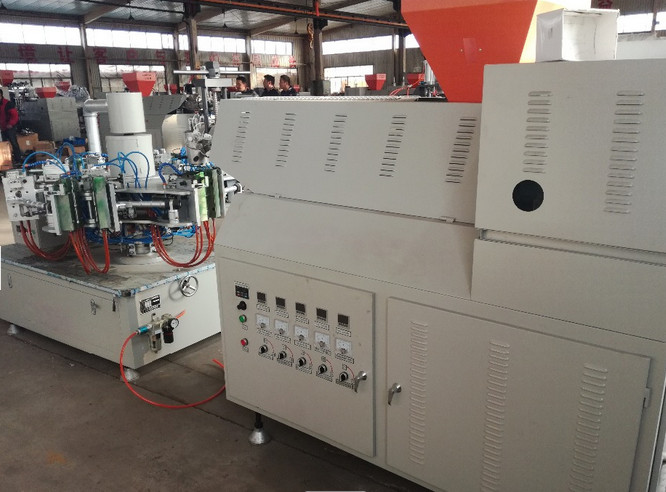

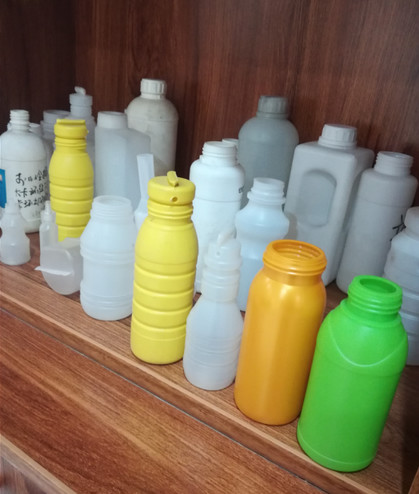

SQ-6 type is a kind of blow molding machine which adopts screw extrusion plastic blowing technology. This machine is suitable for the granular material of LDPE, HDPE and PP. It is best for producing less than 1L plastic hollow products, including bottles for medicine, juice, jelly, ice pop, beverage cosmetics and etc. The rotation type is our company’s self-developed machine, and keeps upgrading.
1. Rotation type blow molding machine is our company’s self-developed machine, and keep upgrading. More than 15 years manufacturing experience, good feedback from market.
2. Our machine adapts most famous brand parts, like Zhejiang zhoushan screw, HOLIP frequency converter, OMRON or DEXILI parts and etc.
3. Sanqing’s Lathe machines are company owned. All the parts are produced by our company in house.the machine’s precise capability could reach 0.01-0.02mm.This character ensured the parts are with high precision and machine could run very smoothly.
4. High capacity, this machine can run continuously 24 hours a day.
5.It will be better to work with the cutting bottle mouth machine when you produce HDPE bottle .
Main Technical Parameters:
|Model||4 station combine model 45/55||6 station combine model 55/65||8 station combine model 65/75|
|Max bottle volume||1000||1000||1000|
|Max bottle diameter||7||8||9|
|Mould size mm||120*120*300||120*120*300||120*120*300|
|Screw L/D ratio||25:1|
|Applicable raw material||PE/PP/PVC|
|Speed regulation method||Frequency control of motor speed|
