Product Details:

Place of Origin: Cangzhou, Hebei
Brand Name: Sanqing
Certification: CE
Model Number: SQ-11

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: Wooden Case
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 50 SET/Month
Get Best Price Contact Now

Detail Information

Title: 5L Jerry Can Blow Molding Machine + Automatic Labeling Manufacturer Neck Diameter: 100mm
Max Bottle Height: 1000mm Max Bottle Diameter: 500mm
Clamping Force: 4kN Hydraulic Motor Power: 5.5 KW
Screw L/D Ratio: 25:1 Power: 22kW
High Light:

4kN Jerry Can Blow Molding Machine

,

5l blow molding machine 22KW

,

5l blow molding machine 50kg/H

Product Description

Product Name



5L Jerry Can Blow Molding Machine + Automatic Labeling Manufacturer


Equipment introduction:

1: Our Machine is controlled by PLC system, the operation is stable.

2: The Machine could produce Max. 5L bottles and bottles below 5L.

3: If customer would like to arrange high output production, we are able to produce 2, 3, 4 cavities per mold, but the bottle diameter should be         smaller.

4: The material suitable for this machine is HDPE/LDPE/PP.

5: The machine could operate automatically without operator attention.

Product features:

1, This machine is powered by hydraulic power, the big power of molds action is good for producing good products.

2, The machine is stable operation, the machine could operate without people attention.

3, The machine could equipped with parison controller, the thickness of the product could be controlled.

Specification
SPECIFICATIONS FOR BLOW MOLDING MACHINE
Max. Product Size
10cm
Screw Dia.
65mm
Theoretical Production Capacity
800-1000 pcs/h
Screw Length/Dia. Rate
25:1
Die Heads
2
Plasticizing Rate
50kg/H
Air Consumption
0.5-0.6m³min
Motor Power
11kw
Raw Material
PE/PP
Heating Power
11kw
Weight
1300 kg
Main Machine Size
3400x2100x2200mm
Speed Regulating Method
PLC control

Mold Board Width
34mm

Mold Board Distance
35mm

Mold Board Height
32.6mm

Oil Pump Motor
5.5kw


Details Images

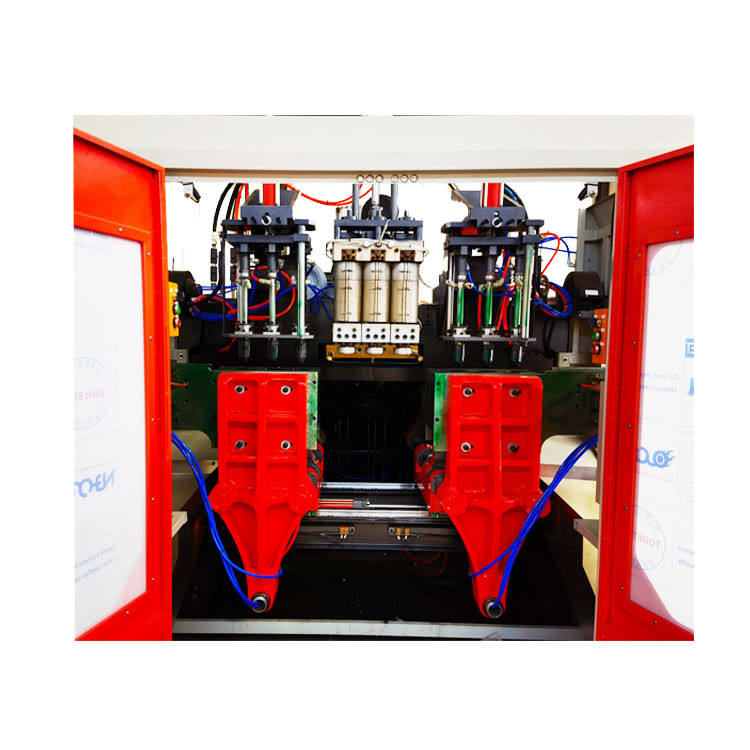

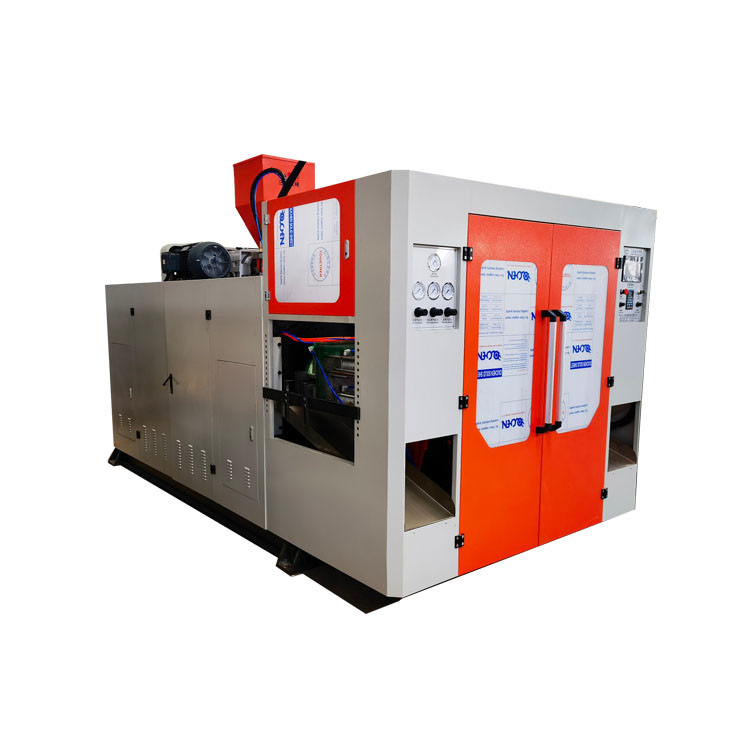

5 Liter 4kN Jerry Can Blow Molding Machine 50kg/H 22KW 0

5 Liter 4kN Jerry Can Blow Molding Machine 50kg/H 22KW 1






5 Liter 4kN Jerry Can Blow Molding Machine 50kg/H 22KW 2
