Servo HDPE Full Automatic Blow Molding Machine High Speed Six Molds

Servo HDPE Full Automatic Blow Molding Machine High Speed Six Molds

Product Details:

Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO
Model Number: SQ-SF-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets/month
Get Best Price Contact Now

Detail Information

Name: Full Servo Full Automatic High Speed Six Molds Blow Molding Machine Warranty: 1 Year
Application: Bottle, Laundry Detergent Bottels Plastic Processed: HDPE/PP/TPU/EVOH/EVA
PLC Brand: Siemens After Warranty Service: Video Technical Support
High Light:

hdpe full automatic blow molding machine

,

servo full automatic blow molding machine

,

servo high speed blow molding machine

Product Description

Product Name
Full Servo Full Automatic High Speed Six Molds Blow Molding Machine

Product Description

Every innovation in the industry brings in the new techniques, new methods in producing, new machines and new talents for the altimate changes. Have you prepared for the change coming?

Changing the old thoughts on how the blow molding machines work, the unique rotary machine is one of the greatest in the world. Not only with beautiful appearances design, but also with the great output for the hollow products from 300ml to 30L.

Don't hesitate to contact us for more infos.

HDPE bottle Machine-Automatic blowing machine

This is full automatic hdpe bottle blowing machine, it could achieve auto cutting up bubble and below waste automatically.



Item
Value
Product Max. Volume
800ML, 1000ML need to special ordered
Production Speed
For ice lolly More than 2500 PCS/HR
Rotary Working Stations
4, 6, 8, 10, 12
Product Weight
The weight can be adjusted
Air Pressure
0.4-0.6m3/Min 8KG
Extruder Screw Size
55mm
Extruder Heating Power
9 KW
Extruder Motor Power
7.5 KW
Rated Power
15 KW
Weight
1500 KG


Separate Style Blow Molding Machine

The blower and extruder is separate machine, it could be worked together.



Separate Style Blow Molding Machine

The blower and extruder is separate machine, it could be worked together.


Connected Type Blow Molding Machine

Connected Style means the blower and extruder is one machine.




Molds

Molds are produced follow customer requirement. Each pair of molds need to be ordered separately with machine.

Our company could produce molds also, after the machine produced, it will be tested immediately.

The molds are made of the high carbon mold steel, it could last for 10 years of working time.



Detailed Images
Different shapes of jelly or ice lolly could be produced based on customer requirement. We have accumulated many shapes of jelly shapes for the past 20 years, we could provide customer for selection. We also could modify the volume for the product.



Servo Motor
Mitsubishi Brand
PLC System
Mitsubishi Brand
Parison Controller
MOOG Brand
Motor
Siemenz
Air Cylinder
SMC
Servo HDPE Full Automatic Blow Molding Machine High Speed Six Molds 0
Servo HDPE Full Automatic Blow Molding Machine High Speed Six Molds 1
Servo HDPE Full Automatic Blow Molding Machine High Speed Six Molds 2
Servo HDPE Full Automatic Blow Molding Machine High Speed Six Molds 3
Servo HDPE Full Automatic Blow Molding Machine High Speed Six Molds 4
Rotating Table
This Rotating table is six stations, each station install a mold; It could be blowed separately.

The moving process and molds actions are done by servo motors.
  • Description of application effect

  • 使用效果描述

Clamping force 5 Tons, which could produce very good outlooking and smooth surface for the bottles.
Servo HDPE Full Automatic Blow Molding Machine High Speed Six Molds 5
Servo HDPE Full Automatic Blow Molding Machine High Speed Six Molds 6

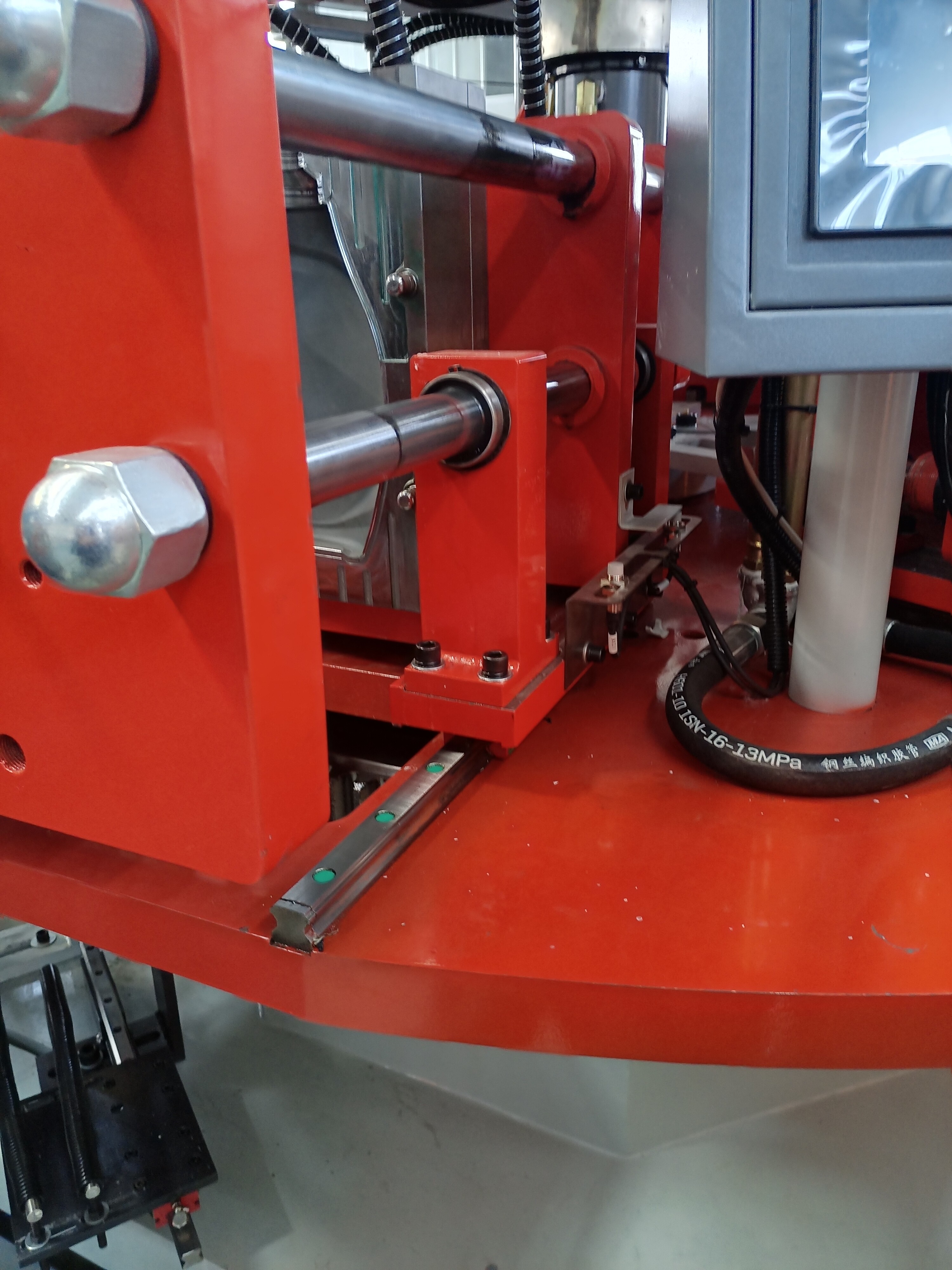

The mold is moved on the rail, which could be more smooth and long lasting.

Our company could produce molds according to customer needs.
Servo HDPE Full Automatic Blow Molding Machine High Speed Six Molds 7
After the bottle has been produced, it will be transfered to the deflashiing device automatically. Each bottle will be delivered with finished end product.
