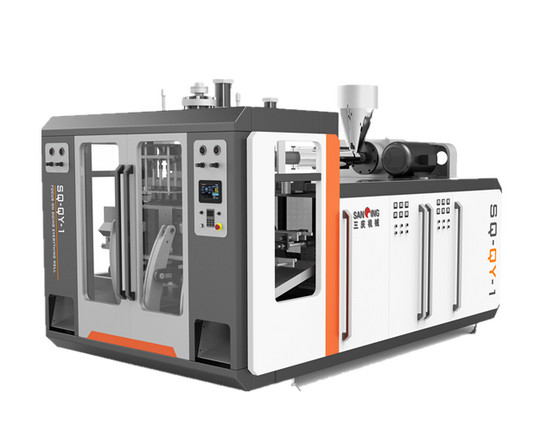

2 Cavities Double Station Fully Automatic Blowing Machine
Product Details:
| Place of Origin: | Hebei, China |
| Brand Name: | Sanqing |
| Certification: | CE ISO |
| Model Number: | SQ-11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Angle frame with outside wooden case |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Name: | 2 Cavities Double Station Blow Molding Machine | Condition: | New |
|---|---|---|---|
| Weight: | 3500kg | Power: | 15kW |
| Warranty: | 1 Year | Voltage: | 380V 50Hz 3PH Or Customized |
| High Light: | double station fully automatic blowing machine,2 cavities fully automatic blowing machine,double station blow molding machine |
||
Product Description
Name
2 Cavities Double Station Blow Molding Machine
Production capacity 2000 pcs to 2500 pcs(ocean balls) per hour
Full-automatic Double heads double workstation: 6 TO 8 cavity
The ball sizes are from 50 to 80mm, the weight from 3 to 12grams.
Average working Power: (15KW/H)

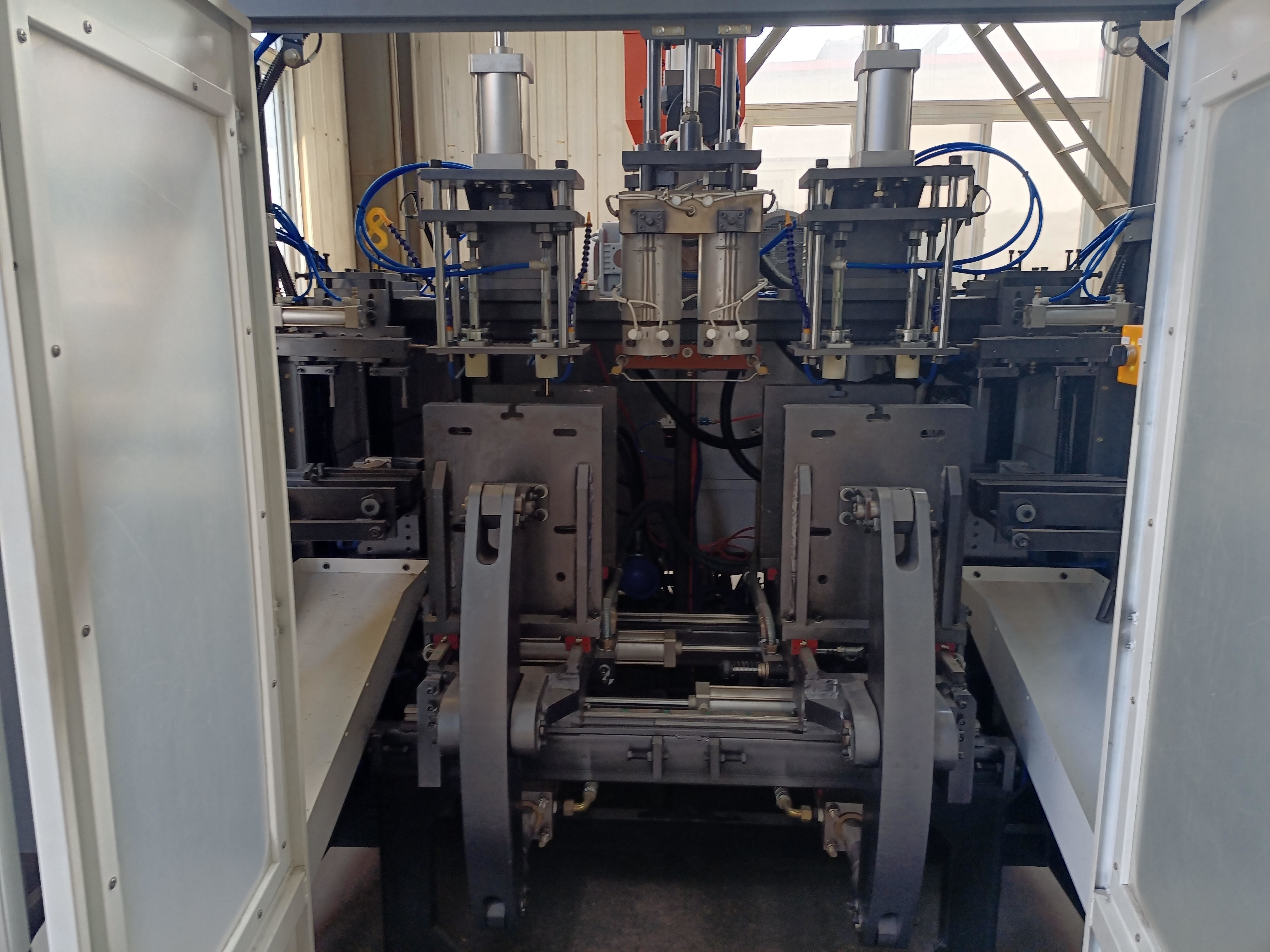

This Machine is a Hydraulic system to close molds and a pneumatic system to move molds. It also has an unattached electric cabinet, PLC computer control, easy to operate. This machine also finished the product and Stripped automatically, no need people.
1,Screw Diameter) : 65mm
2, (L/D ratio) : 25:1
3, (Motor Power) : 15kw
4, (Screw Speed) :20-60r/min
5,(Max. Plasticizing capacity) : 60kg/h
6, (No. of die head) :2
7, (Distance of die head center) :110mm
8, (Max. Clamping force) :35KN
9, (Working Pressure) :0.6-0.8Mpa
10, (Max. bottle volume) :3000ml
11, (Weight):3500kg
12, (Way of control):(PLC computer control)
13, (Way of control speed):(Frequency control)
14,(Size):L*W*H=2.5M*2.1M*1.7M)
15,(Average Power): (15KW/H)
Full Automatic Seaball Blowing Machine:
