CE Sanqing 170ml Jerry Can HDPE Blow Molding Machine 65/75

1 set
MOQ
CE Sanqing 170ml Jerry Can HDPE Blow Molding Machine 65/75
Features Gallery Product Description Request A Quote
Features
Specifications
Name: HDPE 170ml ,250ml 300ml Plastic Juice Medine Bottle Making Machine/6 Molds Rotary Blow Molding Machine
Voltage: 220V/380V
Power: 11kW
Automatic: Yes
Dimension: 3600*1700*1800mm
Weight: 2t
High Light:

170ml bottle HDPE Blow Molding Machine

,

HDPE jerry can blow molding machine

,

jerry can blow molding machine 65/75

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO9001
Model Number: SQ-6
Payment & Shipping Terms
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets/month
Product Description

Product Name

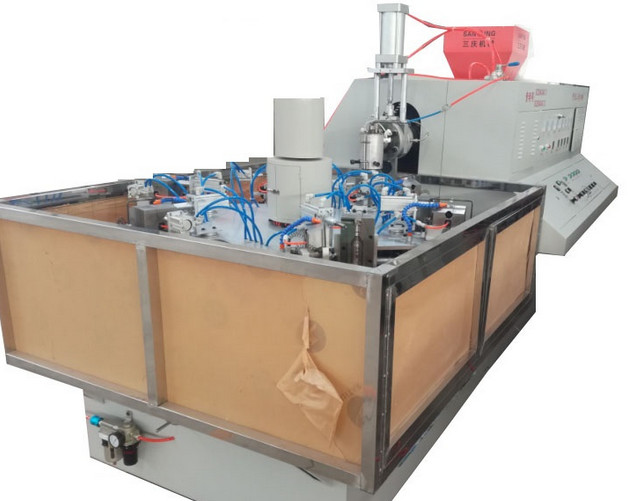

HDPE 170ml ,250ml 300ml Plastic Juice Medine Bottle Making Machine/6 Molds Rotary Blow Molding Machine



Product Description

Application:

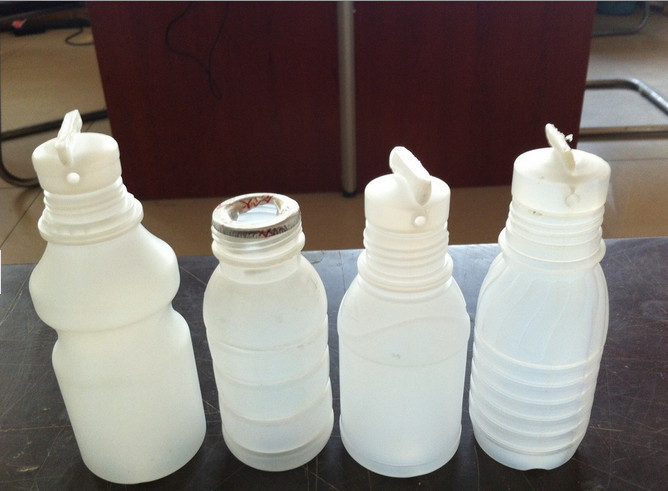

SQ-6 type is a kind of blow molding machine which adopts screw extrusion plastic blowing technology. This machine is suitable for the granular material of LDPE, HDPE and PP. It is best for producing less than 1L plastic hollow products, including bottles for medicine, juice, jelly, ice pop, beverage cosmetics and etc. The rotation type is our company’s self-developed machine, and keeps upgrading.

SQ-6 type is optional to install automatic tailing device, automatic filter changer and automatic mouth-cutting device.



Characteristics:

1. Rotation type blow molding machine is our company’s self-developed machine, and keep upgrading. More than 15 years manufacturing experience, good feedback from market.

2. Our machine adapts most famous brand parts, like Zhejiang zhoushan screw, HOLIP frequency converter, OMRON or DEXILI parts and etc.

3. Sanqing’s Lathe machines are company owned. All the parts are produced by our company in house.the machine’s precise capability could reach 0.01-0.02mm.This character ensured the parts are with high precision and machine could run very smoothly.

4. High capacity, this machine can run continuously 24 hours a day.

5.It will be better to work with the cutting bottle mouth machine when you produce HDPE bottle .



Main Technical Parameters:

Model 4 station combine model 45/55 6 station combine model 55/65 8 station combine model 65/75
Max bottle volume 1000 1000 1000
Max bottle diameter 7 8 9
Mould size mm 120*120*300 120*120*300 120*120*300
Screw diameter 45/55 55/65 65/75
Screw L/D ratio 25:1
Motor power 5.5/7.5 7.5/11 11/15
Heating power 3 5 8
Air consumption 0.4
Plasticizing capacity 25/40 40/55 55/75
Weight 1500 2000 2500
Size mm 3400*1600*1740 3600*1700*1800 3800*1800*1900
Applicable raw material PE/PP/PVC
Speed regulation method Frequency control of motor speed
Theoretical output 1000-6000

hdpe 170ml ,25ml 300 ml plastic juice medine  bottle making machine/6 molds rotary blow molding machine
