PLC Type Rotary Automatic Blow

PLC Type Rotary Automatic Blow

Product Details:

Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO9001
Model Number: SQ-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets/month
Get Best Price Contact Now

Detail Information

Name: Automatic Plastic Bottle Blowing Machine For LDPE Or HDPE Product Screw Diameter: 55mm
Extruder Motor Power: 7.5kW Weight: 1.5t
Automatic: Yes Key Selling Point: Long Service Life
High Light:

1000ML Automatic Bottle Making Machine

,

PLC Type Rotary automatic blow

,

hdpe molding machine 1500 KG

Product Description

Product Name

Automatic Plastic Bottle Blowing Machine For LDPE Or HDPE Product



Product Description
Ice lolly tube Blowing Machine is the rotary type machine. This type machine is pneumatic powered, it consist of two parts: extruder and blower; Extruder produce plastic parison and blower blow and finish the product. This machine is succesfully designed and operated more than 20 years and keep on upgrading. So far, our rotary machine is the best machine.
Item
Value
Product Max. Volume
800ML, 1000ML need to special ordered
Production Speed
For ice lolly More than 2500 PCS/HR
Rotary Working Stations
4, 6, 8, 10, 12
Product Weight
The weight can be adjusted
Air Pressure
0.4-0.6m3/Min 8KG
Extruder Screw Size
55mm
Extruder Heating Power
9 KW
Extruder Motor Power
7.5 KW
Rated Power
15 KW
Weight
1500 KG

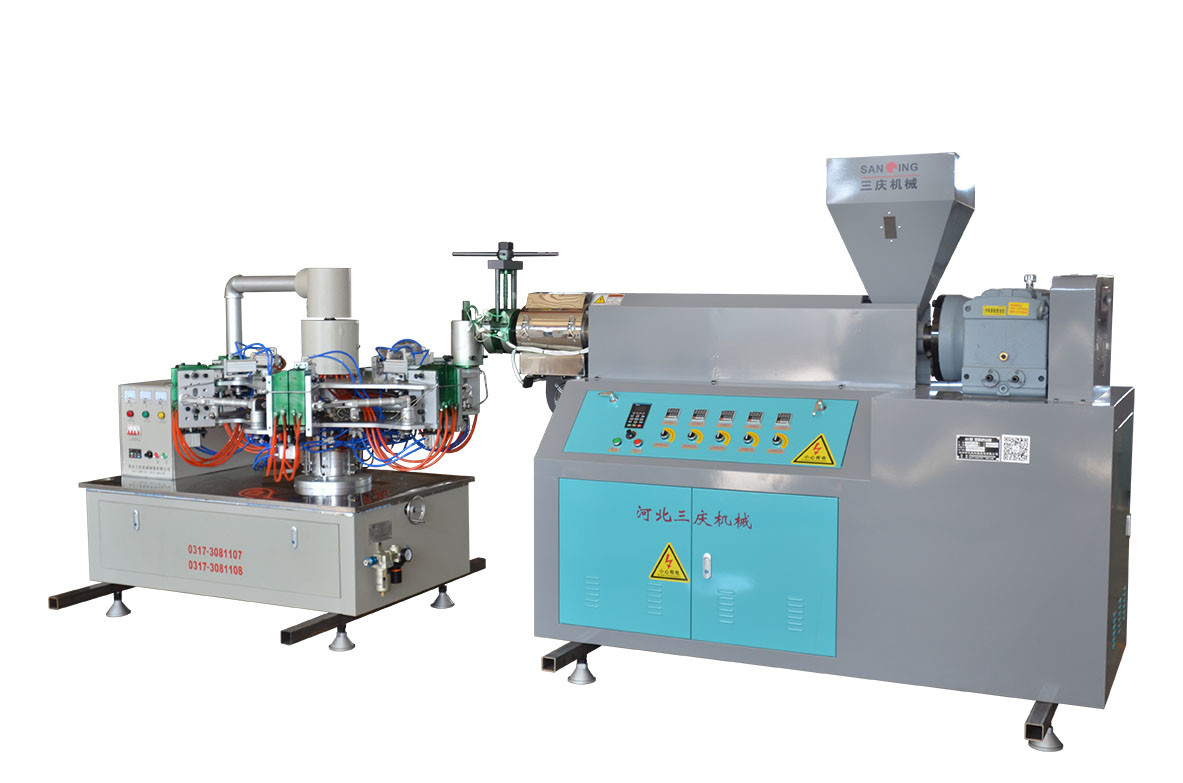

Separate Style Blow Molding Machine

The blower and extruder is separate machine, it could be worked together.


Connected Type Blow Molding Machine

Connected Style means the blower and extruder is one machine.


PLC Type Rotary Blowing Machine

This type of blowing machine equipped with PLC control system. The temperature controller and inverter system are build in PLC system, which could be directly controlled by touch screen. The functions is same between connected type and PLC type.
