Plastic Ldpe 60kg/H Ball Blowing Machine Automatic

1 set
MOQ
Plastic Ldpe 60kg/H Ball Blowing Machine Automatic
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Automatic Plastic LDPE Ball Pits Balls Sea Ball Making Machine, Extrusion Blow Molding Machine
Clamping Force: 65kN
Output: 60kg/h
Screw Diameter: 75mm
Power: 18kW
Weight: 4t
High Light:

ldpe ball blowing machine

,

60kg/h ball blowing machine

,

ldpe automatic extrusion blow molding machine

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO9001
Model Number: SQ-11
Payment & Shipping Terms
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets/month
Product Description

Name

Automatic Plastic LDPE Ball Pits Balls Sea Ball Making Machine, Extrusion Blow Molding Machine



Product Description
whatsapp wechat : 008615530731271 ; william_sanqing@126.com

Production capicity 2000 pcs to 2500 pcs per hour

Double heads double workstation : 6 TO 8 cavity

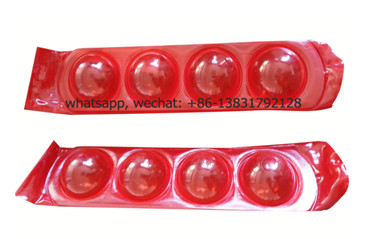

The ball sizes from 50mm to 80mm,the weight from 3grams to 12grams.

Average working Power: (15KW/H)

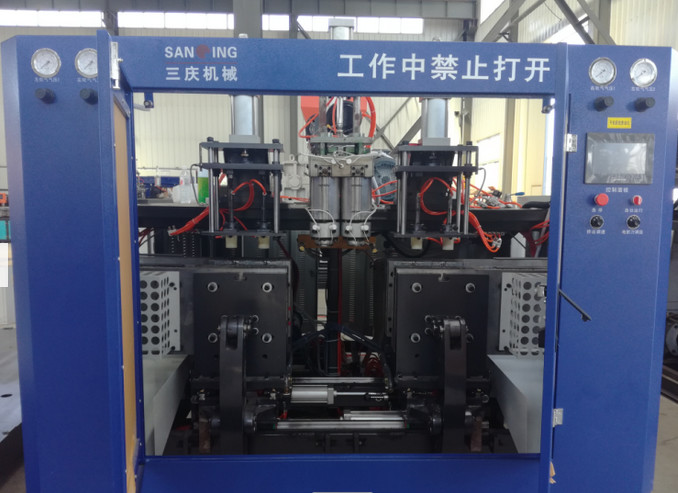

This Machine is Hydraulic system to close molds and pneumatic system to move molds. It also has unattached electric cabinet ,PLC computer control, easy to operate. This machine also finished the product and Stripping automatically, no need people .

1,Screw Diameter) : 65mm

2, (L/D ratio) : 25:1

3, (Motor Power) : 15kw

4, (Screw Speed) :20-60r/min

5,(Max. Plasticizing capacity) : 60kg/h

6, (No. of die head) :2

7, (Distance of die head center) :110mm

8, (Max. Clamping force) :35KN

9, (Working Pressure) :0.6-0.8Mpa

10, (Max. bottle volume) :3000ml

11, (Weight):3500kg

12, (Way of control):(PLC computer control)

13, (Way of control speed):(Frequency control)

14,(Size):L*W*H=2.5M*2.1M*1.7M)

15,(Average Power): (15KW/H)

Full Automatic Seaball Blowing Machine:





automatic Plastic LDPE ball  pits Balls  sea ball making machine,extrusion blow molding machineautomatic Plastic LDPE ball  pits Balls  sea ball making machine,extrusion blow molding machine





Semi-automatic Seaball Blowing Machine(Cheaper):



Packaging & Shipping

We pack machines by steel frame and closed by wood frame. It is very strong packing, the machine will not be broken.
