0.8MPa Rotary Blow Molding Corrugated Pipe Machine 0.6m3/Min 1400kg

1 set
MOQ
0.8MPa Rotary Blow Molding Corrugated Pipe Machine 0.6m3/Min 1400kg
Features Gallery Product Description Request A Quote
Features
Specifications
Name: High Quality Blow Molding Machine For PE Long Pipes, Washing Machine Drain Pipes
Output: 70kg/h
Theoretical Output: 600-800pcs/h
Warranty: 12 Months
Air Pressure: 0.8MPa
Air Comsumption: 0.6m³/min
High Light:

0.8MPa Corrugated Pipe Machine

,

rotary blow molding machine 1400kg

,

rotary blow molding machine 0.6m3/min

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO9001
Model Number: SQ-9
Payment & Shipping Terms
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets/month
Product Description
Name
High Quality Blow Molding Machine for PE Long Pipes, Washing Machine Drain Pipes



Product Description

1: plast pipe extrusion blow molding machine

2: raw material : PE/PP plastic pipe

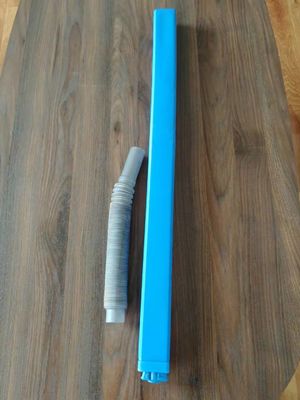

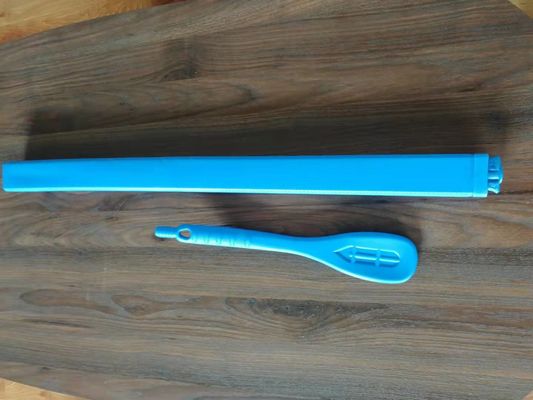

3: for example: sewer tube, washing machine tube and seeding machine tubes

4: length : max.1m

5: rotary double working stations, high stable

6: 700-1000PCS/H

7: CE certificate

8: uniform wall thickness



Parameter



ITEM PARAMETER
the length of the product mm 800-1100
the quantity of the mould head 1
the quantity of the mould 2
production capacity 700-800
screw diameter mm 65
L/D screw L/D 25:1
the max quantity of extrusion HDPE kg/h 55
mould-locking type pneumatic
the max mould dimension 140×100×1200
blowing pressure mpa 0.4-0.6
gas consumption m3/min 0.3
cooling pressure Mpa 0.2-0.3
the electric power of the extruder machine KW 11
The heating power of the extruder machine KW 9.5
L*W*H mm 3400×1400×2200
weight KG 1400
the suitable raw material PE/PP


washing machine drain pipe blow moulding machine
