2 Cavity PE Dia 18cm Cans 5 Ltr Blow Moulding Machine 0.6m3/Min

1 SET
MOQ
2 Cavity PE Dia 18cm Cans 5 Ltr Blow Moulding Machine 0.6m3/Min
Features Gallery Product Description Request A Quote
Features
Specifications
Title: 5L Jerry Cans Blow Molding Machine
Motor Power: 18.5 KW
Heating Power: 15 KW
Max. Product Volume: 5L
Screw Dia.: 75mm
Hydraulic Motor Power: 5.5 KW
Screw L/D Ratio: 25:1
Max. Product Dia.: 18 CM
Mold Thickness: 150-220
Mold Board Distance: 230
Raw Material: PE/PP
Air Consumption: 0.8 M3/min
Air Pressure: 8KG
Cooling Water: The Water Cycle In System
High Light:

dia 18cm cans 5 ltr blow moulding machine

,

5 ltr blow moulding machine 0.6m3/Min

,

2 cavity PE blowing machine 118.5kw

Basic Infomation
Place of Origin: Cangzhou, Hebei
Brand Name: Sanqing
Certification: CE
Model Number: SQ-11
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 50 SET/Month
Product Description

                                                                               5L Bottles Cans Blow Molding Machine


Equipment introduction:

1: Our Machine is controlled by PLC system, the operation is stable.

2: The Machine could produce Max. 5L bottles and bottles below 5L.

3: If customer would like to arrange high output production, we are able to produce 2, 3, 4 cavities per mold, but the bottle diameter should be         smaller.

4:The material suitable for this machine is HDPE/LDPE/PP.

5: The machine could operate automatically without operator attention.

Product features:

1, This machine is powered by hydraulic power, the big power of molds action is good for producing good products.

2, The machine is stable operation, the machine could operate without people attention.

3, The machine could equipped with parison controller, the thickness of the product could be controlled.



SPECIFICATIONS FOR 5 L Blow Molding Machine

Product Range
Max. Product Volume
5 L

Product Max. Dia.
18 CM
Thickness of Mould
150-220 mm
Width of Mould Board
303 mm
Distance of Mould Board
230 mm
Production Speed
200-300 PCS/HR
Applicable Raw Material
HDPE/LDPE/PP
Distance of Mold
160-500 mm
Force of Closing Mold
60 KN

Machine Parameters
Screw Dia.
75, 80, 90 mm
Screw Rod Length/Dia. Ratio
25:1
Speed Control Method
PLC
Energy Consumption
Heating Power
15 KW
Hydraulic Pump Power
4.5 KW
Extruder Motor Power
18.5 KW
Air Consumption
0.6 m3/Min.

Machine Dimension and

weight
Dimension
1960x1180x1960mm
Weight
4.5 Ton

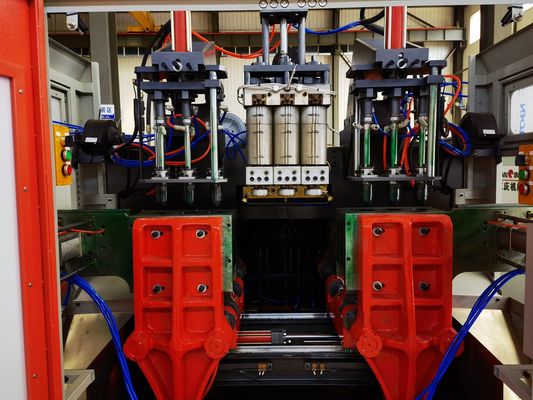

2 Cavity PE Dia 18cm Cans 5 Ltr Blow Moulding Machine 0.6m3/Min 0

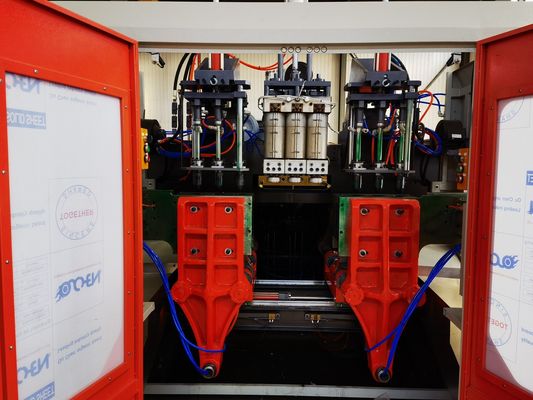

2 Cavity PE Dia 18cm Cans 5 Ltr Blow Moulding Machine 0.6m3/Min 1

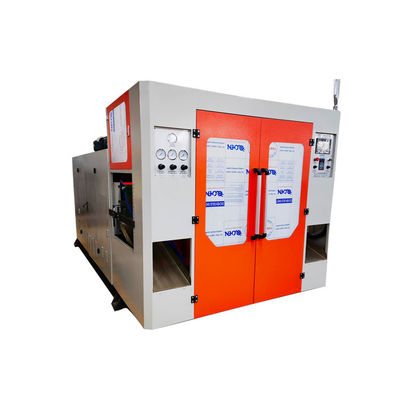

2 Cavity PE Dia 18cm Cans 5 Ltr Blow Moulding Machine 0.6m3/Min 2
