Rotary 8 Station 800ML Hdpe Bottle Manufacturing Machine 15KW

1 set
MOQ
Rotary 8 Station 800ML Hdpe Bottle Manufacturing Machine 15KW
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Blow Molding Machine, Automatic Hdpe Bottle Extrusion Blow Molding Machine
Plastic Processed: PP, LDPE, HDPE
Voltage: 380V
Place Of Origin: Hebei, China
Condition: New
Power: 8kW
High Light:

800ML hdpe blow molding machine

,

hdpe bottle manufacturing machine 15KW

,

8 station hdpe blow molding machine

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Sanqing
Certification: CE ISO9001
Model Number: SQ-6
Payment & Shipping Terms
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets/month
Product Description

Product Name

Blow Molding Machine, Automatic Hdpe Bottle Extrusion Blow Molding Machine



Product Description

Factory supply ice lolly ice pop ice tube ice stick ice candy bottles blowing machine

In case customer needs different weight of product, our machine have device to adjust weight follow customer requirement.

Our rotational machine is the fastest machine to produce LDPE products, because our machines are using 4 molds, 6 molds, 8 molds, 10 molds, 12 molds to produce at the same time. The production capacity of 6 molds machine could reach 3000 pieces per hour.



We provide different level of price to cater customer demand, we have connected type(extruder and blower), separate type(extruder and blower not connected), full automatic type, semi-automatic type of machines. We also have devices to de-flashing the waste part of bottle.

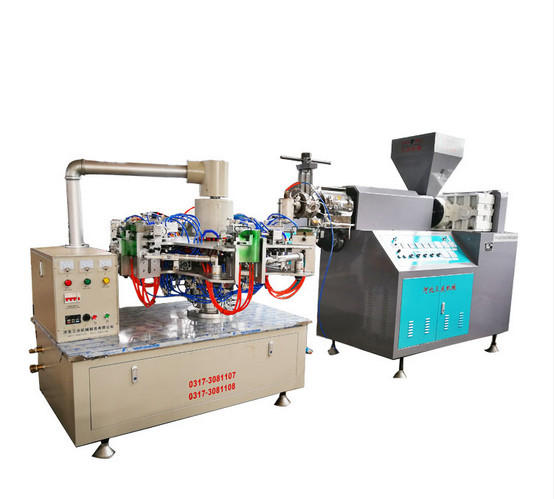

Ice lolly tube Blowing Machine is the rotary type machine. This type machine is pneumatic powered, it consist of two parts: extruder and blower; Extruder produce plastic parison and blower blow and finish the product. This machine is succesfully designed and operated more than 20 years and keep on upgrading. So far, our rotary machine is the best machine.
Item
Value
Product Max. Volume
800ML, 1000ML need to special ordered
Production Speed
For ice lolly More than 2500 PCS/HR
Rotary Working Stations
4, 6, 8, 10, 12
Product Weight
The weight can be adjusted
Air Pressure
0.4-0.6m3/Min 8KG
Extruder Screw Size
55mm
Extruder Heating Power
9 KW
Extruder Motor Power
7.5 KW
Rated Power
15 KW
Weight
1500 KG


Separate Style Blow Molding Machine

The blower and extruder is separate machine, it could be worked together.
