60kg/H Ball Blowing Machine 3L Plastic Ball Manufacturing Machine 3500kg

1 set
MOQ
60kg/H Ball Blowing Machine 3L Plastic Ball Manufacturing Machine 3500kg
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Blow Molding Machine Making Plastic Balls Pit Balls, Ocean LDPE Ball For Children Pool Toy
Warranty: 1 Year
Weight: 3500kg
Application: Ocean Ball, Bottle
Dimension: 3.43*2.1*2.45m
Power: 15kW
High Light:

60kg/h Ball Blowing Machine

,

3L plastic ball manufacturing machine

,

plastic ball manufacturing machine 3500kg

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Sanqing

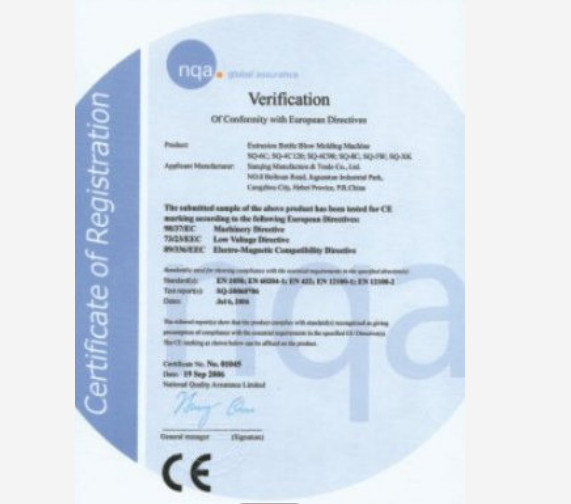

Certification: CE ISO
Model Number: SQ05
Payment & Shipping Terms
Packaging Details: Angle frame with outside wooden case
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets/month
Product Description

Name

Blow Molding Machine Making Plastic Balls Pit Balls, Ocean LDPE Ball For Children Pool Toy



Product Description

This Machine is Hydraulic system to close molds and pneumatic system to move molds. It also has unattached electric cabinet ,PLC computer control, easy to operate. This machine also finished the product and Stripping automatically, no need people .

1,Screw Diameter) : 65mm

2, (L/D ratio) : 25:1

3, (Motor Power) : 15kw

4, (Screw Speed) : 20-60r/min

5,(Max. Plasticizing capacity) : 60kg/h

6, (No. of die head) : 2

7, (Distance of die head center) : 110mm

8, (Max. Clamping force) : 35KN

9, (Working Pressure) : 0.6-0.8Mpa

10, (Max. bottle volume) : 3000ml

11, (Weight):3500kg

12, (Way of control):(PLC computer control)

13, (Way of control speed):(Frequency control)

            14,(Size):L*W*H=2.5M*2.1M*1.7M)

            15,(Average Power): (15KW/H)


Item
Parameters
Max. Product Volume
3L
Die Heads
1 or 2 die heads
Air Consumption
0.5-0.6m3/Min
Speed Control By
PLC system
Mold Board Width
34 CM
Mold Board Height
32.6CM
Mold Board Distance
35 CM
Power Consumption
25 KW

Our Services

Our engineers are available to service machinery overseas. We will provide technical support for your installation and operation. We can also send engineers to your country, if you need, for installing, debugging and operation of the machine. We warranty the quality of this machine for 12 months, if there is any problem with the machine, or any main parts are broken, we will repair it or replace new for free
